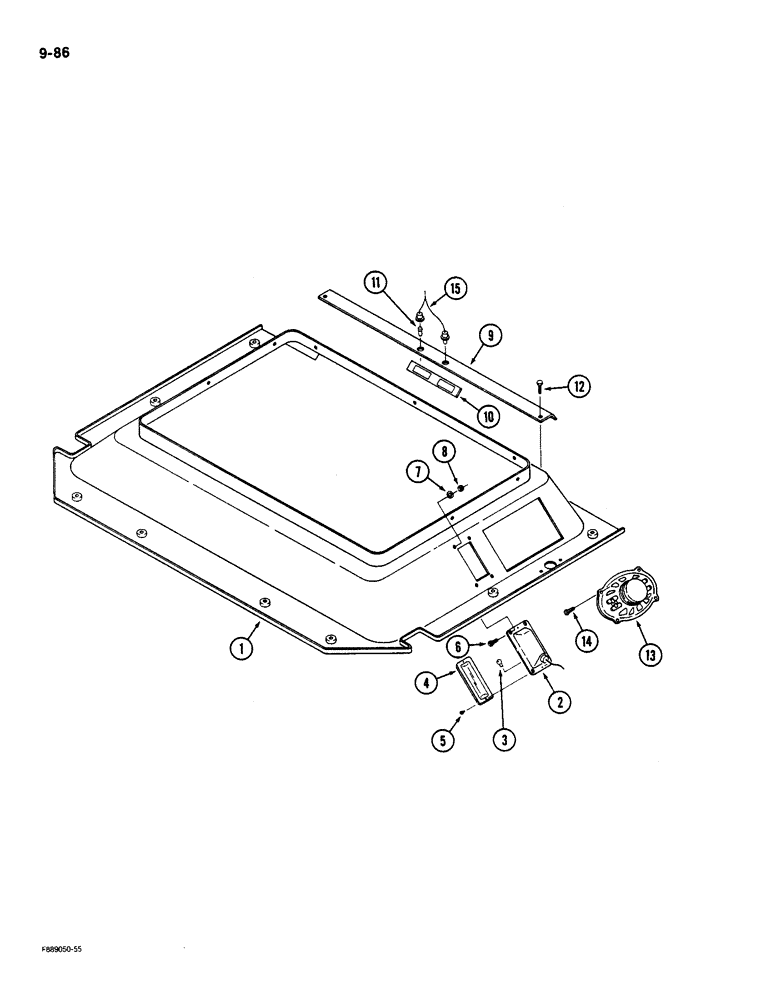

Запчасти Case IH 9180 (9-086) - HEADLINER CAB (09) - CHASSIS/ATTACHMENTS

1

60-5925T1

ROOF LINING

HEADLINER - cab

1шт.

2

1-9063T91

LIGHT

ASSEMBLY - dome, Includes: Ref. 3 - 5

1шт.

3

22-1146

BULB

- lamp, No. 1141

1шт.

4

1-9064

LENS

- dome light

1шт.

5

173-297

SCREW,Phil Rnd Hd, #8 - 32 x 1/4"

- machine, round head, No. 8 NC x 1/4 inch

2шт.

6

155893

SCREW,Cross Flat Hd, #8 - 32 x 5/8"

- machine, flat head, No. 8 NC x 5/8 inch

4шт.

7

446143

WASHER

- flat, 5/32 x 7/16 x 3/64 inch

4шт.

8

19-5621

LOCK NUT,#8-32, GB

NUT - lock, No. 8 NC

4шт.

9

60-4038T1

PLATE

- light mounting

1шт.

10

60-4029T1

LARGE PLATE

DIFFUSER PLATE - light

1шт.

11

20-1384T1

BULB

- lamp, No. 53

2шт.

12

9418998

SCREW,1/4" - 20 x 3/8", Gr 5

BOLT - hex, 1/4 NC x 3/8 inch

2шт.

13

60-5748T1

SPEAKER

- radio

2шт.

14

27093R1

SCREW

- machine, pan head, No. 10 NC x 5/8 inch

8шт.

15

REF

INSTRUCTION

HARNESS - overhead (See Fig. 4-8)

1шт.
