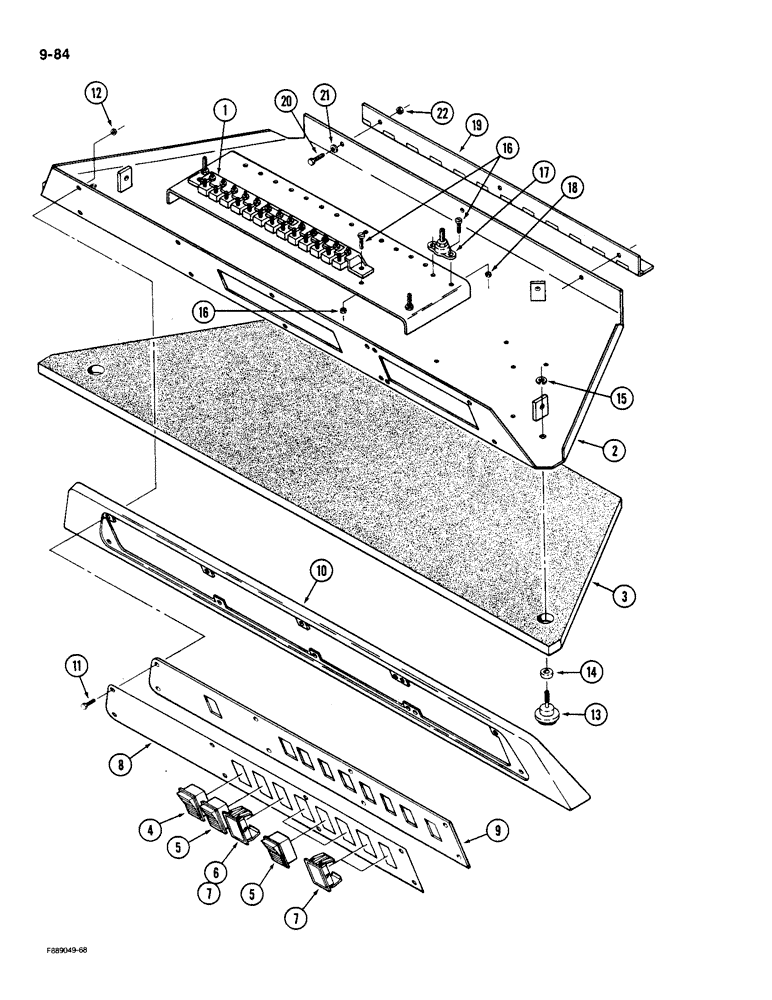

Запчасти Case IH 9180 (9-084) - OVERHEAD DOOR CAB (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BREAKER ASSEMBLY - circuit (See Fig. 4-12)

1шт.

2

60-4027T2

DOOR

- overhead, console

1шт.

3

60-5923T1

NOISE PROTECTION

PAD - insulation, door, gray

1шт.

4

1964752C1

SWITCH

- rocker, master light

1шт.

5

245012C1

SWITCH

- rocker, dome, front and rear outlet, and dash lights

4шт.

6

1964751C1

SWITCH

- rocker, ether start (Only used with ether start option)

1шт.

7

60-3210T1

PLUG

- switch hole

3шт.

8

60-5910T2

DECAL

- overhead (Gray interior and 8 rocker switch openings)

1шт.

9

60-4032T2

PANEL

- rocker switch

1шт.

10

60-5928T1

COVER

- console door, gray

1шт.

11

363-30812

SCREW,Hex Wash Hd, #8-32 x 3/4"

- machine, flanged head, No. 8 NC x 3/4 inch

8шт.

12

19-5621

LOCK NUT,#8-32, GB

NUT - lock, No. 8 NC

8шт.

13

60-4033T1

BUTTON

KNOB ASSEMBLY - console release

2шт.

14

19-6126

SPACER

- knob

2шт.

15

2-7333T1

WASHER

RING - snap, 3/16 inch

2шт.

16

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

- machine, pan head, No. 10 NF x 1/2 inch

4шт.

17

20-1451T1

BLOCK

JUNCTION BLOCK - electrical

1шт.

18

19-481

SERRATED NUT

- keps, No. 10 NF

4шт.

19

60-4034T1

HINGE

- console door

1шт.

20

9419000

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

SCREW - machine, hex, 1/4 NC x 1/2 inch

3шт.

21

19-105

WASHER,1/4", SAE

- flat, 1/4 x 47/64 x 1/16 inch

3шт.

22

25846R11

NUT - lock, 1/4 inch NC

3шт.
