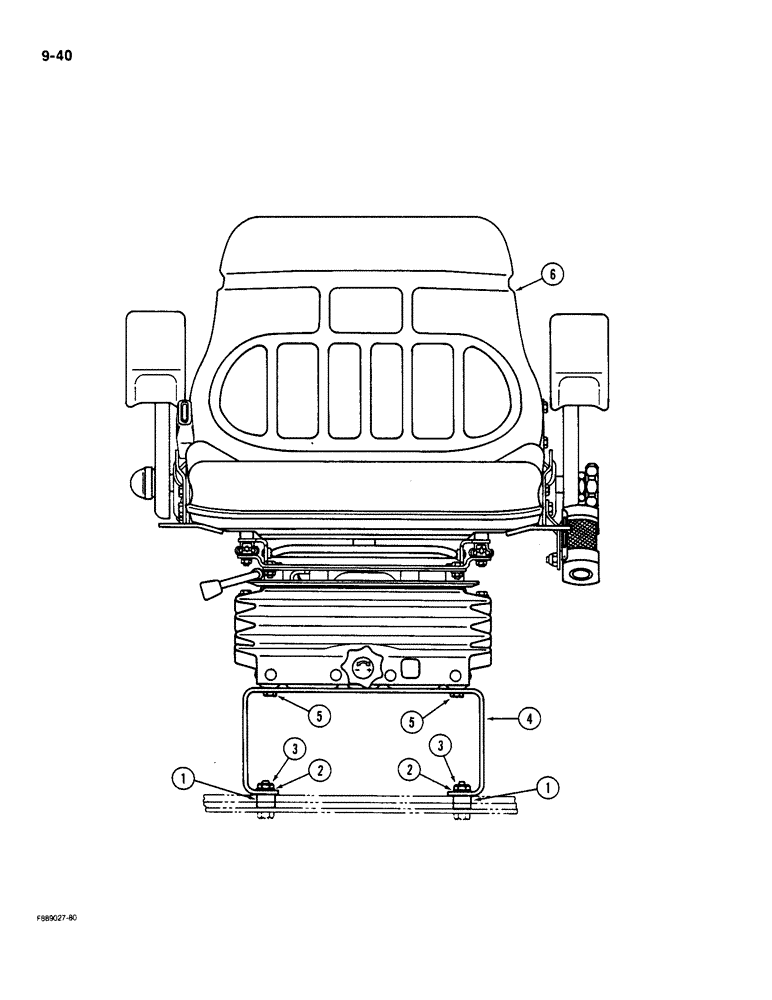

Запчасти Case IH 9180 (9-040) - SEAT MOUNTING MECHANICAL SUSPENSION SEAT ROPS (09) - CHASSIS/ATTACHMENTS

1

60-2286T1

SPACER

- seat mounting

4шт.

2

19-463

WASHER,1/2", SAE

- flat, 1/2 x 1-1/4 x 7/64 inch

4шт.

3

19-82

LOCK NUT

- lock, 1/2 inch NC

4шт.

4

60-4022T1

MOUNTING PARTS

MOUNT - seat

1шт.

5

40-1090

CAPSCREW,Hex, M8 x 1.25 x 20mm, Gr 8.8

BOLT - hex, M8 x 1.25 x 20 mm

4шт.

6

60-5802T91

SEAT ASSY.

SEAT ASSEMBLY - mechanical

1шт.
