Запчасти Case IH 9180 (9-038) - CAB DOOR AND LATCH (09) - CHASSIS/ATTACHMENTS

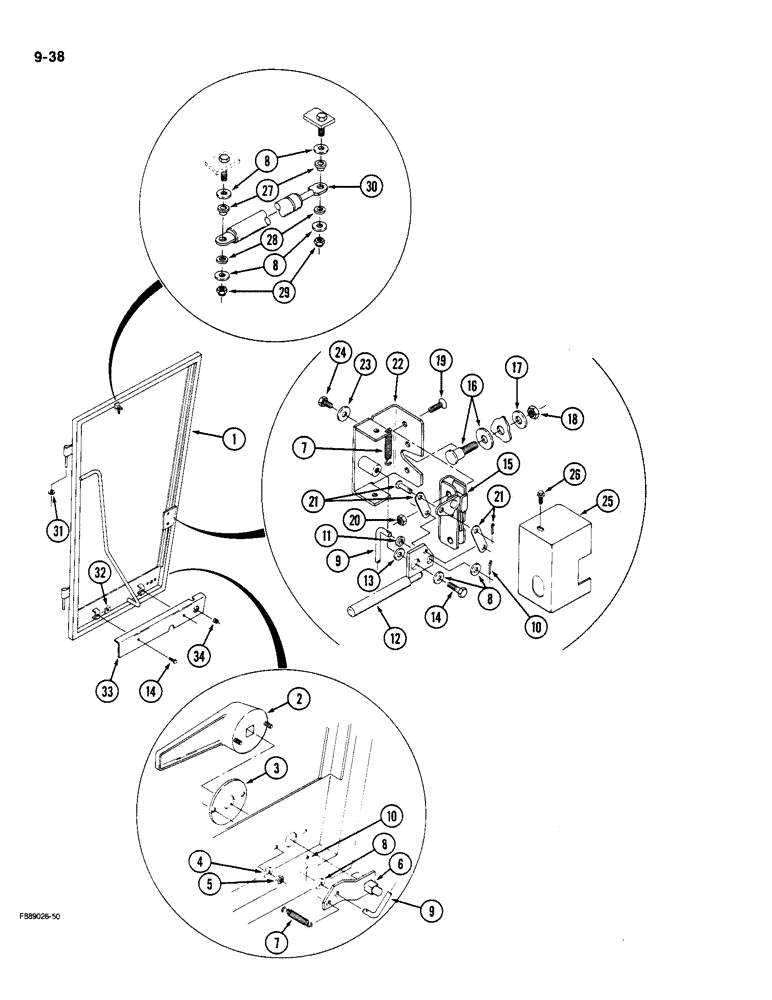

Схема запчастей Case IH 9180 - (9-038) - CAB DOOR AND LATCH (09) - CHASSIS/ATTACHMENTS
34
32
25
10
21
8
11
10
7
33
15
5
30
31
1
29
21
14
9
16
17
8
7
22
27
9
28
4
8
3
12
18
14
20
19
26
8
23
24
13
2

Артикул

Название

Примечание

Количество

1

60-4991T1

DOOR

- cab

1шт.

2

60-5063T2

HANDLE

- door, outer

1шт.

3

60-5062T1

GASKET

- door handle

1шт.

4

19-195

WASHER,#10

- flat, 3/16 x 9/16 x 3/64 inch

2шт.

5

19-351

NUT,#10 - 24, GA

NUT - lock, No. 10 NC

2шт.

6

60-5784T1

PIVOT

ACTUATOR - outer door

1шт.

7

60-4075T1

SPRING

- tension, return

2шт.

8

19-105

WASHER,1/4", SAE

- flat, 1/4 x 47/64 x 1/16 inch

7шт.

9

60-4999T1

ROD

- latch actuating

1шт.

10

19-1100

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

11

19-5688

WASHER

- flat, nylon

1шт.

12

60-5002T1

HANDLE

- door, inside

1шт.

13

60-4364T1

BUSHING

SPACER - pivot, inside handle

1шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

15

60-5001T1

LATCH

- door

1шт.

16

60-4193T1

LATCH

STRIKER - door latch

1шт.

17

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

1шт.

18

231-4117

LOCK NUT,7/16"-14, GB

NUT - lock, 7/16 inch NC

1шт.

19

86511979

SCREW,Flat, 5/16" - 18 x 1 1/4"

- machine, flat head, 5/16 NC x 1-1/4 inch

3шт.

20

19-5777

LOCK NUT

- lock, 5/16 inch NC

3шт.

21

2-3604T1

LINK

- connecting

1шт.

22

60-5592T1

BRACKET

- latch retaining

1шт.

23

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

2шт.

24

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

25

60-5005T1

COVER

- door latch

1шт.

26

19-948

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/8"

SCREW - tapping, flanged head, No. 8 NC x 3/8 inch

2шт.

27

19-6202

WASHER

BUSHING - shouldered

2шт.

28

19-6201

WASHER

- flat, plastic

2шт.

29

25846R11

NUT - lock, 1/4 inch NC

2шт.

30

60-5593T1

SPRING

CYLINDER - door

1шт.

31

60-4585T1

SPACER

- door adjustment

1шт.

32

19-6200

CLIP

NUT - speed, J-type, 1/4 inch NC

2шт.

33

60-5785T1

COVER

- door, lower

1шт.

34

19-6255

RING RACE

BEARING - door latch stabilizer

1шт.

Выбрано товаров: 34
