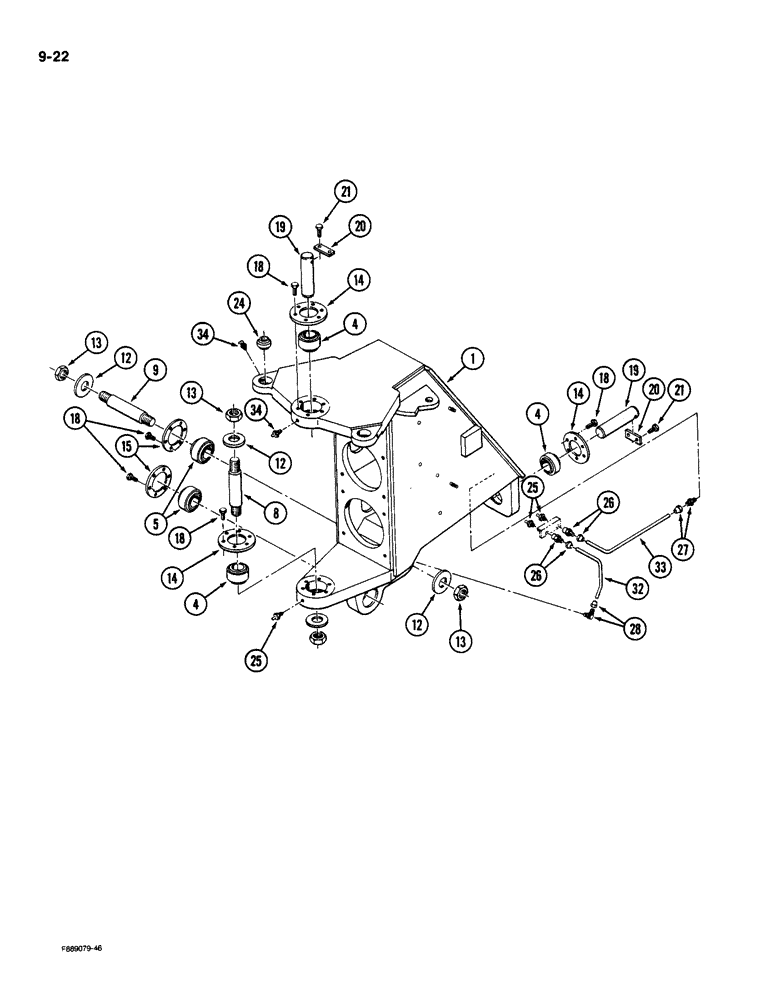

Запчасти Case IH 9180 (9-022) - CENTER HINGE (09) - CHASSIS/ATTACHMENTS

1

70-4930T1

CONTROL

HINGE - center, articulation and oscillation, Serial Range: -JCB0002092

1шт.

1

70-5377T1

YOKE

HINGE - center, articulation and oscillation, Start Serial: JCB0002092

1шт.

PLATE ON BOTTOM OF THIS YOKE THAT HAS 2 HOLES IN IT IS PART NO. 70-1419T2.

1шт.

4

619773C91

BEARING

- uniball

3шт.

5

70-1212T1

SPHERICAL BEARING,57.13mm ID x 100.01mm OD x 58.88mm W

BEARING - uniball

2шт.

8

70-1207T1

PIN,57.07mm OD x 277.88mm L

- connecting, threaded, 10-15/16 inch

1шт.

9

70-1206T1

PIN,57.07mm OD x 296.67mm L

- connecting, threaded, 11-11/16 inch

1шт.

12

19-5636

WASHER,39.62mm ID x 88.9mm OD x 9.53mm Thk

- flat, hardened, 1-1/2 x,3-1/2 x 3/8 inch

4шт.

13

19-5641

LOCK NUT,1 1/2"-6, GB

NUT - hex, lock, 1-1/2 inch NC

4шт.

14

70-1428T1

RETAINER

- bearing

3шт.

15

70-1429T2

RETAINER

RETAINING - bearing

2шт.

18

19-633

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

30шт.

19

70-1909T1

PIN,57.07mm OD x 207.26mm L

- connecting, 8-5/32 inch

2шт.

20

70-1910T1

RETAINER

- pin

2шт.

21

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

4шт.

24

15-44

SPHERICAL BEARING

BUSHING - self aligning, steering cylinder

2шт.

25

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

3шт.

26

31-598

CONNECTING ROD

CONNECTOR - straight, 1/8 NPT x 1/4 inch tube, Serial Range: -JCB0002092

2шт.

26

31-2785

FITTING

CONNECTOR - straight, 1/8 NPT x 1/4 inch tube, Start Serial: JCB0002092

2шт.

27

31-598

CONNECTING ROD

CONNECTOR - straight, 1/8 NPT x 1/4 inch tube

1шт.

28

31-599

ELBOW

CONNECTOR - 90 degree, 1/8 NPT x 1/4 inch tube

1шт.

32

70-2266T1

PIPE

TUBE - grease

1шт.

33

70-2267T1

PIPE

TUBE - grease

1шт.

34

31-93

FITTING

- grease, 90 degree, 1/8 inch NPT

4шт.
