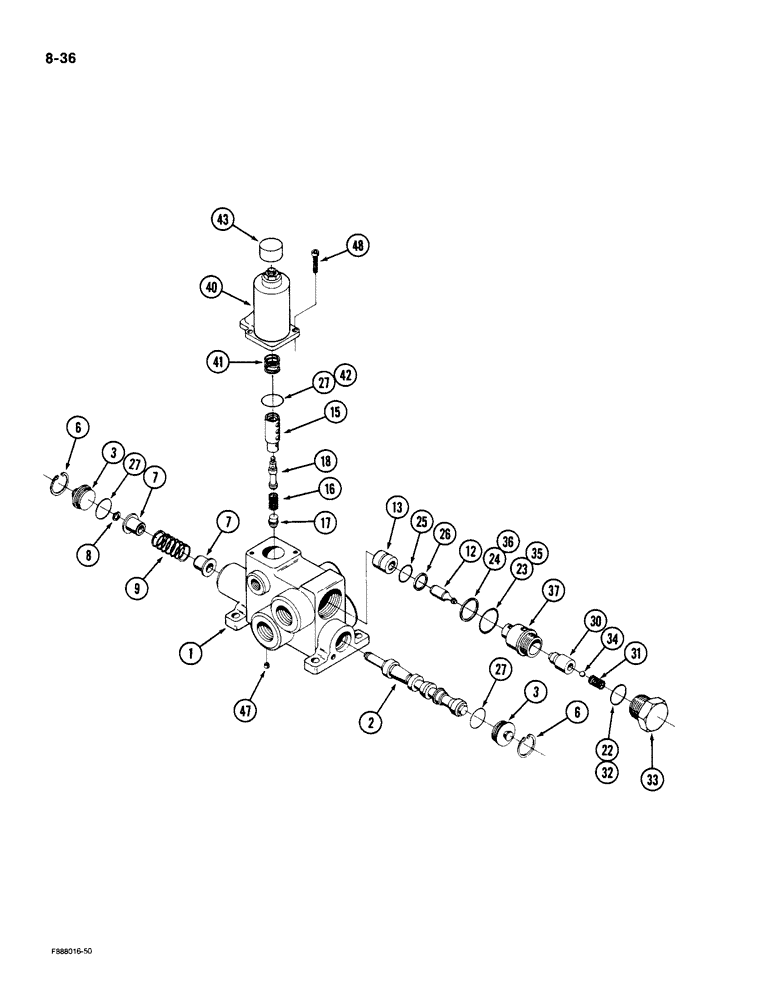

Запчасти Case IH 9180 (8-36) - HITCH VALVE ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
50-2389T91
VALVE
ASSEMBLY - solenoid, Includes: Ref. 1 - 48
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL - valve
1шт.
3
50-2643T1
PLUG
- spool
2шт.
6
50-2644T1
RING, SNAP
RING - snap, plug retainer
2шт.
7
50-2647T1
GUIDE
- spring
2шт.
8
50-2646T1
RING, SNAP
RING - snap
1шт.
9
50-2645T1
SPRING
- spool, centering
1шт.
12
50-2637T1
PISTON
- load check
1шт.
13
50-2638T1
SLEEVE
- piston
1шт.
15
50-2639T1
SPOOL
- control
1шт.
16
50-2648T1
SPRING
- control spool
1шт.
17
50-2649T2
GUIDE
- spool
1шт.
18
50-2650T1
SLEEVE
- plunger
1шт.
50-2652T1
SEAL KIT
SEAL KIT - valve, Includes: Ref. 22 - 27
1шт.
22
NSS
NOT SOLD SEPARAT
O-RING - plug
1шт.
23
NSS
NOT SOLD SEPARAT
O-RING - seal
1шт.
24
NSS
NOT SOLD SEPARAT
WASHER - backup, O-ring
1шт.
25
NSS
NOT SOLD SEPARAT
O-RING - seal
1шт.
26
NSS
NOT SOLD SEPARAT
WASHER - backup, O-ring
1шт.
27
NSS
NOT SOLD SEPARAT
O-RING - seal, solenoid
3шт.
50-2651T1
CARTRIDGE
ASSEMBLY - load check, Includes: Ref. 30 - 37
1шт.
30
NSS
NOT SOLD SEPARAT
POPPET - load check
1шт.
31
NSS
NOT SOLD SEPARAT
SPRING - return
1шт.
32
NSS
NOT SOLD SEPARAT
O-RING - plug
1шт.
33
NSS
NOT SOLD SEPARAT
PLUG - O-ring
1шт.
34
NSS
NOT SOLD SEPARAT
BALL - check
1шт.
35
NSS
NOT SOLD SEPARAT
O-RING - seal
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - backup
1шт.
37
NSS
NOT SOLD SEPARAT
SLEEVE
1шт.
50-3143T91
MOTOR, HYDRAULIC
MOTOR ASSEMBLY - force
1шт.
40
NSS
NOT SOLD SEPARAT
SOLENOID ASSEMBLY - electrical (Order 35-1730T91 Kit), Includes: Ref. 40 - 43
1шт.
41
50-3142T1
SPRING
- solenoid
1шт.
42
NSS
NOT SOLD SEPARAT
O-RING - seal, solenoid
1шт.
43
50-2718T1
CAP
- solenoid
1шт.
47
NSS
NOT SOLD SEPARAT
PLUG - hole
7шт.
48
147112
CAPSCREW,#10 - 24 x 0.75", Gr 8
BOLT - socket head, No. 10 NC x 3/4 inch, Grade 8
2шт.
35-1730T91
KIT
- force motor
1шт.
Выбрано товаров: 38
