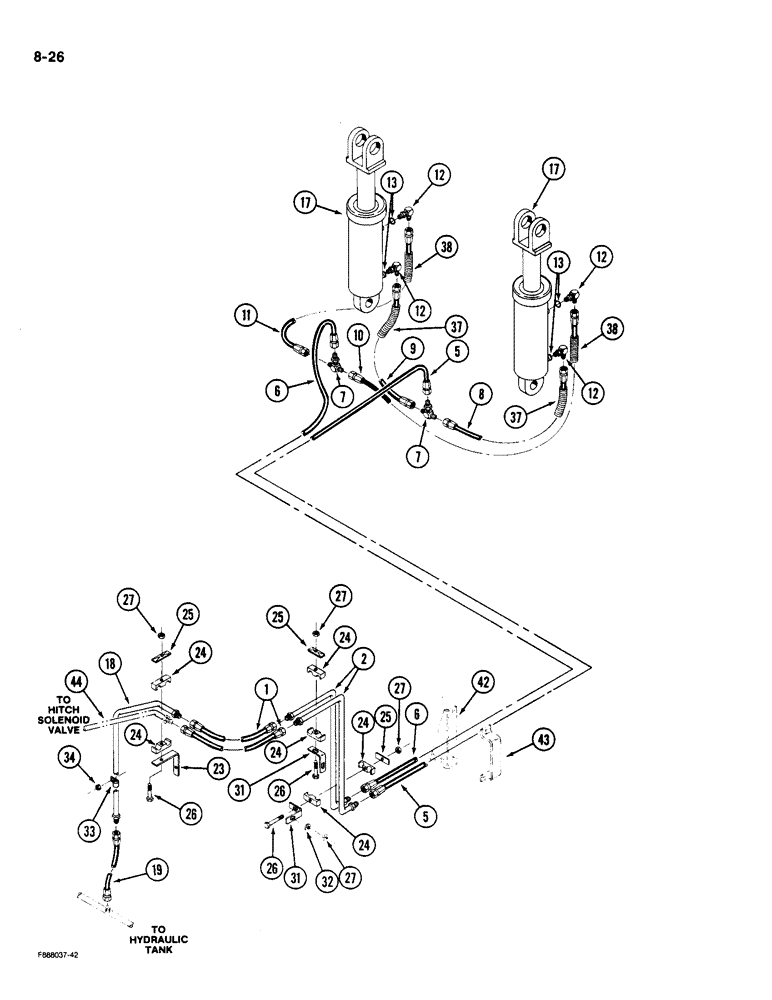

Запчасти Case IH 9180 (8-26) - 3-POINT HITCH HYDRAULICS LIFT CYLINDER AND LINES, PRIOR TO P.I.N. JCB0002092 (08) - HYDRAULICS

1

31-2770

HOSE ASSY.

HOSE - tube to tube, 28 inch

2шт.

2

50-3012T1

TUBE ASSY.

TUBE -, Serial Range: hose-hose

2шт.

5

31-2772

HOSE ASSY.

HOSE - tube to tee, cylinder pressure, 62 inch

1шт.

6

70144C1

HOSE

- tube to tee, cylinder return, 73 inch

1шт.

7

31-1800

TEE,7/8"-14, 37 Degree, Blkhd

- adjustable, 7/8 x 7/8 x 7/8 inch thread

2шт.

8

31-1795

HOSE

- tee to cylinder, lift, LH, 30 inch

1шт.

9

31-1959

HOSE

- tee to cylinder, lift, RH, 54-1/2 inch

1шт.

10

31-1958

HOSE

- tee to cylinder, drain, LH, 62 inch

1шт.

11

31-1957

HOSE

- tee to cylinder, drain, RH, 39 inch

1шт.

12

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree, 3/4 x 3/4 inch thread, Includes: Ref. 13

4шт.

13

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

4шт.

17

REF

INSTRUCTION

CYLINDER ASSEMBLY - three point hitch (See Fig. 8-34)

2шт.

18

50-3014T1

HYD TUBE

TUBE - hose to hose, cylinder drain

1шт.

19

31-2774

HOSE ASSY.

HOSE - tube to drain tube, 16 inch

1шт.

23

50-3018T1

BRACKET

- mounting, clamp

1шт.

24

50-2551T1

CLAMP

- tube, split halves

6шт.

25

50-2533T1

PLATE

COVER - clamp

3шт.

26

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

3шт.

27

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

31

50-3017T1

SUPPORT

BRACKET - mounting, clamp

2шт.

32

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

1шт.

33

31-1776

MOUNTING CLIP

CLAMP - tube

1шт.

34

19-78

SPECIAL NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.

37

50-2962T1

CONDUIT

GUARD - hose protector, 23 inch

2шт.

38

50-2741T1

CONDUIT

GUARD - hose, 30 inch (Order S119717 and, Serial Range: cut-length)

2шт.

42

REF

INSTRUCTION

BRACKET - hose mounting (See Fig. 8-10)

1шт.

43

REF

INSTRUCTION

BRACKET - hose clamping (See Fig. 8-10)

1шт.

44

REF

INSTRUCTION

TUBE - solenoid valve (See Fig. 8-24)

1шт.
