Запчасти Case IH 9180 (8-22) - OIL COOLER MOUNTING (08) - HYDRAULICS

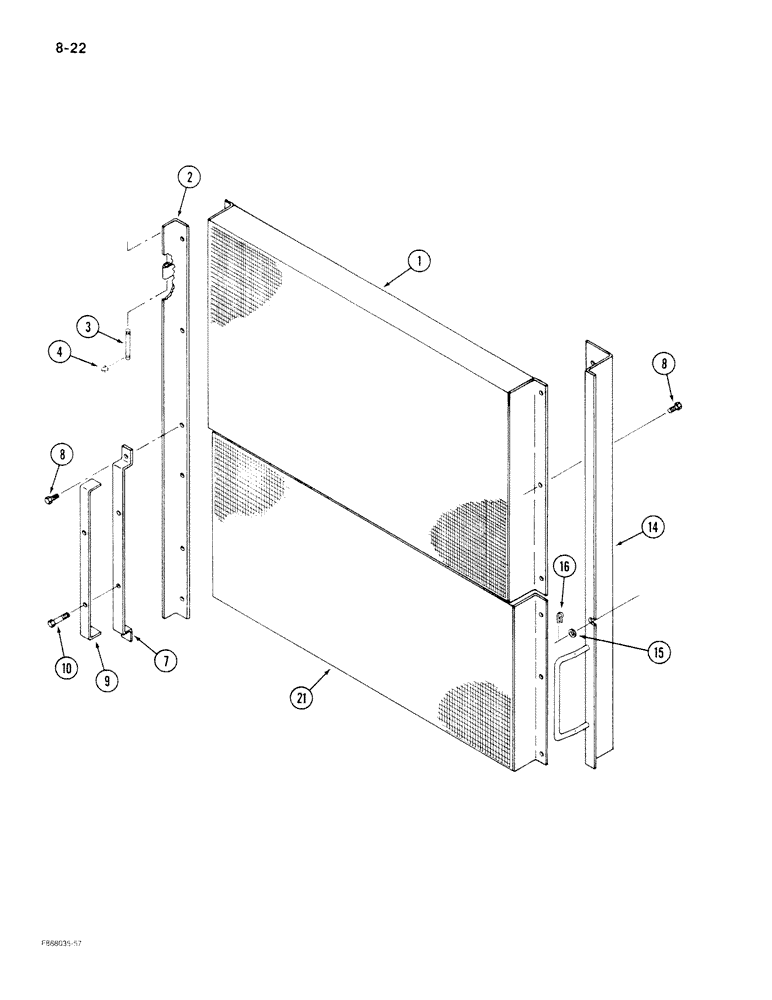

Схема запчастей Case IH 9180 - (8-22) - OIL COOLER MOUNTING (08) - HYDRAULICS
8
16
1
7
4
10
15
2
3
8
9
14
21

Артикул

Название

Примечание

Количество

1

90-6708T1

OIL COOLER

COOLER - oil, hydraulic

1шт.

2

90-6847T1

SUPPORT

BRACE - cooler mounting, with hinge

1шт.

3

70-1996T2

PIN

- hinge

2шт.

4

70-2600T1

RING, SNAP

RING - snap

4шт.

7

90-6846T1

SUPPORT

MOUNT - hose retaining

1шт.

8

19-676

CAPSCREW,Hex, 1" - 8 x 2", Gr 5

BOLT - hex, 5/16 NC x 1/2 inch

12шт.

9

90-6845T1

MOUNTING CLIP

CLAMP - hose

1шт.

10

19-39

BOLT,5/16" - 18 x 1 3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

14

90-6965T1

ANGLE BAR

BRACE - cooler mounting, with handle

1шт.

15

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

1шт.

16

19-5400

PIN

- hair, latch retaining

1шт.

21

REF

INSTRUCTION

CONDENSOR - air conditioning (See Fig. 9-98 and 9-100)

1шт.

Выбрано товаров: 12
