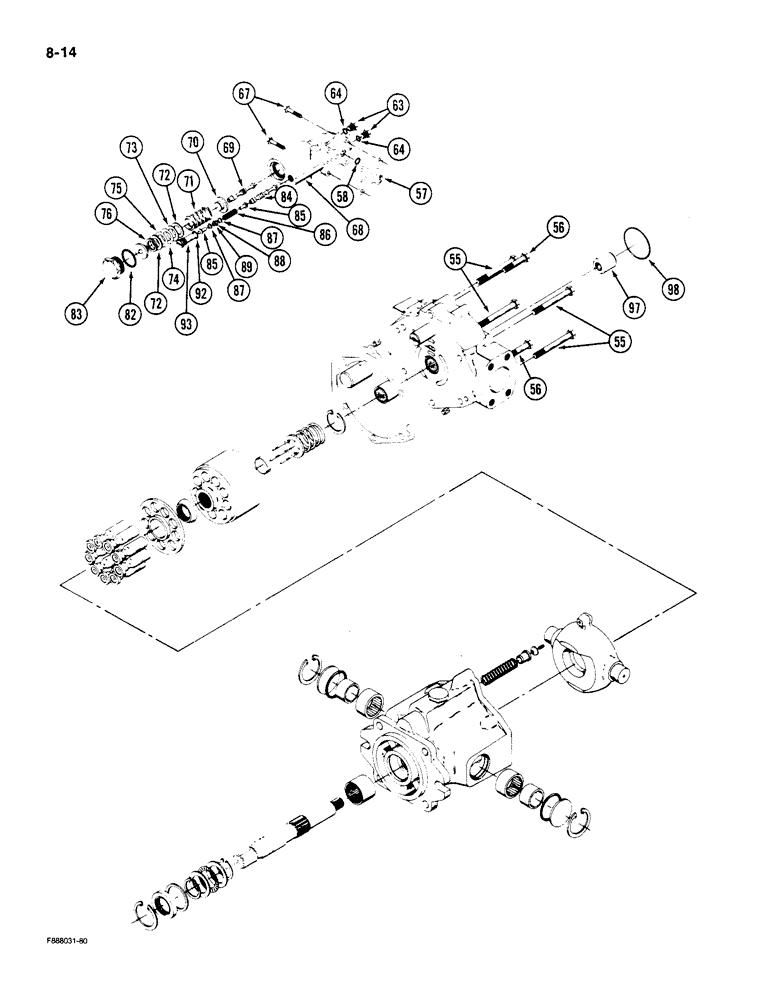

Запчасти Case IH 9180 (8-14) - PISTON PUMP ASSEMBLY, [CONT] (08) - HYDRAULICS

50-1452T92

PUMP

ASSEMBLY - piston (Continued from previous Fig.), Includes: Ref. 55 - 98 and Ref. 1 - 49 on Fig. 8-12

1шт.

55

19-734

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

- hex, 7/16 NC x 3-1/4 inch

4шт.

56

19-35

BOLT,7/16" - 14 x 2", Gr 5

- hex, 7/16 NC x 2 inch

2шт.

57

50-1803T1

GASKET

- compensator

1шт.

Part of Seal Kit, 50-1802T1.

1шт.

58

50-1804T1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

- seal, compensator

1шт.

Part of Seal Kit, 50-1802T1.

1шт.

50-1805T91

EQUALIZER

COMPENSATOR ASSEMBLY - pressure flow, Includes: Ref. 63 - 93

1шт.

63

50-1806T1

PLUG

- hex, O-ring

2шт.

64

50-1823T1

O-RING

- plug

2шт.

Part of Seal Kit, 50-1802T1.

1шт.

67

19-1543

CAPSCREW,Flg, 1/4" - 20 x 1 1/4", Gr 8

BOLT - 12 point, 1/4 NC x 1-1/4 inch, Grade 8

4шт.

68

NSS

NOT SOLD SEPARAT

BODY - compensator

1шт.

69

NSS

NOT SOLD SEPARAT

SPOOL - pressure

1шт.

79

50-1807T1

CAP

- spring

1шт.

71

50-1808T1

SPRING

- spool

1шт.

72

50-1809T1

WASHER

SHIM - flat, 0.030 inch

1шт.

73

50-1810T1

WASHER

SHIM - flat, 0.005 inch

1шт.

74

50-1811T1

WASHER

SHIM - flat, 0.010 inch

1шт.

75

50-1812T1

WASHER

SHIM - flat, 0.015 inch

1шт.

76

50-1813T1

WASHER

SHIM - flat, 0.059 inch

1шт.

82

50-1814T1

O-RING

- plug

1шт.

Part of Seal Kit, 50-1802T1.

1шт.

83

9672438

PLUG,7/16" - 20 ORB

Adjustment end Hex Hd, 7/16"-20 ORB

1шт.

84

NSS

NOT SOLD SEPARAT

SPOOL - flow

1шт.

85

50-1816T1

SPRING

PIVOT - spring

2шт.

86

50-1817T1

SPRING

- spool

1шт.

87

H220798

SHIM,.035" Thk

Washer - flat .035" Thk

2шт.

88

50-1819T1

WASHER

- flat, 0.010 inch

1шт.

89

50-1820T1

WASHER

SHIM - flat, 0.005 inch

1шт.

92

50-1821T1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-RING - plug

1шт.

Part of Seal Kit, 50-1802T1.

1шт.

93

50-1822T1

PLUG

- spring pivot

1шт.

97

50-2964T1

COUPLING

COUPLER - drive, pump

1шт.

98

D61908

O-RING

- seal, pump

1шт.

50-1802T1

SEAL KIT

KIT Includes: Refs. 57, 58, 64, 82 and 92

1шт.
