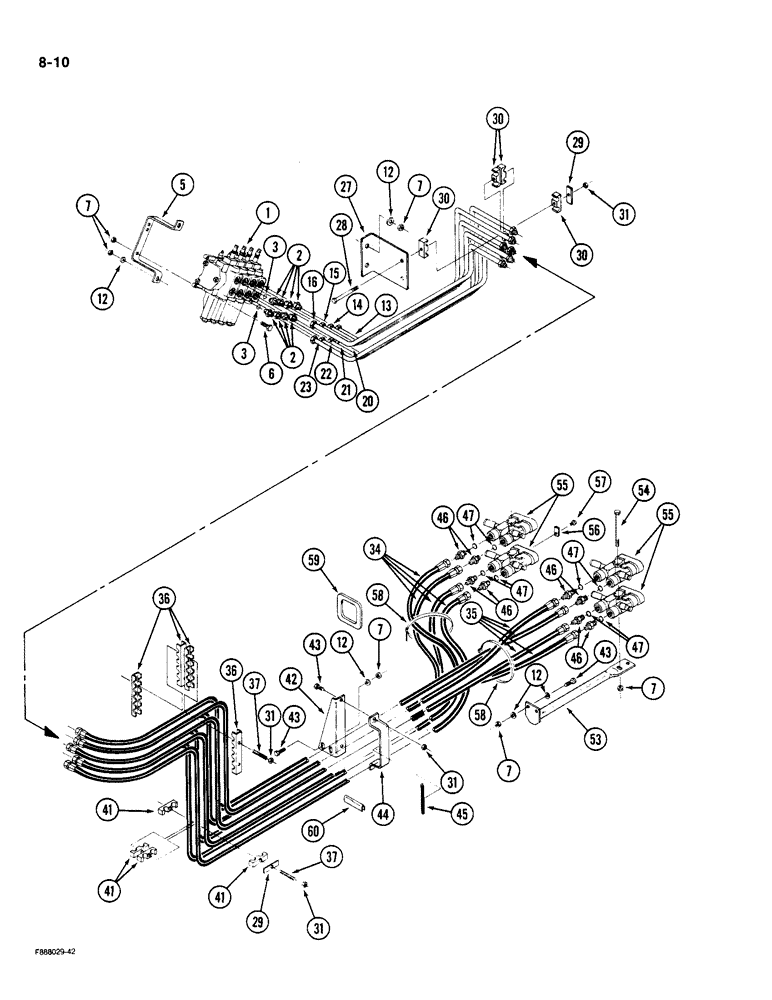

Запчасти Case IH 9180 (8-10) - COUPLERS AND LINES, P.I.N. JCB0002092 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Fig. 8-44)

1шт.

2

18-608

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, 7/8 x 1-1/16 inch thread, Includes: Ref. 3

8шт.

3

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

8шт.

5

50-3042T1

SUPPORT

BRACKET - valve mounting

2шт.

6

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

7

19-78

SPECIAL NUT,3/8"-16, G5

- hex, 3/8 inch NC

19шт.

12

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

12шт.

13

50-3010T1

HYD TUBE

TUBE - remote pressure, section 1

1шт.

14

50-3008T1

HYD TUBE

TUBE - remote pressure, section 2

1шт.

15

50-3006T1

HYD TUBE

TUBE - remote pressure, section 3

1шт.

16

50-3004T1

HYD TUBE

TUBE - remote pressure, section 4

1шт.

20

50-3011T1

HYD TUBE

TUBE - remote return, section 1

1шт.

21

50-3009T1

HYD TUBE

TUBE - remote return, section 2

1шт.

22

50-3007T1

HYD TUBE

TUBE - remote return, section 3

1шт.

23

50-3005T1

HYD TUBE

TUBE - remote return, section 4

1шт.

27

50-3015T1

SUPPORT

BRACKET - mounting, tubes

1шт.

28

19-333

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- hex, 5/16 NC x 4 inch

2шт.

29

50-2533T1

PLATE

COVER - clamp

4шт.

30

50-2551T1

CLAMP

- tube, split halves

8шт.

31

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

34

31-2813

HOSE ASSY.

HOSE - tube to couplers, RH

4шт.

35

31-2812

HOSE

- tube to couplers, LH

4шт.

36

50-3166T1

SUPPORT

CLAMP - hose

4шт.

37

50-2720T1

STUD

- clamp mounting, 5/16 NC x 6-1/2 inch

4шт.

41

50-2534T1

CLAMP

- hose, split halves

8шт.

42

50-1310T2

BRACE

BRACKET - mounting, hose

1шт.

43

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

8шт.

44

50-1308T1

BRACKET

- clamping, hose

1шт.

45

2-8006T1

GROMMET

- hose (Order 2-7089T2 and, Serial Range: cut-size)

2шт.

46

18-570

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, 7/8 x 7/8 inch thread, Includes: Ref. 47

8шт.

47

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

8шт.

53

50-2880T1

SUPPORT

MOUNT - coupler

2шт.

54

113-2232

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

- hex, 3/8 NC x 5-1/2 inch

4шт.

54

19-279

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex, 3/8 NC x 3 inch

2шт.

55

REF

INSTRUCTION

COUPLER ASSEMBLY - hydraulic (See Fig. 8-52)

2шт.

56

50-2778T1

PLATE

MARKER - coupler, No. 1

1шт.

56

50-2779T1

PLATE

MARKER - coupler, No. 2

1шт.

56

50-2780T1

PLATE

MARKER - coupler, No. 3

1шт.

56

50-2781T1

PARTITION

MARKER - coupler, No. 4

1шт.

57

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

58

50-2037T1

STRAP

- nylon

2шт.

59

2-7088T1

GASKET

GROMMET - hose protection, rear of rear frame

2шт.

60

50-2034T1

GROMMET

- hose protection, front of rear frame

1шт.
