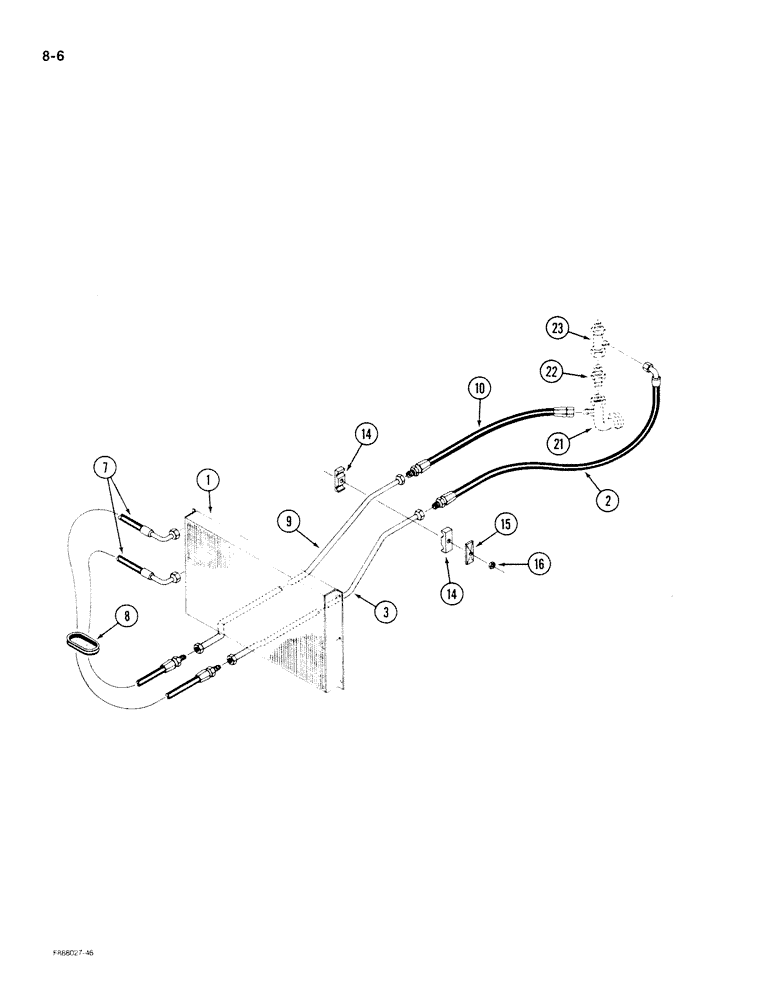

Запчасти Case IH 9180 (8-06) - OIL COOLER LINES (08) - HYDRAULICS

1

90-6708T1

OIL COOLER

COOLER - oil (See Fig. 8-22 for mounting)

1шт.

2

31-2798

HOSE

- to oil cooler tube, 25 inch

1шт.

3

50-1385T1

TUBE

- cooler supply

1шт.

7

31-2761

HOSE

- to and from oil cooler, 80 inch

2шт.

8

31-1786

GROMMET

- hose protection

1шт.

9

50-2940T1

TUBE

- cooler return

1шт.

10

31-2796

HOSE

- from oil cooler tube, 17 inch

1шт.

14

50-2551T1

CLAMP

- hose, split halves

4шт.

15

50-2533T1

PLATE

COVER - clamp

2шт.

16

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

21

REF

INSTRUCTION

TUBE - to oil filter (See Fig. 8-4)

1шт.

22

REF

INSTRUCTION

VALVE ASSEMBLY - check (See Fig. 8-4)

1шт.

23

REF

INSTRUCTION

TUBE - to charge pump (See Fig. 8-4)

1шт.
