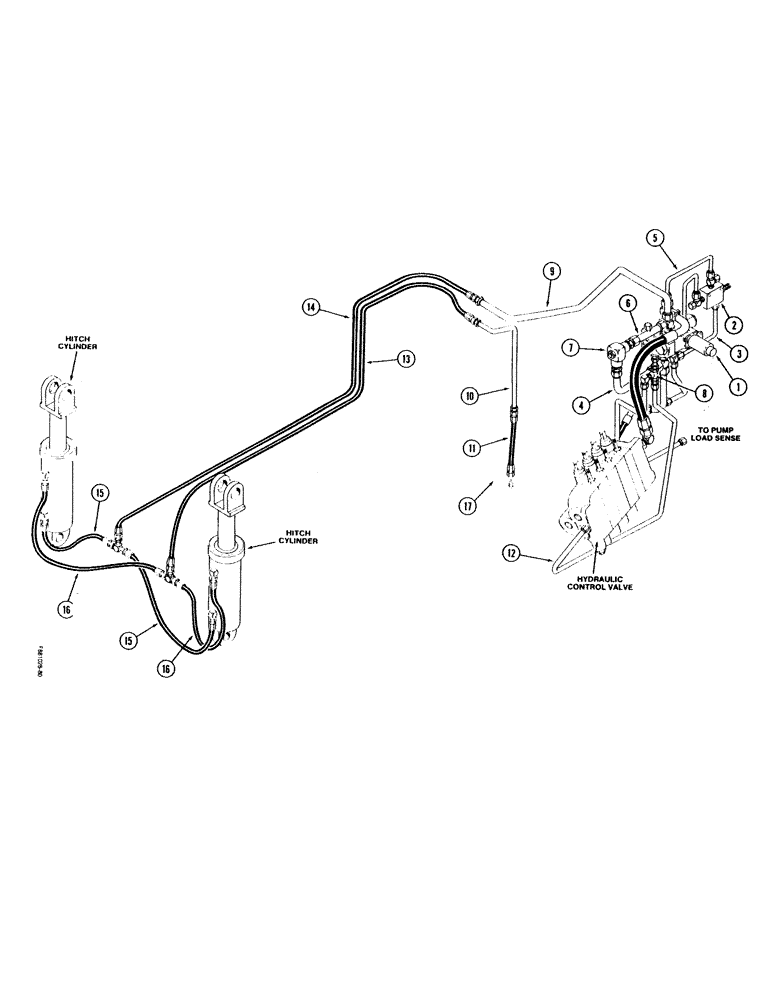

Запчасти Case IH 9180 (1-18) - HITCH HYDRAULICS (00) - PICTORIAL INDEX

1

Hitch Solenoid Valve, Fig. 8-36

1шт.

2

Pressure Reducing Valve, Fig. 8-38

1шт.

3

Valve to Valve Tube, Fig. 8-24

1шт.

4

Relief Valve to Valve Tube, Fig. 8-24

1шт.

5

Valve to Valve Tube, Fig. 8-24

1шт.

6

Valve to Relief Valve Tube, Fig. 8-24

1шт.

7

Relief Valve, Fig. 8-38

1шт.

8

Shuttle Valve, Fig. 8-24

1шт.

9

Valve to Hitch Cylinder Tube, Fig. 8-24

1шт.

10

Cylinder Drain Tube, Fig. 8-26, 8-28

1шт.

11

Cylinder Drain Hose, Fig. 8-26, 8-28

1шт.

12

Shuttle Valve to Control Valve Tube, Fig. 8-24

1шт.

13

Cylinder Drain Hose, Fig. 8-26, 8-28

1шт.

14

Cylinder Pressure Hose, Fig. 8-26, 8-28

1шт.

15

Cylinder Lift Hose, Fig. 8-26, 8-28

1шт.

16

Cylinder Drain Hose, Fig. 8-26, 8-28

1шт.

17

Return Tube, Fig. 8-2

1шт.
