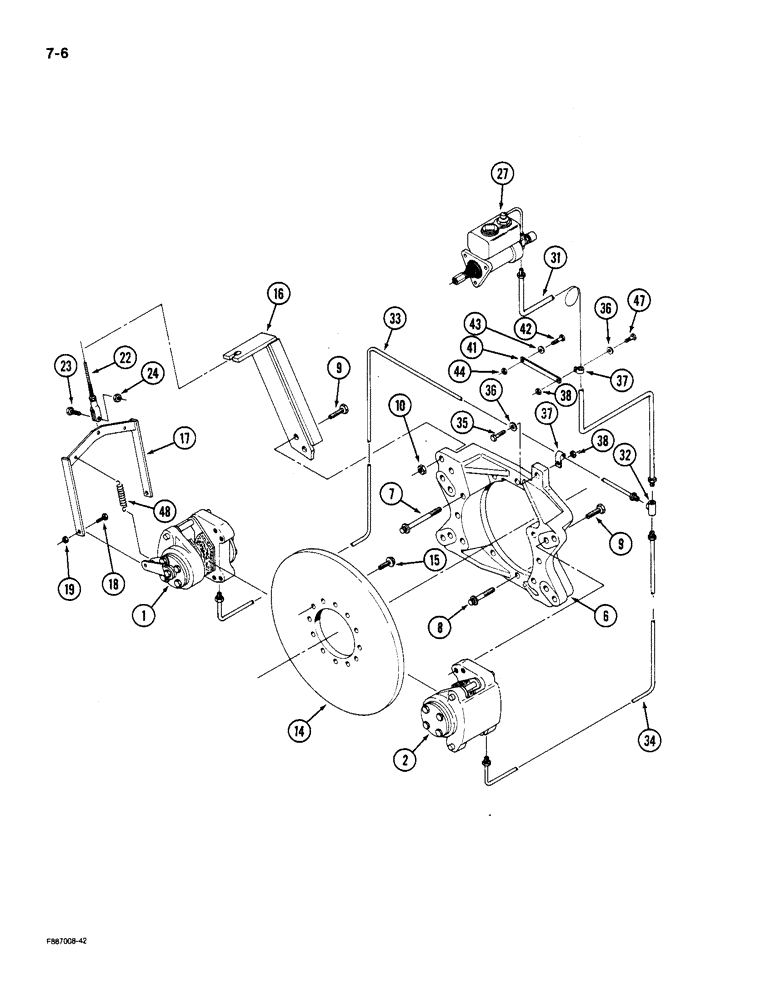

Запчасти Case IH 9180 (7-06) - BRAKE SYSTEM (07) - BRAKES

1

REF

INSTRUCTION

CALIPER ASSEMBLY - brake, with park brake (See Fig. 7-8)

1шт.

2

REF

INSTRUCTION

CALIPER ASSEMBLY - brake, without park brake (See Fig. 7-10)

1шт.

6

90-6672T1

ANCHOR

MOUNT -, Serial Range: caliper-axle

1шт.

7

40-1185

SCREW,Flg, M14 x 1.5 x 120mm, Gr 12.9

BOLT - flanged, 12 point, M14 x 1.5 x 120 mm, Grade 12.9

6шт.

8

40-1186

SCREW,Flg, M14 x 1.5 x 60mm, Gr 12.9

BOLT - flanged, 12 point, M14 x 1.5 x 60 mm, Grade 12.9

6шт.

9

9424760

SCREW,5/8" - 11 x 2", Gr 8

BOLT - hex, 5/8 NC x 2 inch, Grade 8

10шт.

10

19-83

NUT,5/8"-11, G5

- hex, 5/8 inch NC

2шт.

14

90-3469T1

DISC

- brake

1шт.

15

19-6089

BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 8

- flanged head, 1/2 NF x 1-1/2 inch, Grade 8

12шт.

16

90-3808T1

BRACKET

MOUNT - cable, park brake actuating

1шт.

17

90-4030T1

SUPPORT

BRACKET - actuating, park brake

1шт.

18

19-654

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, Grade 8

2шт.

19

231-1445

NUT,5/16"-18, GB

NUT - hex, lock, 5/16 inch NC

2шт.

22

REF

INSTRUCTION

CABLE - park brake (See Fig. 7-4)

1шт.

23

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex, 3/8 NC x 1-1/4 inch, Grade 8

1шт.

24

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

1шт.

27

REF

INSTRUCTION

CYLINDER ASSEMBLY - master (See Fig. 7-12)

1шт.

31

90-6876T1

TUBE,0.25" OD x 45" L

ASSEMBLY - brake line, master cylinder to tee fitting

1шт.

32

31-1865

TEE

CONNECTOR - tee, 7/16 inverted flare thread

1шт.

33

90-3856T1

TUBE,.25" OD

ASSEMBLY - brake line, tee fitting to brake caliper with park brake

1шт.

34

90-3855T1

TUBE,.25" OD

ASSEMBLY - brake line, tee fitting to brake caliper without park brake

1шт.

35

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

36

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

2шт.

37

31-1862

CLAMP

- tube

2шт.

38

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

41

90-6886T1

LARGE PLATE

STRAP - mounting, clamp

1шт.

42

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

43

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

1шт.

44

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

47

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

1шт.

48

REF

INSTRUCTION

SPRING - return, park brake (See Fig. 7-8)

1шт.
