Артикул
Название
Примечание
Количество
90-6556T91
4WD AXLE ASSY

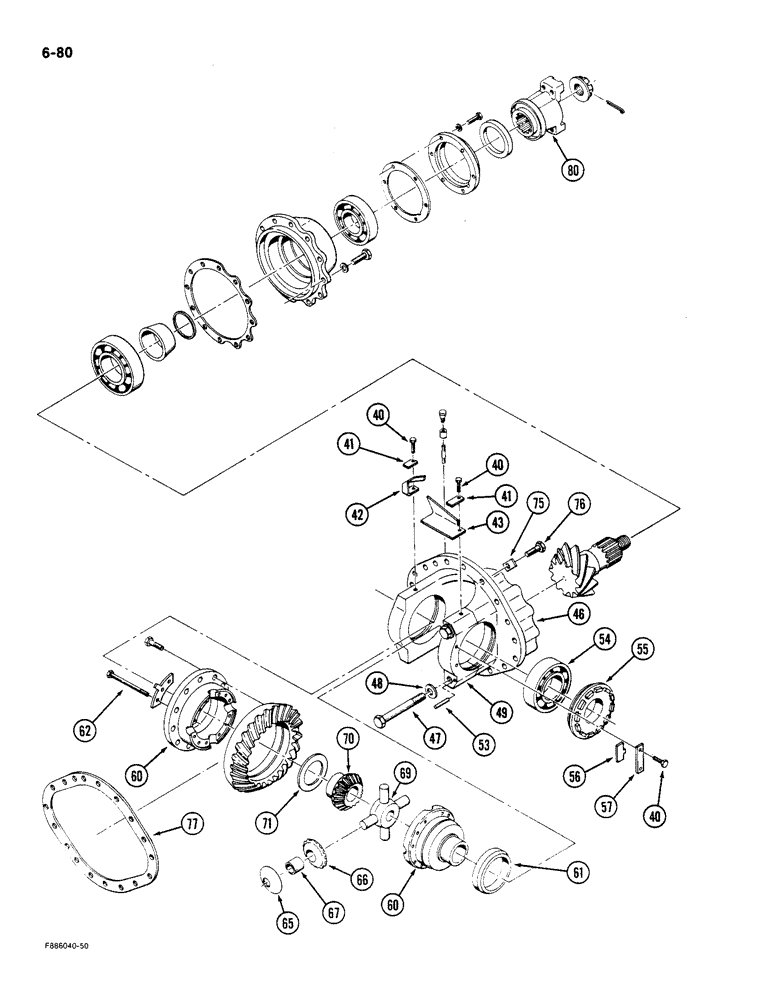

AXLE ASSEMBLY - front (Continued from previous Fig.), Includes: Ref. 40 - 80 and Ref. 1 - 34 on Fig. 6-78
1шт.
90-6557T91
AXLE HOUSING
AXLE ASSEMBLY - rear, Includes: Ref. 40 - 80 and Ref. 1 - 34 on Fig. 6-78
1шт.
90-4487T91
DIFFERENTIAL
ASSEMBLY - front, Includes: Ref. 40 - 71 and Ref. 1 - 34 on Fig. 6-78
1шт.
90-4486T91
DIFFERENTIAL
ASSEMBLY - rear, Includes: Ref. 40 - 71 and Ref. 1 - 34 on Fig. 6-78
1шт.
40
16-1626
BOLT,Hex, M8 x 1.25 x 15mm, Gr 10.9
BOLT - hex, M8 x 15 mm, Grade 10.9
8шт.
41
90-4492T1
LARGE PLATE
TAB - locking
2шт.
42
90-4491T1
LARGE PLATE
PLATE - oil baffle, front axle
1шт.
42
90-4490T1
LARGE PLATE
PLATE - oil baffle, rear axle
1шт.
43
90-4494T1
LARGE PLATE
PLATE - oil baffle, front axle
1шт.
43
90-4493T1
LARGE PLATE
PLATE - oil baffle, rear axle
1шт.
46
90-4488T91
HOUSING
ASSEMBLY - differential carrier, Includes: Ref. 47 - 49
1шт.
47
16-1528
BOLT,Hex, M24 x 2 x 117mm, Cl 10.9
BOLT - hex
2шт.
48
90-4489T1
WASHER
- flat
2шт.
49
NSS
NOT SOLD SEPARAT
CAP - bearing retainer
1шт.
53
90-4485T1
DOWEL
PIN - dowel, M10 x 25 mm
1шт.
54
16-1523
BEARING ASSY,85mm ID x 130mm OD x 29mm W
BEARING - tapper roller
2шт.
55
16-1522
SLOTTED NUT
NUT - bearing retainer
2шт.
56
16-1525
LARGE PLATE
PLATE - locking tab, bearing nut
1шт.
56
16-1526
LARGE PLATE
PLATE - locking tab, bearing nut
1шт.
56
16-1527
LARGE PLATE
PLATE - locking tab, bearing nut
1шт.
57
16-1524
LARGE PLATE
PLATE - locking
2шт.
16-1547
DIFFERENTIAL
ASSEMBLY - axle, Includes: Ref. 60 - 71
1шт.
16-1548
CAGE ASSY.
CASE ASSEMBLY - differential halves, Includes: Ref. 60 - 62
1шт.
60
NSS
NOT SOLD SEPARAT
CASE - differential
1шт.
61
16-1564
BAFFLE
Oil
1шт.
62
16-1543
SCREW,Hex, M12 x 1.5 x 90mm, Gr 10.9
BOLT - hex, M12 x 1.5 x 90 mm, Grade 10.9
12шт.
65
16-1563
WASHER
- cone, wear
4шт.
66
16-1561
PINION
GEAR - pinion, Includes: Ref. 67
4шт.
67
16-1562
BUSHING
Gear
4шт.
69
16-1560
DIFF. SPIDER
SPIDER - pinion gear
1шт.
70
16-1559
PINION
GEAR - side
2шт.
71
16-1552
SPACER
- gear, 4.7 mm thick
2шт.
71
16-1553
SPACER
- gear, 4.8 mm thick
2шт.
71
16-1554
SPACER
- gear, 4.9 mm thick
2шт.
71
16-1555
SPACER
- gear, 5.0 mm thick
2шт.
71
16-1556
SPACER
- gear, 5.1 mm thick
2шт.
71
16-1557
SPACER
- gear, 5.2 mm thick
2шт.
71
16-1558
SPACER
- gear, 5.3 mm thick
2шт.
75
16-1520
WASHER
- lock
12шт.
75
16-1521
WASHER
PLATE - locking
6шт.
76
40-1102
SCREW,Hex, M12 x 1.75 x 40mm, Gr 10.9
BOLT - hex, M12 x 38 mm, Grade 10.9
18шт.
77
16-1531
GASKET
- differential (Order 1-1055, RTV sealant)
1шт.
80
90-6566T1
COUPLING FLANGE
YOKE - flanged, brake mount, front
1шт.
Выбрано товаров: 45
