Артикул
Название
Примечание
Количество
90-6766T91
CASE ASSY.

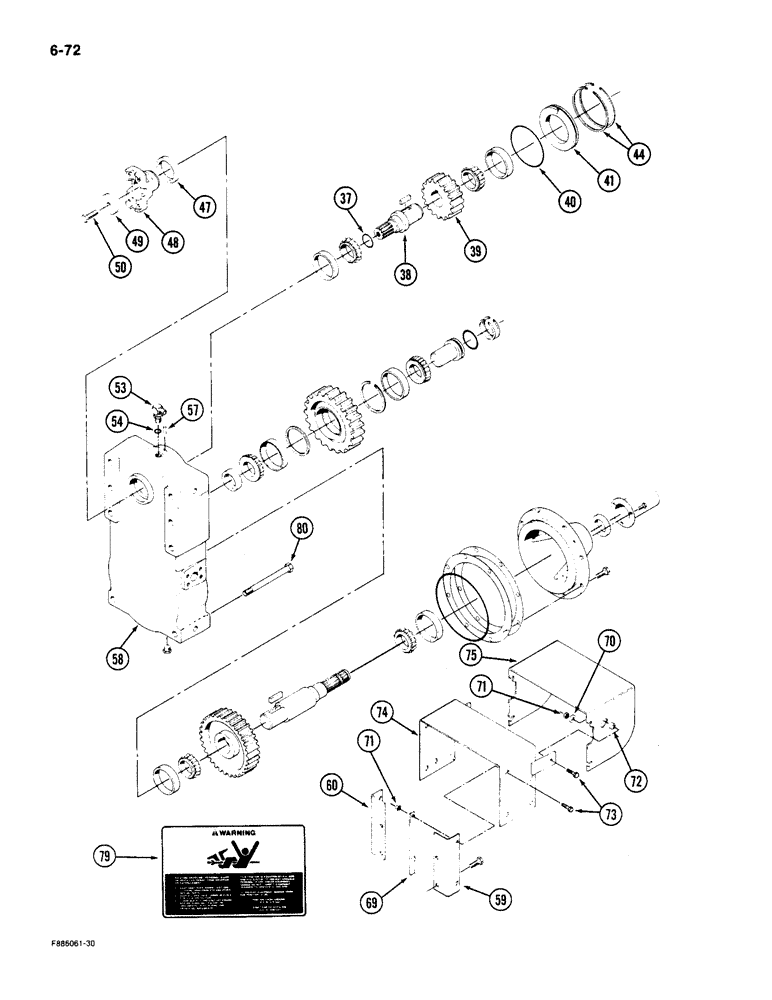

CASE ASSEMBLY - transfer, PTO (Continued from previous Fig.), Includes: Ref. 37 - 60 and Ref. 1 - 33 on Fig. 6-70
1шт.
37
31-1744
O-RING
O-RING - sealing, yoke, 1-3/4 x 1-63/64 inch
1шт.
38
90-1991T1
SHAFT
- input
1шт.
39
90-4404T1
PINION
GEAR - input, 32 tooth
1шт.
40
90-4423T1
O-RING,5.609" ID x 5.887" OD x 0.139"
- end cap, 5-5/8 x 5-7/8 inch
1шт.
41
90-4422T1
CAP
- end, input shaft
1шт.
44
90-5755T1
RING, SNAP
RING - snap, 0.105 inch thick
1шт.
44
90-5754T1
RING, SNAP
RING - snap, 0.110 inch thick
1шт.
44
90-5753T1
RING, SNAP
RING - snap, 0.115 inch thick
1шт.
44
90-5752T1
RING, SNAP
RING - snap, 0.120 inch thick
1шт.
44
90-5751T1
RING, SNAP
RING - snap, 0.125 inch thick
1шт.
47
90-1994T1
SEAL
- input shaft yoke
1шт.
48
90-1927T1
YOKE
- input, PTO
1шт.
49
19-5776
WASHER
- flat
1шт.
50
19-822
BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, Full Thd
- hex, 5/8 NC x 1-1/2 inch, Grade 8
1шт.
53
31-324
ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring
- 90 degree adjustable, 3/4 x 3/4 inch, Includes: Ref. 54
1шт.
54
31-1335
O-RING,8-1, 90 Duro, .644" ID x .087" Thk
- 41/64 x 5/64 inch thick
1шт.
57
19-6194
DOWEL,1/4" x 1 1/4"
PIN - dowel, 1/4 x 1-1/4 inch
1шт.
58
90-4417T2
HOUSING
- PTO
1шт.
59
90-6831T1
ANGLE BAR
MOUNT - shield, left
1шт.
60
90-6835T1
ANGLE BAR
MOUNT - shield, right
1шт.
69
90-5866T1
RETAINER
- bracket
2шт.
70
25709R1
WASHER
- flat, 3/8 x 1 x 1/16 inch
4шт.
71
19-341
LOCK NUT,3/8" - 16, GB
NUT - lock, 3/8 inch NC
6шт.
72
19-6013
SPACER
- pivot
2шт.
73
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
- hex, 3/8 NC x 1-1/4 inch
6шт.
74
90-6761T1
SUPPORT
BRACKET - shield mount
1шт.
75
90-3484T1
SHIELD
- PTO
1шт.
79
2-7125T1
DECAL
- PTO safety
1шт.
80
19-64
BOLT,Hex, 3/4" - 10 x 7", Gr 5
- hex, 3/4 NC x 7 inch
6шт.
Выбрано товаров: 30
