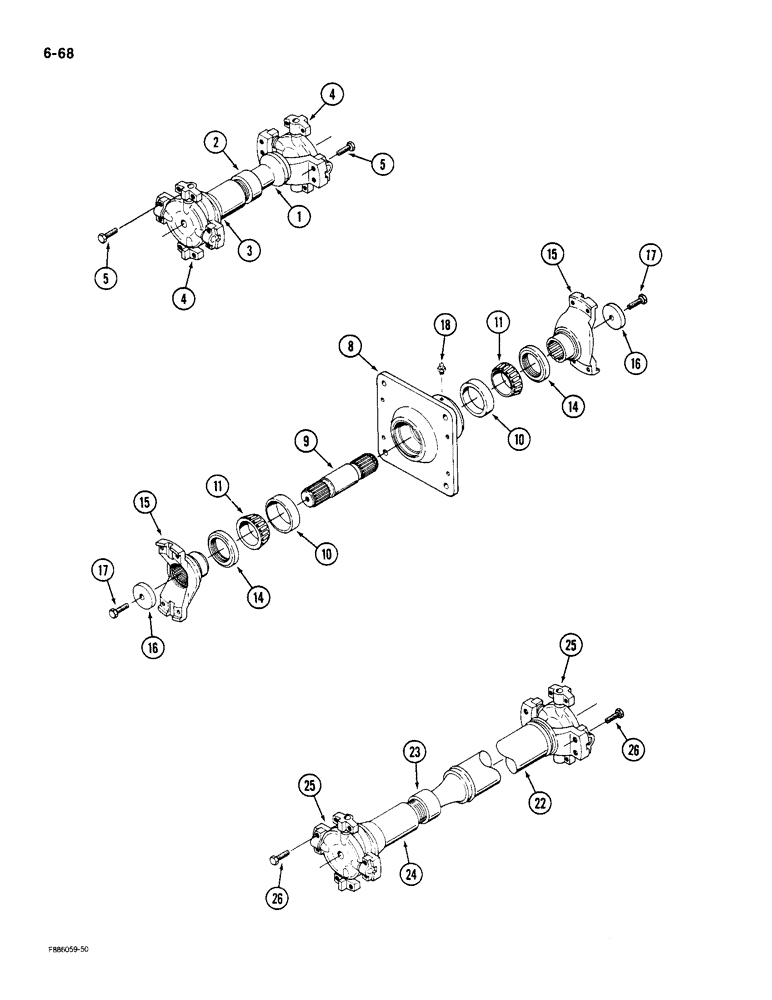

Запчасти Case IH 9180 (6-68) - PTO DRIVE SHAFT (06) - POWER TRAIN

90-6809T91

DRIVE SHAFT

SHAFT ASSEMBLY - drive, front PTO, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - drive shaft

1шт.

2

2-3829T1

SEAL RETAINER

ASSEMBLY - shaft retainer

1шт.

3

NSS

NOT SOLD SEPARAT

YOKE - slip

1шт.

4

90-1907T2

SPIDER ASSY.

U-JOINT - drive shaft, Includes: Ref. 5

2шт.

5

25705R1

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 8

- hex, 3/8 NF x 1-3/4 inch, Grade 8

8шт.

90-6760T91

HANGER

BEARING ASSEMBLY - hanger, Includes: Ref. 8 - 18

1шт.

8

90-6759T1

HOUSING

- hanger bearing

1шт.

9

90-1930T1

SHAFT

- drive, center

1шт.

10

90-1862T1

ROLLER BEARING,2.625" ID x 1.183"

CUP - bearing

2шт.

11

90-1322T1

BEARING, CUP,4.4375" OD x 1.1875"

CONE ASSEMBLY - bearing

2шт.

14

90-1934T2

SEAL

- shaft

2шт.

15

90-4603T1

FORK

YOKE - shaft

2шт.

16

19-5864

WASHER

- flat, hardened

2шт.

17

113-3106

BOLT - hex, 5/8 NC x 1-1/4 inch, Grade 8

2шт.

18

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

FITTING - grease, 1/4 inch NPT

1шт.

90-6810T91

DRIVE SHAFT

SHAFT ASSEMBLY - drive, rear PTO, Includes: Ref. 22 - 26

1шт.

22

NSS

NOT SOLD SEPARAT

TUBE - drive shaft

1шт.

23

2-3829T1

SEAL RETAINER

ASSEMBLY - shaft retainer

1шт.

24

NSS

NOT SOLD SEPARAT

YOKE - slip

1шт.

25

90-1907T2

SPIDER ASSY.

U-JOINT - drive shaft, Includes: Ref. 26

2шт.

26

25705R1

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 8

- hex, 3/8 NF x 1-3/4 inch, Grade 8

8шт.
