Артикул
Название
Примечание
Количество
90-6280T91
CLUTCH
PTO ASSEMBLY (Continued from previous Fig.), Includes: Ref. 1 - 26
1шт.

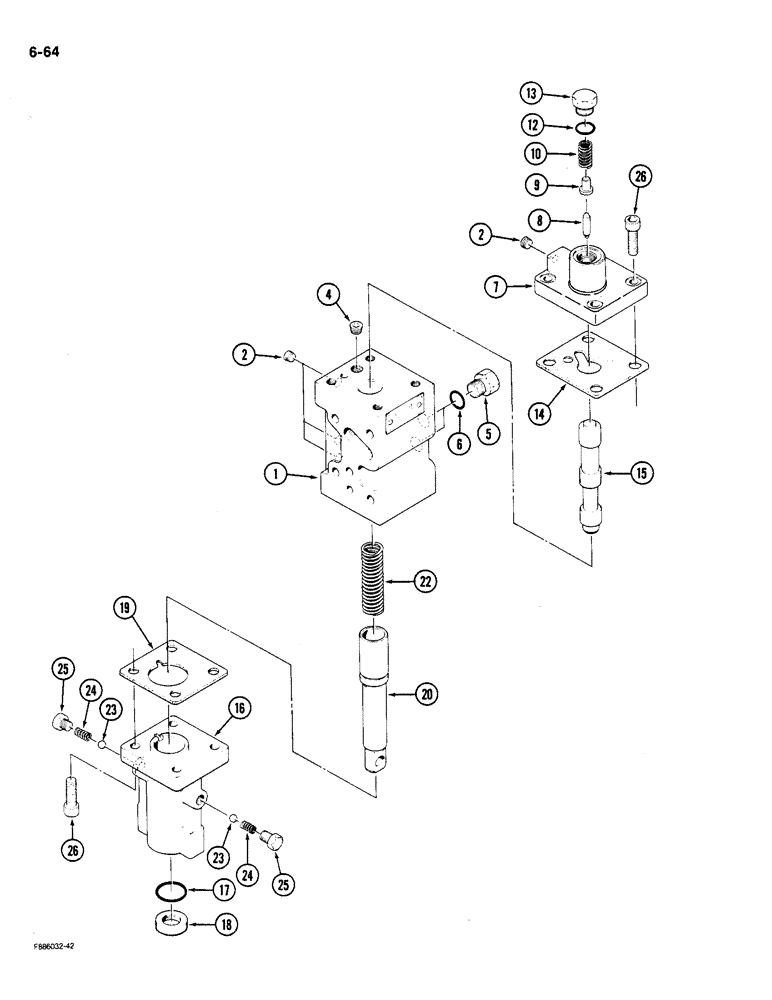

S9500S00F
VALVE
ASSEMBLY - control, PTO, Includes: Ref. 1 - 26
1шт.
1
S9580S00F
BODY
- modulator
1шт.
2
S9720S00F
PLUG
- pipe
4шт.
4
S9730S00F
PLUG
- orifice
1шт.
5
S1390S00F
PLUG
- O-ring boss
2шт.
6
S1320S00F
O-RING
- plug
2шт.
7
S9610S00F
COVER
- valve
1шт.
8
S9620S00F
PISTON
SPOOL - reducing, valve
1шт.
9
S9640S00F
PIN
1шт.
10
S9650S00F
SPRING
- compression
1шт.
12
S9660S00F
GASKET
O-RING - plug
1шт.
13
S9670S00F
PLUG
- O-ring boss
1шт.
14
S9600S00F
GASKET
- cover
1шт.
Part of PTO Overhaul Kit, S9870S00F.
1шт.
15
S9590S00F
PISTON
SPOOL - modulator
1шт.
16
S9550S00F
CAP
COVER - control stem
1шт.
17
S9540S00F
GASKET
O-RING - seal
1шт.
18
S9530S00F
SEAL
- control stem
1шт.
19
S9570S00F
GASKET
- stem cover
1шт.
Part of PTO Overhaul Kit, S9870S00F.
1шт.
20
S9520S00F
STEM
- control
1шт.
22
S9560S00F
SPRING
- compression
1шт.
23
S9690S00F
BALL
- steel
2шт.
24
S9700S00F
SPRING
- compression
2шт.
25
S9710S00F
PLUG
2шт.
26
S9680S00F
SCREW
BOLT - hex
8шт.
S9870S00F
KIT
PTO Overhaul, Includes: Refs. 14 and 19
1шт.
Выбрано товаров: 28
