Артикул
Название
Примечание
Количество
90-6280T91
CLUTCH

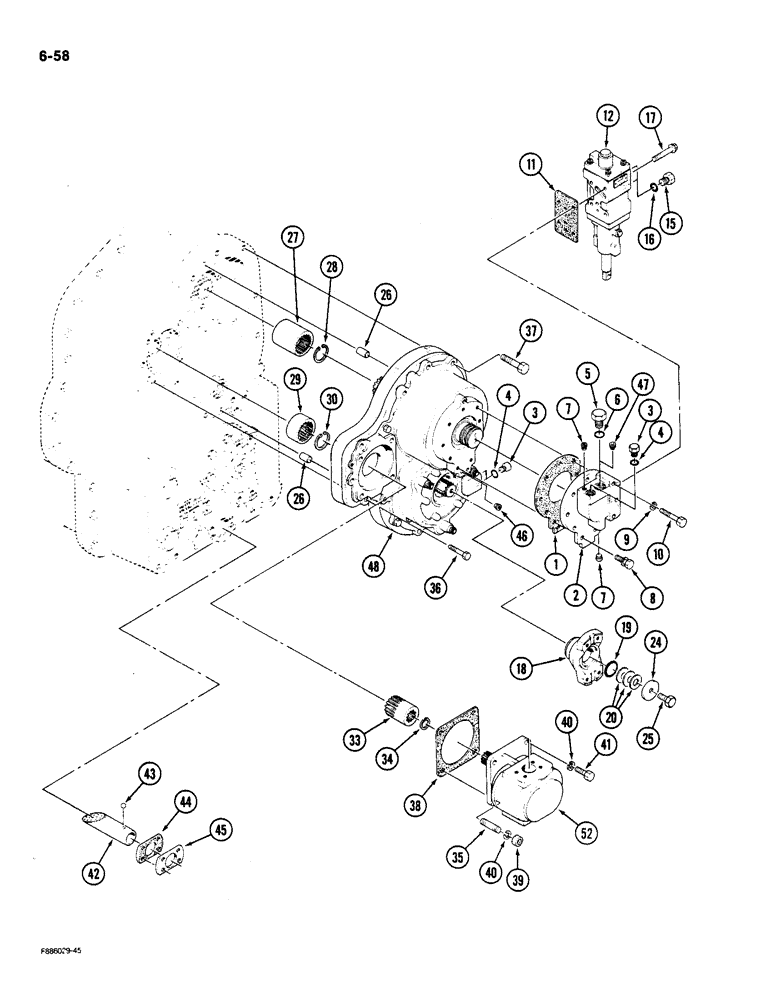

PTO ASSEMBLY, Includes: Ref. 1 - 48
1шт.
1
S8540S00F
GASKET
- servo case
1шт.
Part of PTO Overhaul Kit, S9870S00F.
1шт.
2
S8530S00F
CASE
- PTO servo
1шт.
3
S1030S00F
PLUG
- O-ring boss, Includes: Ref. 4
3шт.
4
S1040S00F
O-RING
- plug
3шт.
Part of PTO Overhaul Kit, S9870S00F.
1шт.
5
S8550S00F
PLUG
- O-ring boss, Includes: Ref. 6
1шт.
6
S8560S00F
GASKET
O-RING - plug
1шт.
Part of PTO Overhaul Kit, S9870S00F.
1шт.
7
STX99700F
PLUG
- pipe
2шт.
8
SM8124030
BOLT
BOLT - hex, M10 x 1.25 x 30 mm
6шт.
9
SM8915140
PLATE, LOCKING
WASHER - lock, M10
3шт.
10
SM8124080
BOLT
BOLT - hex, M10 x 1.25 x 60 mm
3шт.
11
S9510S00F
GASKET
- control valve
1шт.
Part of PTO Overhaul Kit, S9870S00F.
1шт.
12
REF
INSTRUCTION
VALVE ASSEMBLY - PTO control (See Fig. 6-64)
1шт.
15
S1390S00F
PLUG
- O-ring boss, Includes: Ref. 16
2шт.
16
S1320S00F
O-RING
- plug
2шт.
17
SM8120880
BOLT
BOLT - hex, M8 x 1.25 x 80 mm
4шт.
18
S8830S00F
FORK
YOKE - PTO output
1шт.
19
S8950S00F
GASKET
O-RING - yoke seal
1шт.
Part of PTO Overhaul Kit, S9870S00F.
1шт.
20
S9950S00F
SHIM,0.1mm Thk
(0.10 mm), Yoke .004" Thk
1шт.
20
S9960S00F
SHIM,0.31mm Thk
(0.30 mm), Yoke .012" Thk
1шт.
20
S9970S00F
SHIM,0.51mm Thk
(0.50 mm), Yoke .020" Thk
1шт.
20
S9980S00F
SHIM,0.71mm Thk
(0.7 mm), Yoke .028" Thk
1шт.
24
S8860S00F
THRUST WASHER
WASHER - retainer
1шт.
25
SM8134635
BOLT
BOLT - hex, M16 x 1.50 x 35 mm, Grade 10.9
1шт.
26
33-1467T1
DOWEL
PIN - dowel
2шт.
27
S8600S00F
SLEEVE
- drive coupling
1шт.
28
SM922247
RING, SNAP
RING - snap
1шт.
29
33-1452T1
COUPLING
- pump drive
1шт.
30
33-1445T1
RING, SNAP
RING - snap
1шт.
33
S8940S00F
ADAPTER
- pump drive
1шт.
34
33-1447T1
RING, SNAP
RING - snap
1шт.
35
SM8267455
STUD
- M14 x 1.5 x 55 mm
2шт.
36
SM8124280
BOLT
BOLT - hex, M12 x 1.25 x 80 mm
4шт.
37
SM8124290
BOLT
BOLT - hex, M12 x 1.25 x 90 mm
7шт.
38
50-1388T1
GASKET
- pump
1шт.
Part of PTO Overhaul Kit, S9870S00F.
1шт.
39
SM8911244
NUT
- M14 x 1.5
2шт.
40
SM8915144
PLATE, LOCKING
WASHER - lock, M14
4шт.
41
SM8124460
BOLT
BOLT - hex, M8 x 1.50 x 60 mm
2шт.
42
S1520S00F
PIPE
TUBE - oil pickup
1шт.
43
SM1470196
BALL
- steel
1шт.
44
S1620S00F
GASKET
- oil pickup
1шт.
45
S1700S00F
LARGE PLATE
PLATE - suction
1шт.
46
S8930S00F
PLUG
- orifice
1шт.
47
S8920S00F
PLUG
- orifice
1шт.
48
REF
INSTRUCTION
CLUTCH ASSEMBLY - PTO (See Fig. 6-62)
1шт.
52
REF
INSTRUCTION
PUMP - lubrication (See Fig. 6-28)
1шт.
S9870S00F
KIT
PTO Overhaul, Includes: Refs. 1, 4, 6, 11, 19 and 38
1шт.
Выбрано товаров: 53
