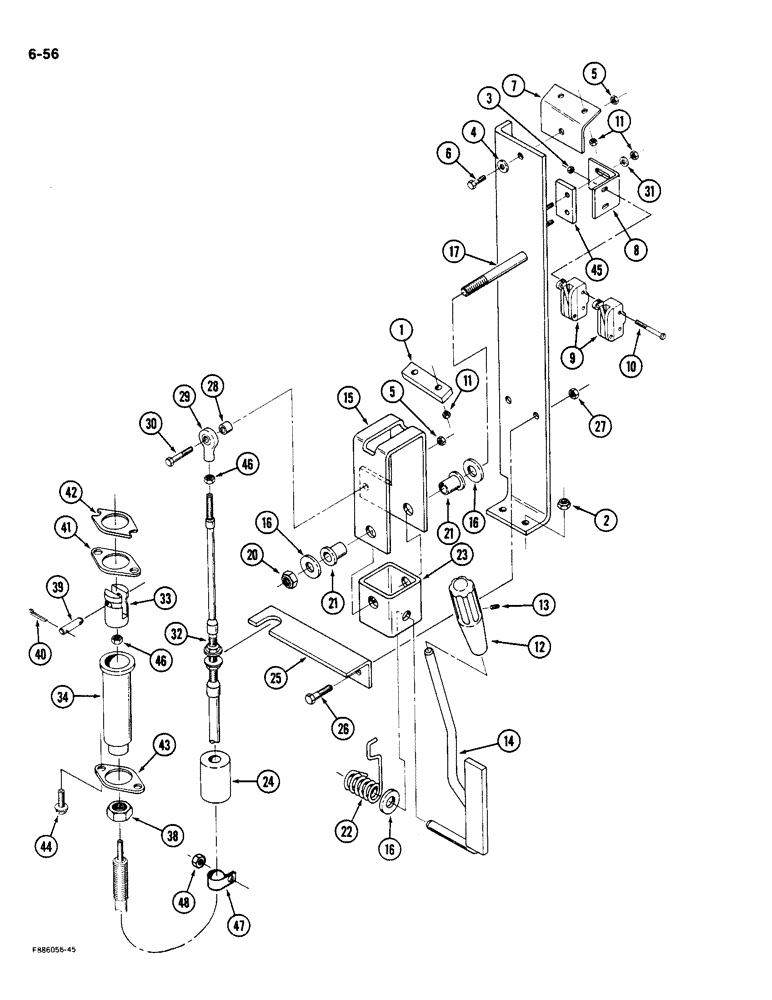

Запчасти Case IH 9180 (6-56) - PTO CONTROLS (IF EQUIPPED) (06) - POWER TRAIN

1

60-4269T1

LARGE PLATE

WEARSTRIP - lever

1шт.

2

231-1445

NUT,5/16"-18, GB

NUT - lock, 5/16 inch NC

2шт.

3

113-3034

NUT - hex, No. 4 NC

2шт.

4

495-21031

WASHER,1/4"

- flat, 1/4 x 3/4 x 1/16 inch

1шт.

5

113-3081

NUT - lock, 1/4 inch NC

2шт.

6

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

7

60-4270T1

SUPPORT

BRACKET - support, consoie to mounting bracket

1шт.

8

60-5608T1

SUPPORT

BRACKET - micro switch mounting

1шт.

9

20-2340T91

IGNITION SWITCH

MICRO SWITCH - neutral safety and PTO tachometer

2шт.

10

470-10428

SCREW,Slotted Pan Hd, #4-40 x 1 3/4"

- machine, round head, No.4 NC x 1-3/4 inch

2шт.

11

19-5563

LOCK NUT

- lock, No. 10 NC

6шт.

12

60-4272T1

HANDLE

KNOB - lever, PTO actuating

1шт.

13

19-5798

SET SCREW

SCREW - set, No. 8 NC x 5/16 inch

1шт.

14

60-4265T2

LEVER

- actuating, PTO

1шт.

15

60-4296T2

SUPPORT

BRACKET - cable actuating

1шт.

16

19-463

WASHER,1/2", SAE

- flat, 1/2 x 1-1/4 x 3/32 inch

3шт.

17

60-5858T1

SUPPORT

BRACKET - mounting, PTO controls

1шт.

20

19-653

LOCK NUT

- lock, 1/2 inch NC

1шт.

21

90-4367T1

BRONZE BUSHING

BUSHING - pivot

2шт.

22

60-4294T1

SPRING

- pressure

1шт.

23

60-4293T1

JOINT

TRUNNION - lever

1шт.

24

60-3705T1

FOAM

SEAL - foam, cab, Serial Range: floor-cable

1шт.

25

60-5020T1

SUPPORT

BRACKET - cable mounting

1шт.

26

25485R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 8

- hex, 5/16 NC x 3/4 inch

2шт.

27

19-5777

LOCK NUT

- lock, 5/16 inch NC

2шт.

28

60-5021T1

SPACER,0.282" ID x 0.500" OD x 0.312" Thk

- rod end

1шт.

29

113-3031

BALL JOINT - PTO cable

1шт.

30

9419008

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

- hex, 1/4 NC x 1-1/4 inch

1шт.

31

113-395

WASHER - flat, No. 10 x 9/16 x 3/64 inch

2шт.

32

60-5726T1

CABLE

- actuating, PTO

1шт.

33

2-4694T1

FORK

YOKE - cable

1шт.

34

2-4692T1

ROPE GUIDE

HOUSING - support, cable

1шт.

38

129-168

JAM NUT,Jam, 3/4"-10, G5

- jam, 3/4 inch NF

1шт.

39

19-6041

PIN

- clevis

1шт.

40

19-6043

COTTER PIN,1/32" x 3/4"

Pin, Split (Cotter) 1/32" x 3/4"

2шт.

41

60-2056T1

GASKET

- retainer

1шт.

42

60-3008T1

SHIM

- adjusting, housing

1шт.

43

2-4693T1

RETAINER

- housing

1шт.

44

19-5852

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT - flanged, 1/4 NC x 3/4 inch

2шт.

45

60-5609T1

SPACER

- switch mounting

1шт.

46

19-936

JAM NUT

- jam, 1/4 inch NF

2шт.

47

31-1775

CLAMP

- cable

1шт.

48

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.
