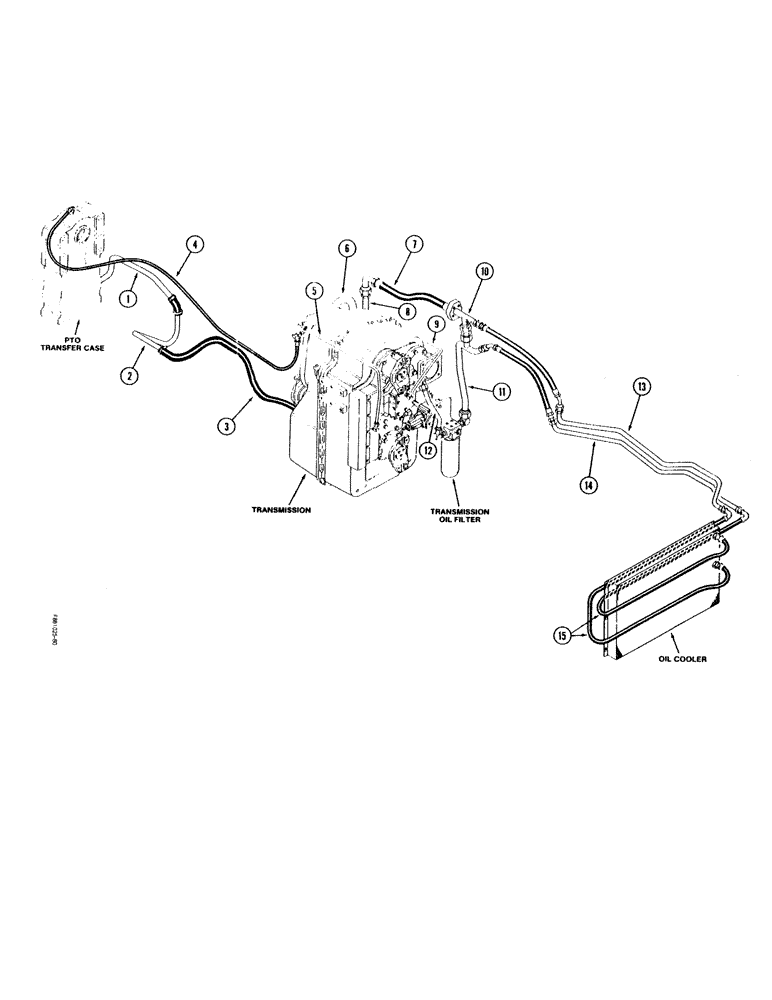

Запчасти Case IH 9180 (1-12) - LUBE HYDRAULICS (00) - PICTORIAL INDEX

1

PTO Transfer Case Return Tube, Fig. 6-50

1шт.

2

PTO Transfer Case Return Tube, Fig. 6-50

1шт.

3

PTO Transfer Case to Transmission Return Hose, Fig. 6-50

1шт.

4

PTO Transfer Case Lubrication Hose, Fig. 6-50

1шт.

5

Transmission Lubrication Tube, Fig. 6-50

1шт.

6

Transmission Pump Suction Tube, Fig. 6-48

1шт.

7

Transmission Pump Pressure Hose, Fig. 6-46

1шт.

8

Hydraulic Pump Pressure Hose, Fig. 6-48

1шт.

9

Transmission Lubrication Tube, Fig. 6-50

1шт.

10

Pump to Cooler Tube Assembly, Fig. 6-46

1шт.

11

Cooler to Filter Tube, Fig. 6-46

1шт.

12

Transmission to Filter Tube, Fig. 6-46

1шт.

13

Oil Cooler Return Tube, Fig. 6-46

1шт.

14

Oil Cooler Inlet Tube, Fig. 6-46

1шт.

15

Oil Cooler Hoses, Fig. 6-46

1шт.
