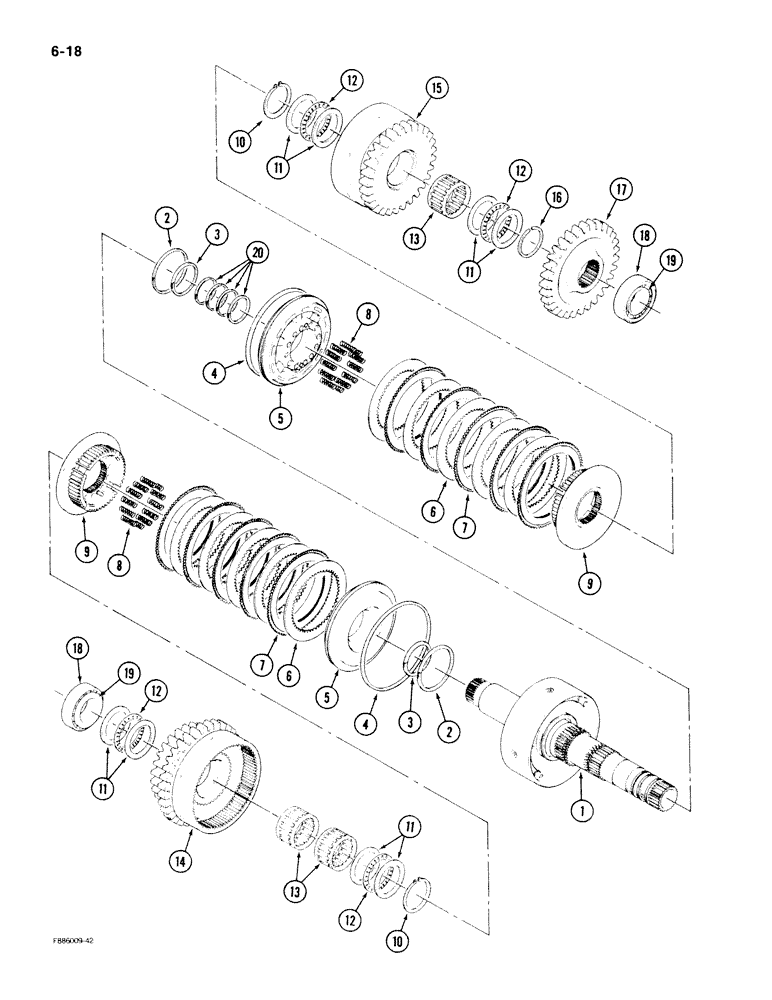

Запчасти Case IH 9180 (6-18) - TRANSMISSION 7 INCH CLUTCH PACK, SECOND (06) - POWER TRAIN

90-6563T91

TRANSMISSION

ASSEMBLY (Continued from previous Fig.), Includes: Ref. 1 - 20

1шт.

S3000S00F

CLUTCH HOUSING

CLUTCH PACK ASSEMBLY - 7 inch, 2nd, Includes: Ref. 1 - 20

1шт.

1

S3900S00F

DRUM SHAFT

SHAFT ASSEMBLY - drum

1шт.

2

S2620S00F

RING

piston

2шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

3

S2610S00F

RING

piston

2шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

4

S2630S00F

RING

sealing

2шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

5

S2180S00F

PISTON

clutch

2шт.

6

S2080S00F

CLUTCH DISC,2.4mm Thk

steel, flat, 2.4 mm thick

1шт.

Steel plates, Ref.6; a total of 18 pieces must be used.

1шт.

6

S2090S00F

CLUTCH DISC,2.1mm Thk

PLATE steel, flat, 2.1 mm thick

1шт.

Steel plates, Ref.6; a total of 18 pieces must be used.

1шт.

7

S2050S00F

LARGE PLATE

PLATE - faced

10шт.

8

S2640S00F

SPRING

- return, piston

24шт.

9

S2850S00F

HUB

- clutch

2шт.

10

S2100S00F

RING, SNAP

RING - snap

2шт.

11

S2200S00F

BEARING WASHER

WASHER - thrust, bearing

8шт.

12

S2230S00F

BEARING

- thrust

4шт.

13

S2210S00F

BEARING, ROLLER

BEARING - needle

3шт.

14

S3040S00F

PINION

GEAR - counter (34 Teeth/26 Teeth)

1шт.

15

S2280S00F

PINION

GEAR - drive (29 Teeth)

1шт.

16

S2240S00F

RING, SNAP

RING - retaining

1шт.

17

S3030S00F

PINION

GEAR - input (31 Teeth)

1шт.

18

1-3296

BEARING CUP,3.7402" OD x 0.9252"

CUP - bearing

2шт.

19

1-3297

ROLLER BEARING,2.1654" ID x 1.1417"

CONE ASSEMBLY - bearing

2шт.

20

S3070S00F

RING

sealing

4шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

S1670S00F

GASKET

KIT Transmission Gasket, Includes: Refs. 2, 3, 4 and 20

1шт.
