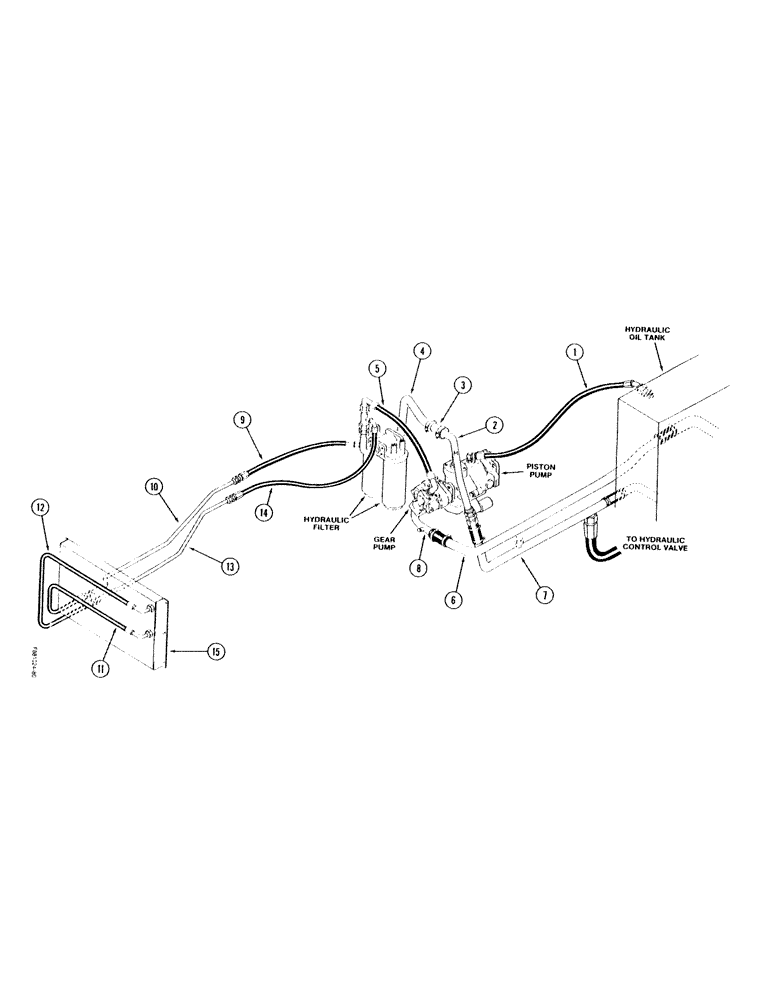

Запчасти Case IH 9180 (1-10) - MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Piston Pump Return Hose, Fig. 8-2

1шт.

2

Filter to Pump to Tank Connection Tube, Fig. 8-2

1шт.

3

Tube Joint, Fig. 8-2

1шт.

4

Filter Inlet Tube, Fig. 8-4

1шт.

5

Gear Pump to Filter Tube Connection Hose, Fig. 8-4

1шт.

6

Gear Pump Supply Tube, Fig. 8-4

1шт.

7

Piston Pump Return Tube, Fig. 8-2

1шт.

8

Gear Pump Supply Connector Tube, Fig. 8-4

1шт.

9

Oil Cooler Return Hose, Fig. 8-6

1шт.

10

Oil Cooler Return Tube, Fig. 8-6

1шт.

11

Oil Cooler Return Connector Hose, Fig. 8-6

1шт.

12

Oil Cooler Supply Connector Hose, Fig. 8-6

1шт.

13

Oil Cooler Supply Tube, Fig. 8-6

1шт.

14

Oil Cooler Supply Hose, Fig. 8-6

1шт.

15

Oil Cooler, Fig. 8-6

1шт.
