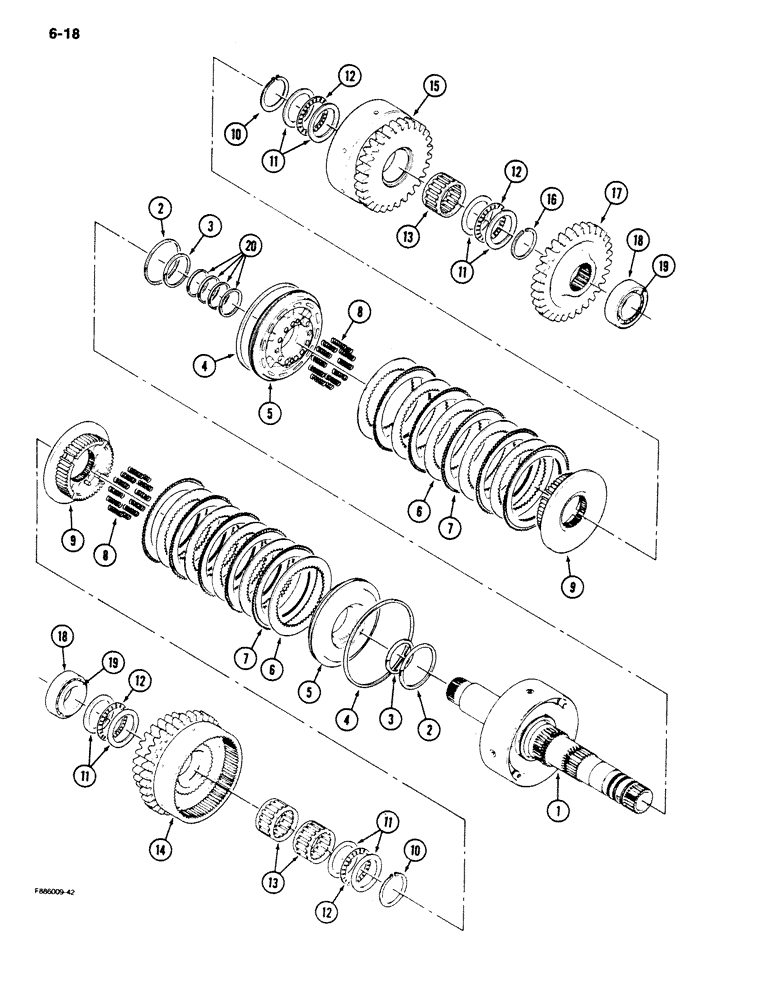

Запчасти Case IH 9170 (6-18) - TRANSMISSION, 7 INCH CLUTCH PACK, SECOND (06) - POWER TRAIN

90-7016T91

GEARBOX ASSY

TRANSMISSION ASSEMBLY (Continued), Includes: Ref. 1 - 20 and clutch pack assembly

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

S3000S00F

CLUTCH HOUSING

CLUTCH PACK ASSEMBLY - 7 inch, 2nd

1шт.

1

S3900S00F

DRUM SHAFT

SHAFT ASSEMBLY - drum

1шт.

2

S2620S00F

RING

RING - piston

2шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

3

S2610S00F

RING

RING - piston

2шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

4

S2630S00F

RING

RING - sealing

2шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

5

S2180S00F

PISTON

PISTON - clutch

2шт.

6

S2080S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK PLATE - steel, flat, 2.4 mm thick

1шт.

Steel plates, Ref.6; a total set of 10 pieces must be used.

1шт.

6

S2090S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK PLATE - steel, flat, 2.1 mm thick

1шт.

Steel plates, Ref.6; a total set of 10 pieces must be used.

1шт.

7

33-1518T1

NOTCHED DISK

PLATE - faced

10шт.

8

S2640S00F

SPRING

SPRING - return, piston

24шт.

9

S2850S00F

HUB

HUB - clutch

2шт.

10

S2100S00F

RING, SNAP

RING SNAP RING - snap

2шт.

11

S2200S00F

BEARING WASHER

WASHER - thrust, bearing

8шт.

12

S2230S00F

BEARING

BEARING - thrust

4шт.

13

S2210S00F

BEARING, ROLLER

BEARING - roller

3шт.

14

S3040S00F

PINION

GEAR - counter (34 Tooth/26 Tooth)

1шт.

15

S2280S00F

PINION

GEAR - drive (29 Tooth)

1шт.

16

S2240S00F

RING, SNAP

RING SNAP RING - retaining

1шт.

17

S3030S00F

PINION

GEAR - input (31 Tooth)

1шт.

18

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

CUP - bearing

2шт.

19

529207R91

BEARING ASSY,54.99mm ID x 29mm W

CONE ASSEMBLY - bearing

2шт.

20

S3070S00F

RING

RING - sealing

4шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.
