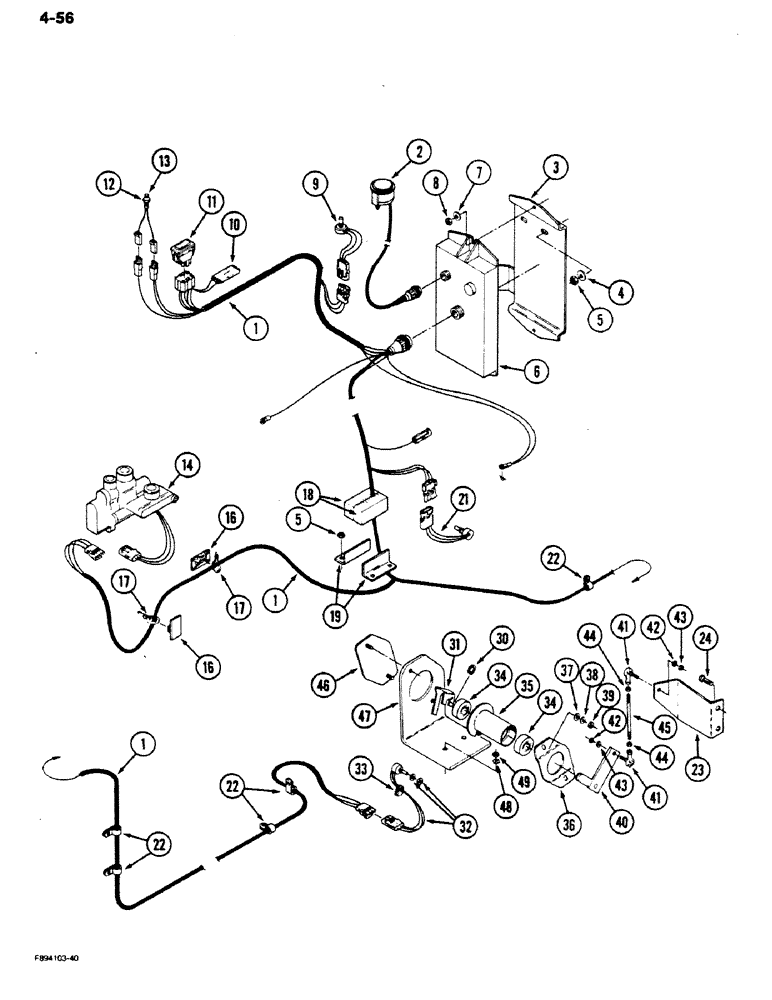

Запчасти Case IH 9170 (4-56) - THREE POINT HITCH HARNESSES (04) - ELECTRICAL SYSTEMS

1

60-6123T1

HARNESS

HARNESS - electronic depth control

1шт.

2

A186064

GAUGE

HARNESS - display, seven segment

1шт.

3

60-6120T1

LARGE PLATE

PLATE, LARGE PLATE - mounting, controller

1шт.

4

28588R1

WASHER

WASHER - flat, 11/32 x 11/16 x 3/64 inch

3шт.

5

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

7шт.

6

60-6136T1

CONTROL

CONTROLLER - three point hitch, electronic

1шт.

60-6136T1C

CORE-MODULE

CORE-MODUL Return Number, CONTROLLER, for N.A. Only

1шт.

7

19-105

WASHER,1/4", SAE

WASHER - flat, 1/4 inch

2шт.

8

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

2шт.

9

A186061

POTENTIOMETER,10,000 Ohm, 8V

Electrical

1шт.

10

22-738

DIODE

DIODE - electrical

1шт.

11

1964753C1

SWITCH

SWITCH - rocker

1шт.

12

60-6111T1

INDICATOR

LIGHT ASSEMBLY - indicator

1шт.

13

23731R1

BULB,C2F, #1893, 14V

BULB - lamp, No.1893

1шт.

14

REF

INSTRUCTION

VALVE - three point hitch (See Figure 8-34)

1шт.

16

22-823

MOUNT

MOUNT - adhesive back, strap

2шт.

17

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP STRAP - tie, 7 inch

1шт.

18

60-6066T1

FOAM

FOAM - sealing

2шт.

19

60-6065T1

ANGLE BAR

ANGLE - retaining, foam

2шт.

21

60-6117T1

POTENTIOMETER

Electrical

1шт.

22

32-161

COLLAR CLAMP

CLAMP - retaining

5шт.

23

60-6192T1

SUPPORT

BRACKET - actuating, three point hitch

1шт.

24

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

60-6196T91

HOUSING ASSY.

Potentiometer, Includes Ref. 30 - 47

1шт.

30

19-5860

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

31

60-6186T1

SUPPORT

Mount, Potentiometer

1шт.

32

60-6117T1

POTENTIOMETER

Electrical

1шт.

33

31-2475

GROMMET

GROMMET - wire protection

1шт.

34

60-6177T1

BALL BEARING,0.7874" ID x 1.8504" OD x 0.5512"

BEARING - ball

2шт.

35

60-6167T1

HOUSING

Potentiometer

1шт.

36

60-6169T1

RETAINER

RETAINER - housing

1шт.

37

19-105

WASHER,1/4", SAE

WASHER - flat, 1/4 inch

2шт.

38

19-890

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, 1/4 inch

2шт.

39

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

2шт.

40

60-6179T1

LEVER

LEVER - actuating

1шт.

41

A75447

BALL JOINT

JOINT - ball, linkage

2шт.

42

19-195

WASHER,#10

WASHER - flat, No. 10 x 9/16 x 3/64 inch

2шт.

43

9411893

LOCK NUT,#10-32, GB

NUT - hex lock, No. 10 inch NF

2шт.

44

19-308

NUT,#10 - 32

NUT - hex, No. 10 NF

2шт.

45

60-6175T1

TRUSS ROD

ROD - actuating

1шт.

46

60-6185T1

LARGE PLATE

PLATE, LARGE PLATE - mounting

1шт.

47

60-6191T1

LARGE PLATE

PLATE, LARGE Mount, Potentiometer Assembly

1шт.

48

19-105

WASHER,1/4", SAE

WASHER - flat, 1/4 inch

2шт.

49

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

2шт.
