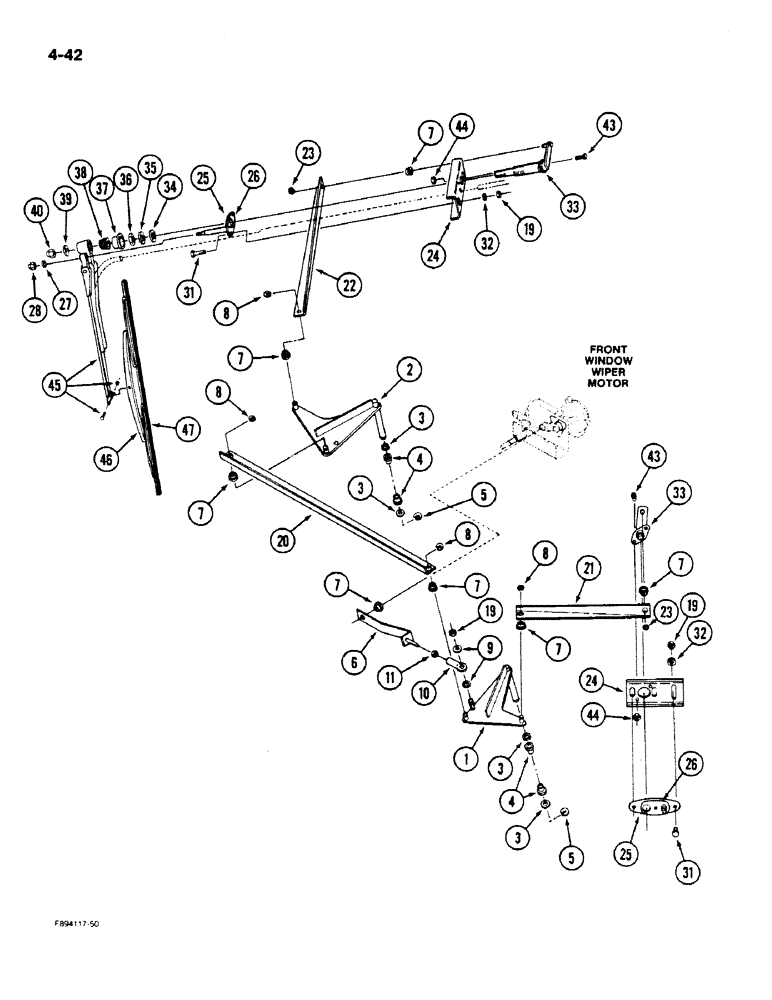

Запчасти Case IH 9170 (4-42) - SIDE WINDOW WIPERS, IF EQUIPPED (04) - ELECTRICAL SYSTEMS

35-1719T91

KIT

- wiper, side and rear with window washer, Includes: Ref. 1 - 47

1шт.

Wiper Kit also includes the parts shown on Figures 4-44 - 4-46.

1шт.

1

60-5903T1

SUPPORT

BRACKET - pivot, left

1шт.

2

60-5904T1

SUPPORT

BRACKET - pivot, right

1шт.

3

19-5370

WAVE WASHER

- wave, 7/16 inch

4шт.

4

19-6263

NYLON BEARING,0.38" ID x 0.59" OD x 0.38"

BEARING - flanged

4шт.

5

19-5866

RING, SNAP

RING - snap, main pivots

2шт.

6

60-5898T1

POWER ARM

ARM - link, actuating

1шт.

7

19-6262

RING RACE

BEARING - snap in

7шт.

8

19-5992

RING, SNAP

RING - snap

4шт.

9

60-5994T1

SPACER

- ball joint

2шт.

10

19-1031

GASKET

BALL JOINT - actuating, 1/4 inch NF

1шт.

11

19-89

NUT,1/4"-28, G5

- hex, 1/4 inch NF

1шт.

19

111626C1

NUT

- hex lock, 1/4 inch NC

5шт.

20

60-5899T1

ANGLE BAR

ANGLE - actuating, front

1шт.

21

60-5900T1

ANGLE BAR

ANGLE - actuating, left

1шт.

22

60-5901T1

ANGLE BAR

ANGLE - actuating, right

1шт.

23

1-2685

CLIP

- spring

2шт.

24

60-5902T1

SPACER

- shaft, pivot

2шт.

60-1436T91

PIVOT ASSY.

PIVOT KIT - wiper blade, Includes: Ref. 25 - 28

2шт.

25

NSS

NOT SOLD SEPARAT

PIVOT - body and shaft, wiper blade

2шт.

26

NSS

NOT SOLD SEPARAT

GASKET - pivot

2шт.

27

2-4191T1

WASHER

- lock

2шт.

28

2-4192T1

NUT

- hex, cap

2шт.

31

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

- hex, 1/4 NC x 1-1/2 inch

4шт.

32

19-105

WASHER,1/4", SAE

- flat, 1/4 inch

4шт.

F96719

SHAFT

DRIVE - shaft and pivot arm, Includes: Ref. 33 - 40

2шт.

33

NSS

NOT SOLD SEPARAT

SHAFT - wiper pivot

2шт.

34

D71417

SPECIAL WASHER

WASHER - flat

2шт.

35

D71418

WASHER

- flat

2шт.

36

D71419

NUT

- hex jam

2шт.

37

1-9419

CAP

- seal, shaft

2шт.

38

D71421

TOOL

DRIVER - knurled

2шт.

39

1-9422

WASHER

- lock

2шт.

40

D71422

NUT

- hex, cap

2шт.

43

463-41012

SCREW,Slot Hex Wash Hd, #10-24 x 3/4"

- machine, flanged, No. 10 NC x 3/4 inch

4шт.

44

19-351

NUT,#10 - 24, GA

NUT - hex lock, No. 10 NC

4шт.

45

60-1144T1

WIPER ARM

ARM - wiper, 17 inch

2шт.

46

60-1145T91

WIPER BLADE

BLADE ASSEMBLY - wiper, Includes: Ref. 47

2шт.

47

2-4194T1

WIPER BLADE

BLADE - wiper, rubber, 18 inch

2шт.
