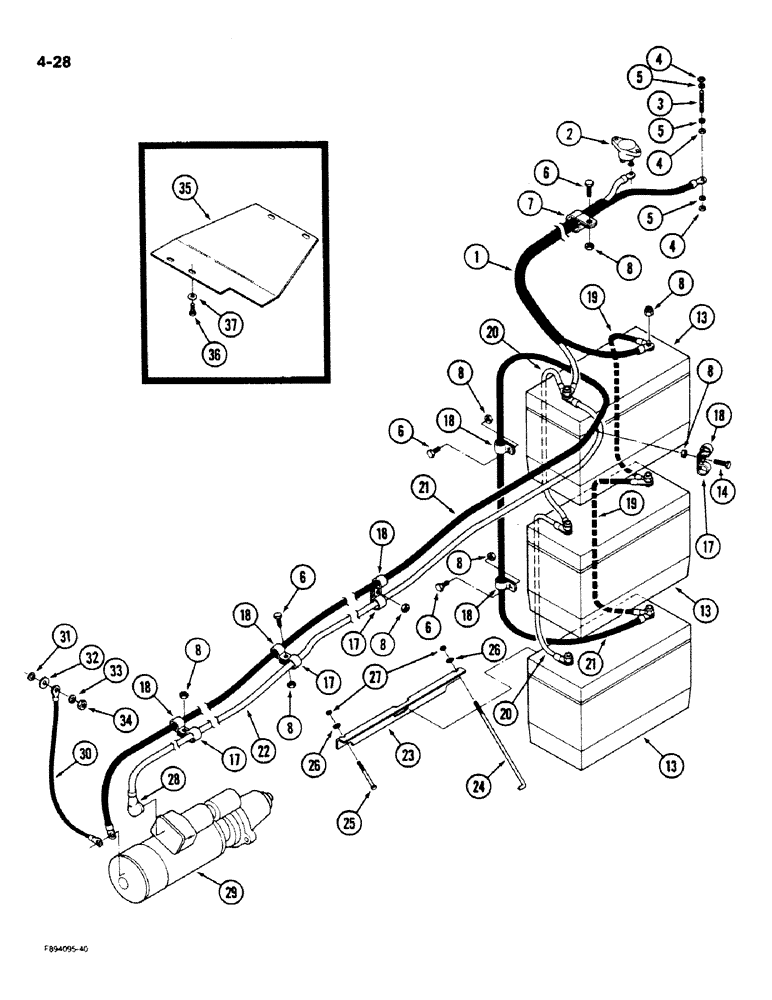

Запчасти Case IH 9170 (4-28) - BATTERIES AND CABLES (04) - ELECTRICAL SYSTEMS

1

20-2458T1

HARNESS

ASSEMBLY - cab power

1шт.

2

20-2041T1

CIRCUIT-BREAKER

CIRCUIT BREAKER - electrical

1шт.

3

60-1880T1

STUD

- ground

1шт.

4

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

5

19-115

LOCK WASHER,1/4"

1/4"

4шт.

6

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

4шт.

7

32-343

MOUNTING CLIP

CLAMP - retaining

1шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

13шт.

13

BMF31FS

DRY BATTERY

BATTERY - tractor, 12 volt

3шт.

14

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

17

32-161

COLLAR CLAMP

CLAMP - retaining

4шт.

18

299567C1

CLAMP,7/8", Insul, 3/8" Bolt

- retaining

6шт.

19

20-2459T1

CABLE

- battery

2шт.

20

20-2094T2

CABLE

- battery

2шт.

21

20-2456T1

CABLE

- battery

1шт.

22

20-2457T1

CABLE

- battery

1шт.

23

70-5548T1

ANGLE BAR

BRACKET - angle

3шт.

24

1-1946

TRUSS ROD

ROD - battery retaining

3шт.

25

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

3шт.

26

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

6шт.

27

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

6шт.

28

20-2424T1

BOOT

- cable end

1шт.

29

REF

INSTRUCTION

STARTER - engine (See Figures 4-30 - 4-32)

1шт.

30

22-33

CABLE

- starter, ground

1шт.

31

19-517

LOCK WASHER,Ext Tooth, 5/8"

WASHER - lock, external tooth, 5/8 inch NC

1шт.

32

25711R1

WASHER

- flat, 21/32 x 1-5/16 x 5/32 inch

1шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

34

19-81

NUT,1/2"-13, G5

- hex, 1/2 inch NC

1шт.

35

60-4661T1

COVER

- cab power supply

1шт.

36

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

37

19-105

WASHER,1/4", SAE

- flat, 1/4 inch

4шт.
