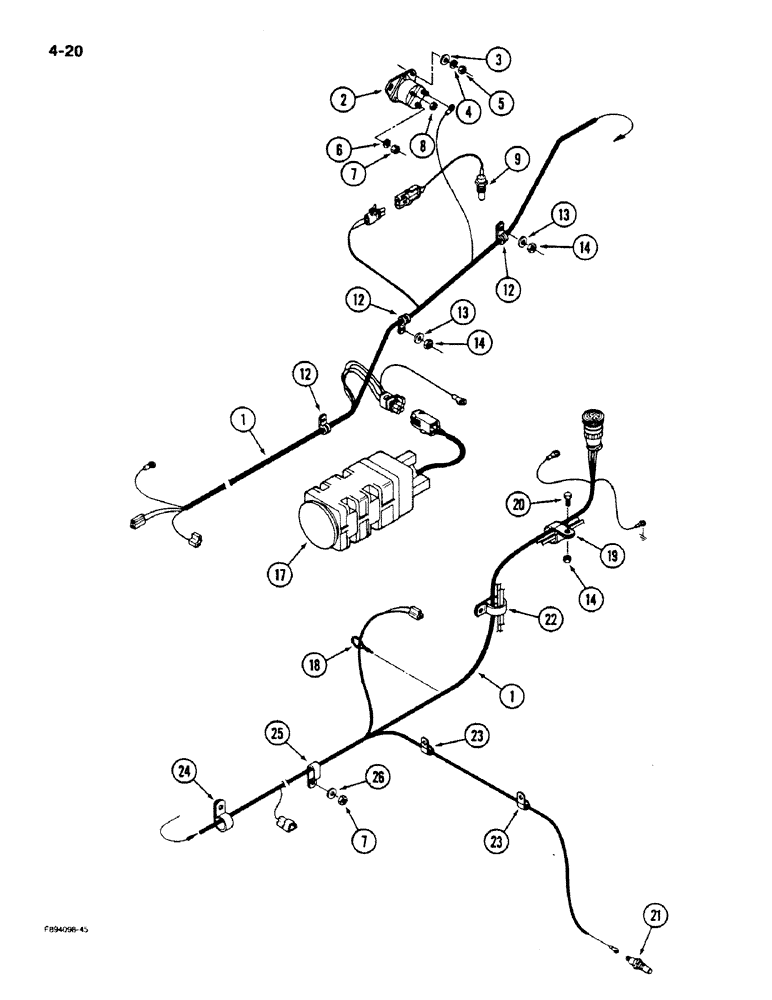

Запчасти Case IH 9170 (4-20) - FRONT FRAME HARNESS (04) - ELECTRICAL SYSTEMS

1

60-6100T2

HARNESS

ASSEMBLY - front frame

1шт.

2

A39079

SOLENOID

SWITCH - magnetic

1шт.

3

19-105

WASHER,1/4", SAE

- flat, 1/4 inch

2шт.

4

19-115

LOCK WASHER,1/4"

1/4"

2шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

6

19-116

LOCK WASHER,5/16"

5/16"

2шт.

7

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

8

19-481

SERRATED NUT

- keps, No. 10 NF

1шт.

9

1964538C1

SWITCH

- temperature

1шт.

12

31-1775

CLAMP

- retaining

3шт.

13

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

17

REF

INSTRUCTION

SENSOR - speed, ground (See Figure 4-60)

1шт.

18

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

19

32-343

MOUNTING CLIP

CLAMP - retaining

1шт.

20

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

1шт.

21

20-1989T1

SWITCH

- temperature

1шт.

22

31-1349

MOUNTING CLIP

CLAMP - retaining

1шт.

23

22-628

CABLE CLIP

CLIP - harness, retaining

2шт.

24

31-1348

CLAMP

- retaining

1шт.

25

31-1070

CLAMP,5/8", 3/8" Bolt, Double

- retaining

1шт.

26

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.
