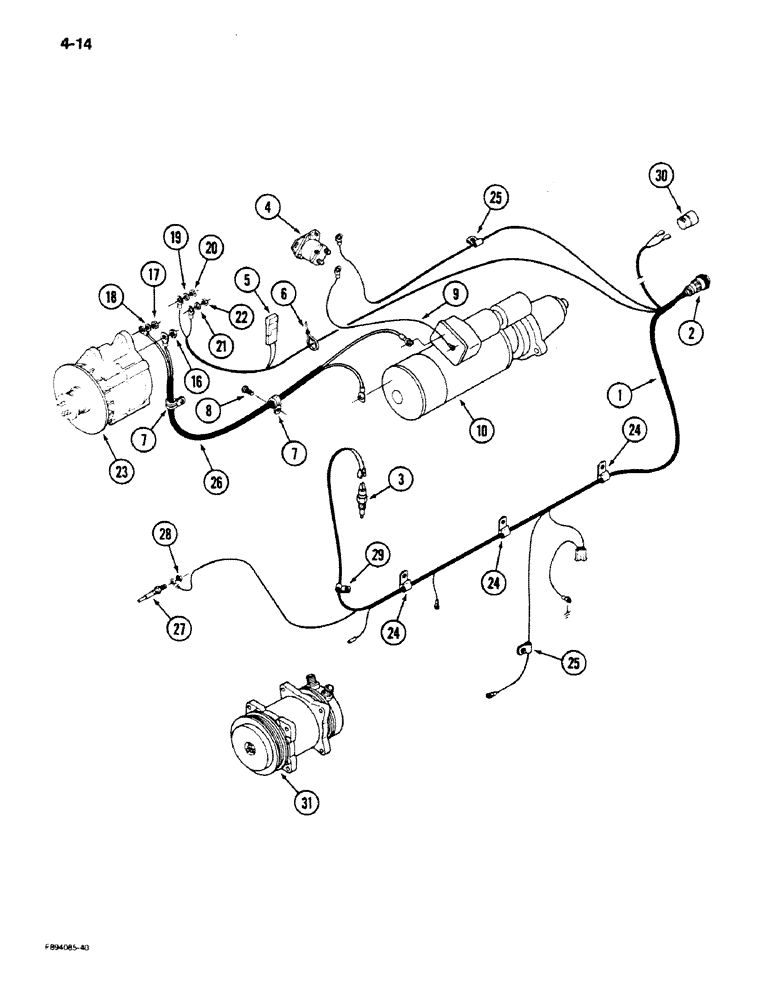

Запчасти Case IH 9170 (4-14) - ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

60-6105T2

HARNESS

ASSEMBLY - engine, Includes: Ref. 2

1шт.

2

1301191C1

CONNECTION

RING - lock, connector

1шт.

3

20-1676T1

SWITCH

- temperature, sender

1шт.

4

REF

INSTRUCTION

SWITCH - magnetic (See Figure 4-20)

1шт.

5

60-6251T1

DIODE

- electrical

1шт.

6

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

7

31-1776

MOUNTING CLIP

CLAMP - retaining

2шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

9

20-2463T1

ELECTRICAL WIRE

WIRE ASSEMBLY -, Serial Range: starter-switch

1шт.

10

REF

INSTRUCTION

STARTER - engine (See Figures 4-30 and 4-32)

1шт.

16

231-4117

LOCK NUT,7/16"-14, GB

NUT - lock, 7/16 inch NC

1шт.

17

40-1229

NUT,M6, Cl 8

- hex, 6 mm

1шт.

18

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

19

893-11005

LOCK WASHER,Ext Tooth, M5

WASHER - lock, 5 mm, external tooth..,1

1шт.

20

825-1405

NUT,M5, Cl 8

- hex, 5 mm, Grade 10

1шт.

21

19-602

LOCK WASHER,Ext, #8

WASHER - lock, 8 mm

1шт.

22

825-1104

NUT,M4, Cl 8

- hex, 4 mm

1шт.

23

REF

INSTRUCTION

ALTERNATOR - engine (See Figure 4-34)

1шт.

24

22-628

CABLE CLIP

CLIP - harness, retaining

3шт.

25

31-1862

CLAMP

- retaining

2шт.

26

60-6096T1

HARNESS

- alternator

1шт.

27

A145513

SENSOR

- level, coolant

1шт.

28

19-481

SERRATED NUT

- keps, No. 10 NF

1шт.

29

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining

1шт.

30

A172784

RESTRICTION SWITCH

SWITCH - air restriction

1шт.

31

REF

INSTRUCTION

COMPRESSOR - air conditioning

1шт.
