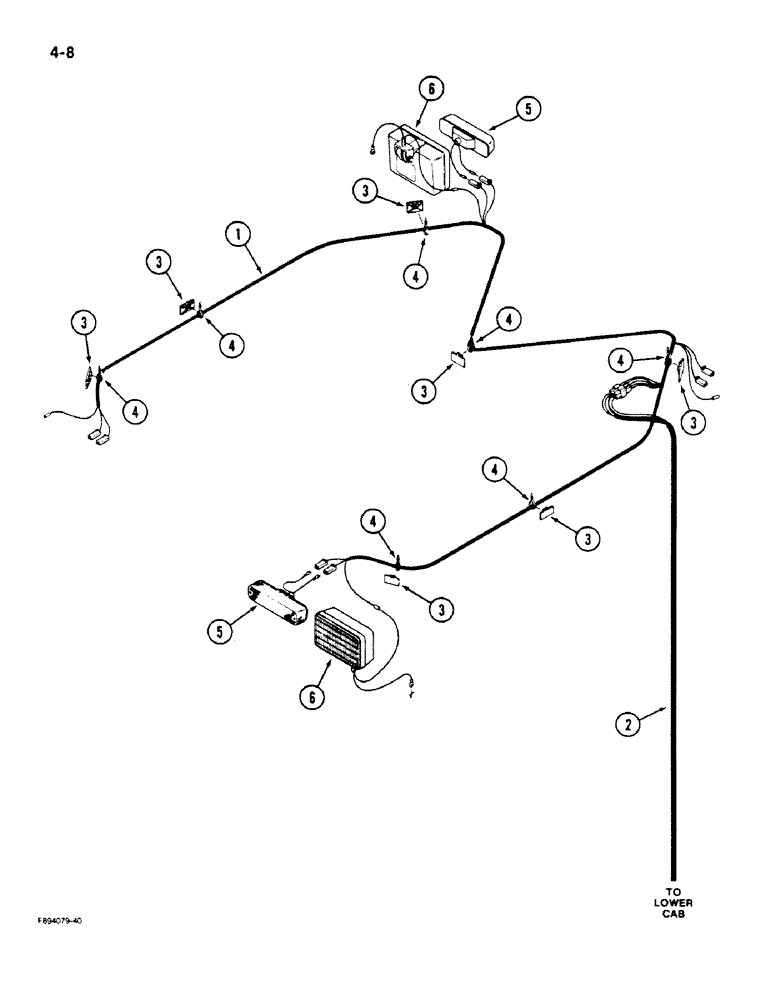

Запчасти Case IH 9170 (4-08) - OVERHEAD CAB HARNESS, ROPS (04) - ELECTRICAL SYSTEMS

1

20-2483T1

HARNESS

- overhead

1шт.

2

60-6109T2

HARNESS

- main cab (See Figure 4-4)

1шт.

3

22-823

MOUNT

MOUNT - adhesive back, strap

7шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

5

REF

INSTRUCTION

LIGHT ASSEMBLY - warning (See Figure 4-36)

4шт.

6

REF

INSTRUCTION

LIGHT ASSEMBLY - field (See Figure 4-36)

4шт.
