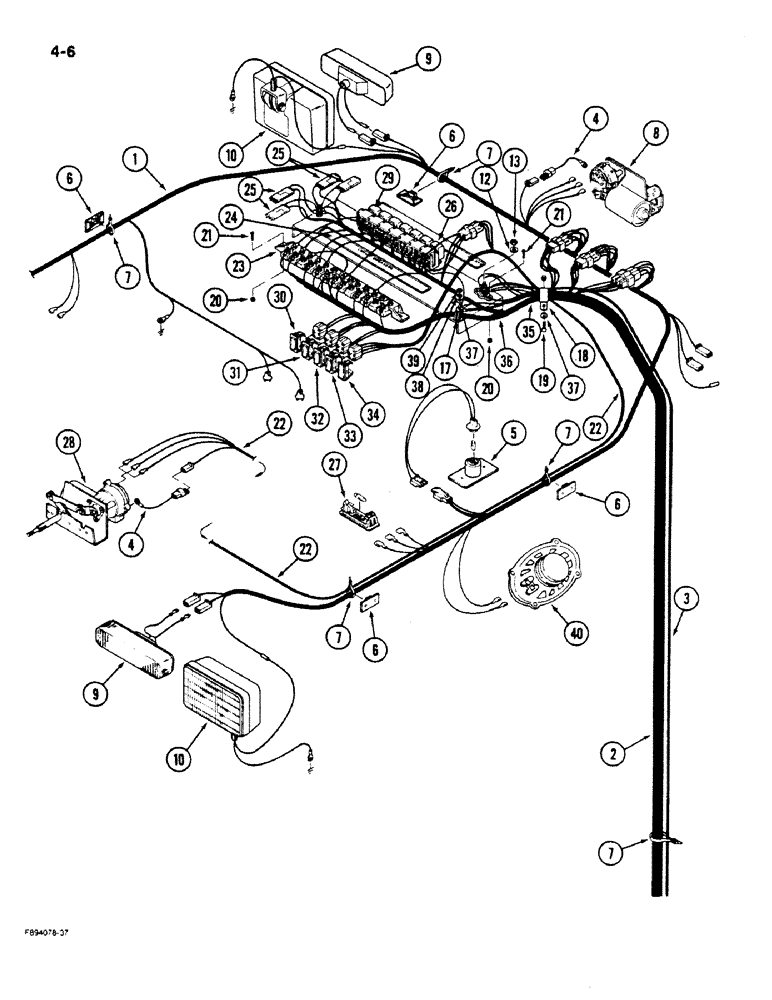

Запчасти Case IH 9170 (4-06) - OVERHEAD CAB HARNESS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
60-6093T2
HARNESS
ASSEMBLY - overhead
1шт.
2
60-6088T2
HARNESS
ASSEMBLY - main cab (See Figure 4-2)
1шт.
3
60-6300T1
HARNESS
ASSEMBLY - overhead power
1шт.
4
20-1452T1
ELECTRICAL WIRE
WIRE ASSEMBLY - motor ground
2шт.
5
REF
INSTRUCTION
LIGHT ASSEMBLY - console (See Figure 9-82)
1шт.
6
22-823
MOUNT
MOUNT - adhesive back, strap
6шт.
7
22-824
CABLE TIE,3/16" x 7 1/4"
STRAP - tie, 7 inch
1шт.
8
REF
INSTRUCTION
DRIVE ASSEMBLY - wiper (See Figure 4-40)
1шт.
9
REF
INSTRUCTION
LIGHT ASSEMBLY - warning (See Figure 4-36)
4шт.
10
REF
INSTRUCTION
LIGHT ASSEMBLY - field (See Figure 4-36)
4шт.
12
19-5577
LOCK WASHER
- lock, brass, 3/8 inch
1шт.
13
115772
NUT
- hex, brass, 3/8 inch NC
1шт.
17
31-1776
MOUNTING CLIP
CLAMP - retaining
1шт.
18
31-1348
CLAMP
- retaining
1шт.
19
19-2
BOLT,Hex, 1/4" - 20 x 1", Gr 5
- hex, 1/4 NC x 1 inch
1шт.
20
19-481
SERRATED NUT
- keps, No. 10 NF
4шт.
21
182-520
SCREW,Sl Pan Hd, #10 - 24 x 1 1/2"
- machine, pan, No. 10 NC x 1/2 inch
4шт.
22
20-2502T1
HARNESS
- rear wiper
1шт.
23
REF
INSTRUCTION
BREAKER ASSEMBLY - circuit (See Figure 4-10)
1шт.
24
60-6297T1
DECAL
- circuit breaker
1шт.
26
60-6298T1
DECAL
- overhead relay
1шт.
27
REF
INSTRUCTION
LIGHT ASSEMBLY - dome (See Figure 9-86)
1шт.
28
REF
INSTRUCTION
DRIVE ASSEMBLY - rear wiper (See Figure 4-46)
1шт.
29
1-7877
RELAY
- electrical
7шт.
30
1964752C1
SWITCH
- rocker, master light
1шт.
31
245012C1
SWITCH
- rocker, dash light
1шт.
32
1964751C1
SWITCH
- rocker, ether start
1шт.
33
1964755C1
SWITCH
- rocker, rear wiper
1шт.
34
60-3210T1
PLUG
- switch hole
1шт.
35
280129
NUT,1/4"-20
NUT - hex lock, 1/4 inch NC
1шт.
36
20-1451T1
BLOCK
- junction
1шт.
37
195-102
WASHER,1/4"
- flat, 5/16 x 3/4 x 1/16 inch
3шт.
38
19-115
LOCK WASHER,1/4"
1/4"
2шт.
39
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
3шт.
40
REF
INSTRUCTION
SPEAKER - radio (See Figure 4-38)
2шт.
