Запчасти Case IH 9170 (4-04) - LOWER CAB HARNESS, ROPS (04) - ELECTRICAL SYSTEMS

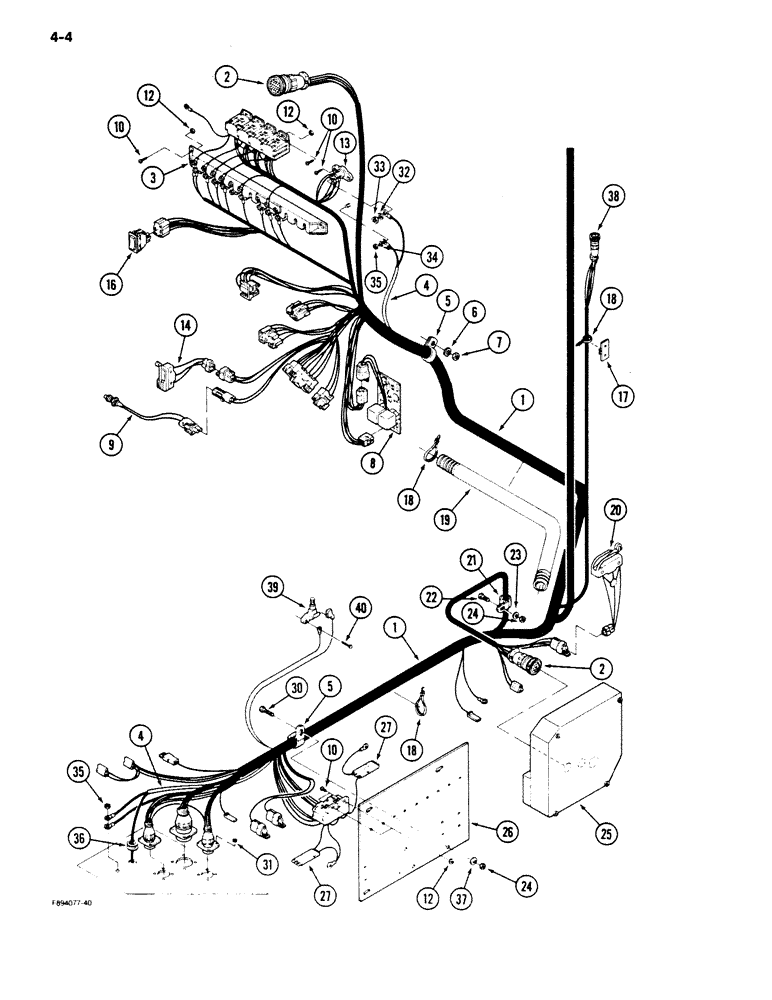

Схема запчастей Case IH 9170 - (4-04) - LOWER CAB HARNESS, ROPS (04) - ELECTRICAL SYSTEMS
18
4
19
1
27
24
40
12
30
10
9
1
17
16
38
13
7
18
18
21
35
14
12
12
31
32
37
25
6
2
33
5
23
8
36
4
10
22
3
20
26
35
5
39
27
10
34
2
24

Артикул

Название

Примечание

Количество

1

60-6109T2

HARNESS

ASSEMBLY - main cab, Includes: Ref. 2

1шт.

2

1301191C1

CONNECTION

RING - lock, connector

2шт.

3

REF

INSTRUCTION

BRACKET - mounting, circuit breaker (See Figure 4-10)

1шт.

4

60-6301T1

HARNESS

ASSEMBLY - relay power

1шт.

5

31-1348

CLAMP

- retaining

1шт.

6

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

7

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

1шт.

8

REF

INSTRUCTION

FLASHER ASSEMBLY - time base (See Figure 4-58)

1шт.

9

60-6027T1

SENSOR

ASSEMBLY - proximity (See Figure 6-38)

1шт.

10

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- machine, pan, No. 10 NF x 1/2 inch

8шт.

12

19-481

SERRATED NUT

- keps, No. 10 NF

8шт.

13

20-1451T1

BLOCK

- junction

1шт.

14

20-2340T91

IGNITION SWITCH

SWITCH - micro, clutch (See Figure 6-44)

1шт.

16

1964752C1

SWITCH

- lighting

1шт.

17

22-823

MOUNT

MOUNT - adhesive back, strap

1шт.

18

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

19

50-2962T1

CONDUIT

PROTECTOR - flexguard (Order protector S119717 and, Serial Range: cut-length)

1шт.

20

60-6059T91

IGNITION SWITCH

SWITCH - mode lever (See Figure 6-34)

1шт.

21

32-161

COLLAR CLAMP

CLAMP - retaining

1шт.

22

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

23

19-105

WASHER,1/4", SAE

- flat, 1/4 inch

1шт.

24

280129

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

2шт.

25

REF

INSTRUCTION

CONTROLLER ASSEMBLY - transmission (See Figure 6-32)

1шт.

26

REF

INSTRUCTION

PLATE - relay mounting (See Figure 4-12)

1шт.

27

22-738

DIODE

- electrical

2шт.

30

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

31

19-5564

LOCK NUT,#6-32, GB

NUT - hex lock, No. 6 NC

12шт.

32

19-5577

LOCK WASHER

- lock, 3/8 inch

1шт.

33

115772

NUT

- hex, brass, 3/8 inch NC

1шт.

34

19-115

LOCK WASHER,1/4"

1/4"

1шт.

35

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

36

22-766

GROMMET

- protective

1шт.

37

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

38

60-6127T1

CONNECTION

LOCK RING - connector

1шт.

39

20-2316T1

SWITCH

- park brake (See Figure 7-4)

1шт.

40

19-6216

SCREW - tapping, hex, No. 8 NC x 1 inch

1шт.
