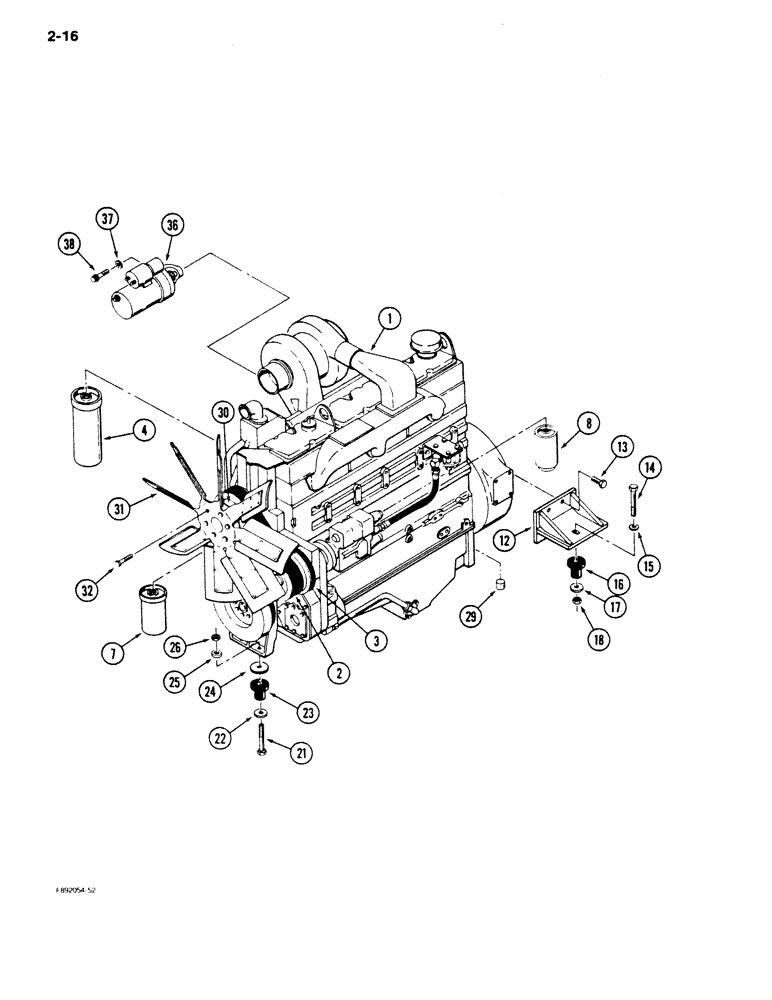

Запчасти Case IH 9170 (2-16) - ENGINE MOUNTING AND ATTACHING PARTS (02) - ENGINE

1

90-7075T91

ENGINE ASSEMBLY

- NTA-855-A BCIII, 335 horsepower (9170 and Panther), Includes: Ref. 2 - 8

1шт.

1

90-7076T91

ENGINE ASSEMBLY

- NTA-855-A BCIII, 375 horsepower (9180 and Lion), Includes: Ref. 2 - 8

1шт.

2

2-4432T1

SET OF BELTS

2, V-Belt

1шт.

3

90-2383T1

BELT,43.60" L, 6 Ribs

V, Water pump 43.60" L, 6 Ribs

1шт.

4

90-7101T1

FILTER, ENGINE OIL

ELEMENT - filter, oil

1шт.

7

A77544

FILTER

- coolant conditioner, service

1шт.

8

90-3941T1

SEPARATOR

FILTER - fuel

1шт.

12

90-1545T1

MOUNTING PARTS

MOUNT - engine, left

1шт.

12

90-1546T1

MOUNTING PARTS

MOUNT - engine, right

1шт.

13

19-822

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, Full Thd

- hex, 5/8 NC x 1-1/2 inch, Grade 8

8шт.

14

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

15

19-712

WASHER,3/4", SAE

- flat, 3/4 x 1-1/2 x 1/8 inch

2шт.

16

47-4172

SHOCK ABSORBER

MOUNT - rubber, isolator

2шт.

17

19-112

WASHER,3/4"

- flat, 3/4 x 2 x 9/64 inch

2шт.

18

19-85

LOCK NUT

- hex lock, 3/4 inch NC

2шт.

21

19-256

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

22

19-408

WASHER

- flat, 5/8 x 2-1/2 x 3/16 inch

2шт.

23

24-231

RUBBER MOUNTING

MOUNT - isolator, rubber

2шт.

24

51-128

WASHER

- flat, 5/8 x 3-1/2 x 3/16 inch

2шт.

25

67872C1

WASHER

- flat, hardened, 21/32 x 1-1/4 x 1/4 inch

2шт.

26

19-222

LOCK NUT,5/8" - 11, GB

NUT - hex lock, 5/8 inch NC

2шт.

29

90-6414T1

PLUG

- flywheel housing

1шт.

30

90-3569T1

SPACER

- fan

1шт.

31

90-4238T1

FAN

- engine

1шт.

32

24867R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

- hex, 1/2 NC x 3-1/2 inch, Grade 8

6шт.

36

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figures 4-30 and 4-32)

1шт.

37

19-912

WASHER

- flat, 5/8 x 1-3/16 x 3/16 inch

3шт.

38

19-907

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

BOLT - 12 point, 5/8 NC x 2 inch, Grade 8

3шт.

90-1375T1

SET OF BELTS,0.53" W x 45.92" L

V-Belt, Alternator 0.53" W x 45.92" L

2шт.
