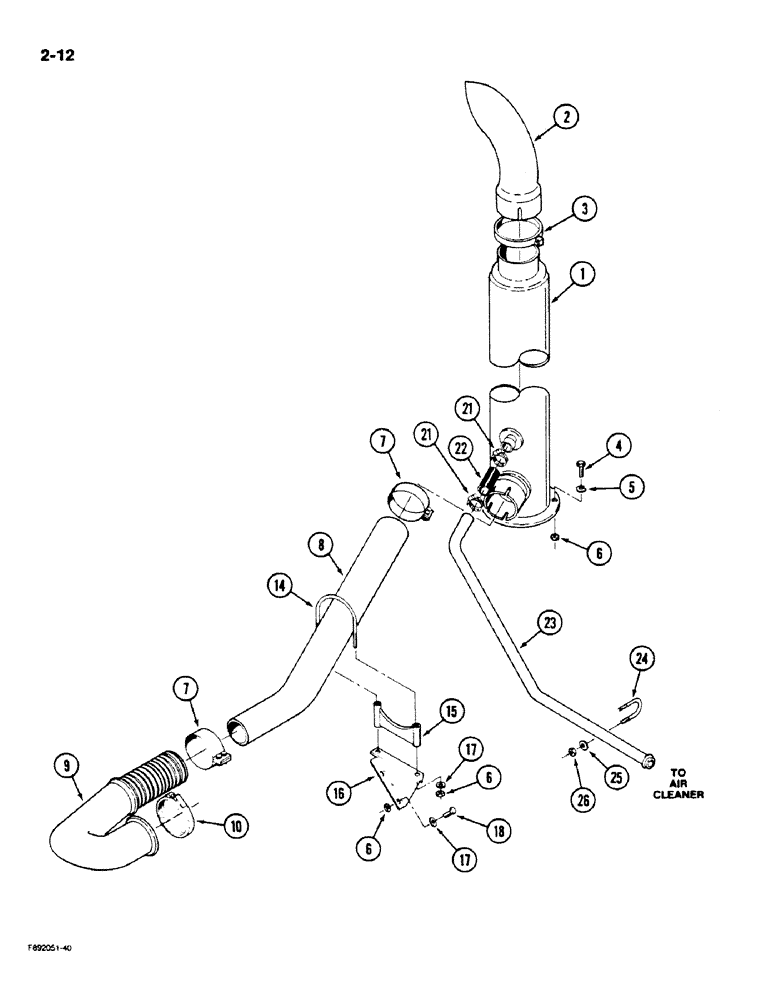

Запчасти Case IH 9170 (2-12) - EXHAUST SYSTEM (02) - ENGINE

1

90-2914T2

MUFFLER

- exhaust, engine

1шт.

2

45-255

MUFFLER

STACK - exhaust, muffler

1шт.

3

32-341

CLAMP

- exhaust

1шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

5

492-11038

LOCK WASHER,3/8"

3шт.

6

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

7шт.

7

31-1061

MOUNTING CLIP

CLAMP ASSEMBLY - exhaust

2шт.

8

90-7099T1

EXHAUST SYSTEM PIPE,5 mm OD x 52.53, 4.5 mm L

TUBE - exhaust

1шт.

9

90-5775T1

EXHAUST SYSTEM PIPE

TUBE - elbow, exhaust

1шт.

10

31-1316

MOUNTING CLIP

CLAMP - exhaust

1шт.

14

32-322

U-BOLT,3/8" - 16 x 6.62"

CLAMP - U-bolt, exhaust support

1шт.

15

32-323

STIRRUP

SADDLE - clamp, U-bolt

1шт.

16

90-7100T1

SUPPORT

BRACKET - clamp mounting

1шт.

17

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

18

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

21

32-25

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP - hose, 1-13/16 to 2-3/4 inch

2шт.

22

31-2409

HOSE,2.00" ID

Aspirator Tube to Muffler 2.00" ID

1шт.

23

90-2921T1

TUBE,2 mm OD

- aspirator, exhaust to air cleaner

1шт.

24

19-1049

U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L

Clamp, Aspirator tube 5/16"-18 x 2 5/16" x 3"

1шт.

25

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

26

19-508

LOCK NUT

- hex lock, 5/16 inch NC

2шт.
