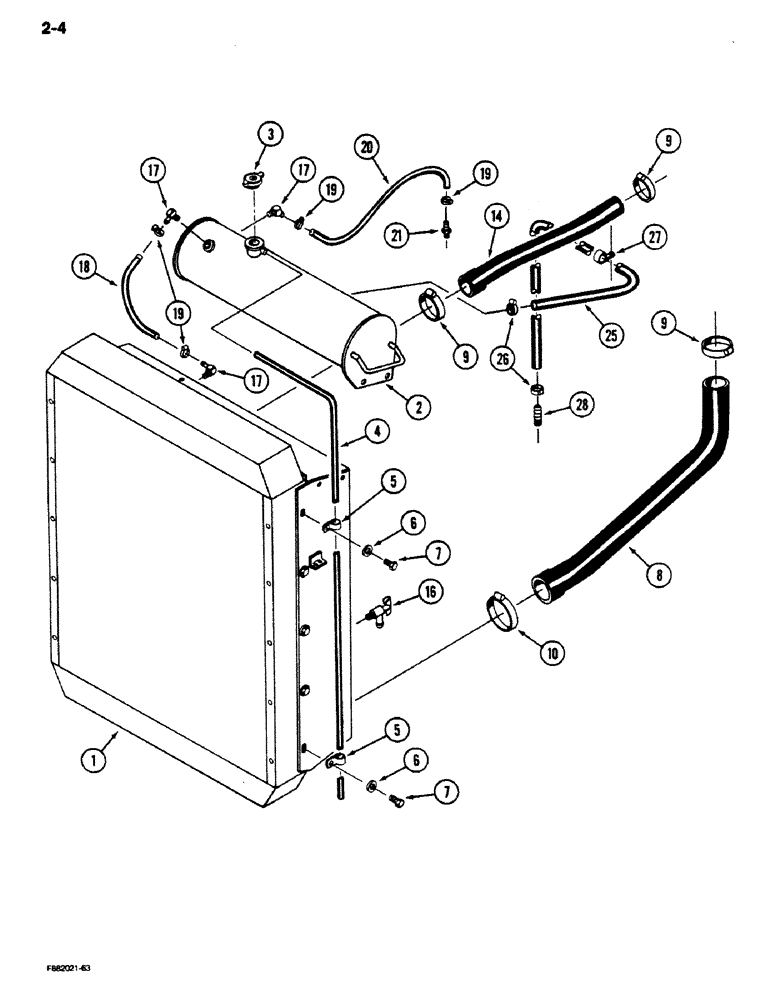

Запчасти Case IH 9170 (2-04) - RADIATOR AND ATTACHING PARTS (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
90-7043T91
RADIATOR
ASSEMBLY - cooling system (9170 and Panther)
1шт.
1
90-7044T91
RADIATOR
ASSEMBLY - cooling system (9180 and Lion)
1шт.
2
90-6817T2
RESERVOIR
TANK - fill, radiator
1шт.
3
80889R91
COVER
CAP - radiator
1шт.
4
31-1260
HOSE,0.25" ID x 57.00"
Overflow (Order hose 31-1259T1 and cut to length) 0.25" ID x 57.00"
1шт.
5
31-2173
CLIP
CLAMP - hose
2шт.
6
25707R1
WASHER,.281" x 5/8" x .075", HDN
- flat, hardened
2шт.
7
113-1
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
2шт.
8
90-6821T1
RADIATOR HOSE,2.50" ID, 3.00" ID x 26.37", SAE 20R4
Lower 2.50" ID, 3.00" ID x 26.37", SAE 20R4
1шт.
9
70-5522T1
COLLAR CLAMP
CLAMP - hose, 2 to 3 inch
3шт.
10
70-5521T1
COLLAR CLAMP
CLAMP - hose, 2-13/16 to 3-3/4 inch
1шт.
14
90-6822T1
RADIATOR HOSE,2.25" ID, 2.50" ID x 20.64", SAE 20R4
Upper 2.25" ID, 2.50" ID x 20.64", SAE 20R4
1шт.
16
31-159
COCK, DRAIN
VALVE - drain, radiator, 90 degree
1шт.
17
31-2737
ELBOW
ADAPTER - 90 degree, 1/8 PT x 1/4 inch
3шт.
18
31-2781
HOSE,6.4 mm ID x 146.10 mm
Tank to Radiator 6.4 mm ID x 146.10 mm
1шт.
19
32-59
HOSE CLAMP,#4, 0.25/0.62 Type M Worm
CLAMP - hose, 1/4 to 5/8 inch
4шт.
20
31-2742
HOSE,6.4 mm ID x 553.40 mm
Tank to Engine; Order A21561X, and Cut to Required Length 6.4 mm ID x 553.40 mm
1шт.
21
31-615
ROD, CONNECTING
ADAPTER - straight, 1/8 PT x 1/4 inch
1шт.
25
31-2791
HOSE,1.00" ID x 33.00"
Tank to Engine; Order 31-1502, and Cut to Required Length 1.00" ID x 33.00"
1шт.
26
32-27
HOSE CLAMP,#20, 0.81/1.75 Type F Worm
CLAMP - hose, 13/16 to 1-3/4 inch
2шт.
27
1-2191
MOUNTING CLIP
CLAMP - hose
1шт.
28
31-248
FITTING
ADAPTER - straight, 1 PT x 1 inch hose
1шт.
8
214-274
HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm
adj., includes screw, Incl. Ref. 21 #4, 0.25/0.62 Type F Worm
1шт.
21
90-6834T1
FOAM
- mounting band (order 2-6617T2)
2шт.
A145513
SENSOR
low coolant
1шт.
Выбрано товаров: 26
