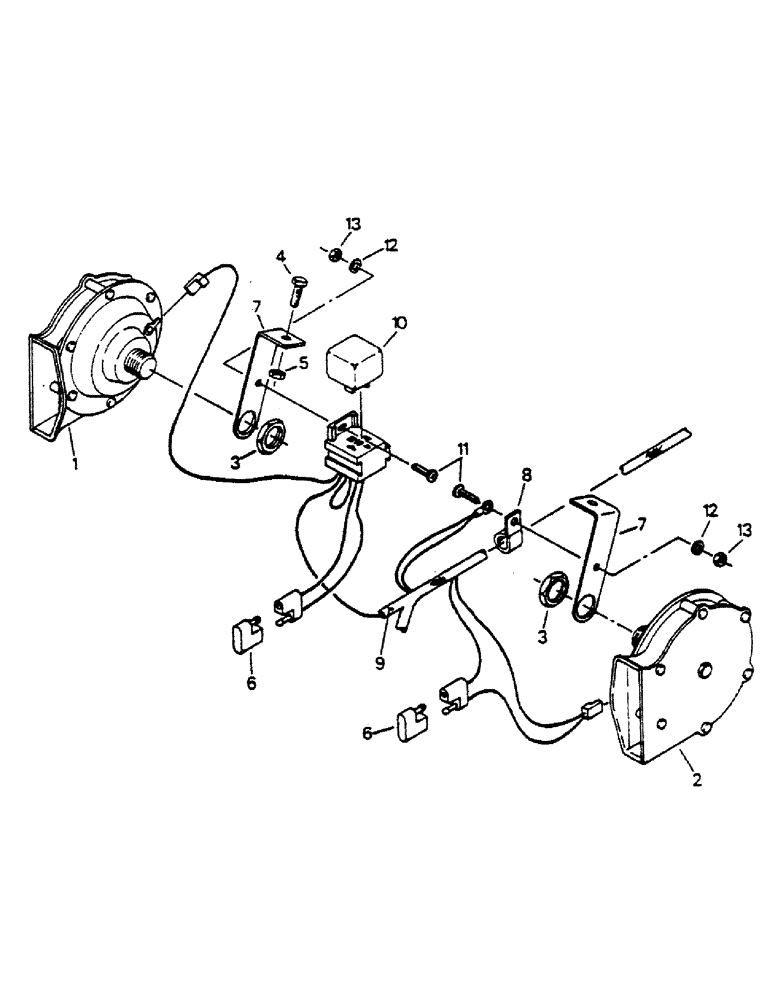

Запчасти Case IH 9170 (02-21) - HORN AND MOUNTING (06) - ELECTRICAL

1

29-1002

HORN

1шт.

2

29-1003

HORN

1шт.

3

19-1002

SPECIAL NUT

7/8 UNEF

2шт.

4

19-288

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

CAPSCREW, 5/16 UNC x 5/8 G-5

2шт.

5

19-508

LOCK NUT

LOCK NUT, 5/16 UNC G-B

2шт.

6

22-738

DIODE

2шт.

7

29-1004

BRACKET

HORN BRACKET

2шт.

8

18-633

COLLAR CLAMP

CLAMP

1шт.

9

20-1888T1

HARNESS

HORN WIRE HARNESS

1шт.

10

20-2133T1

RELAY

1шт.

11

340-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

MACHINE SCREW, #10 UNC x 3/4

2шт.

12

19-297

LOCK WASHER,#10

Washer, Lock, #10

2шт.

13

19-567

NUT,#10-24

#10 UNC

2шт.
