(02-20) - GAUGE PANEL ASSEMBLY, VEHICLE WARNING SYSTEM

Запчасти Case IH 9170 (02-20) - GAUGE PANEL ASSEMBLY, VEHICLE WARNING SYSTEM (06) - ELECTRICAL

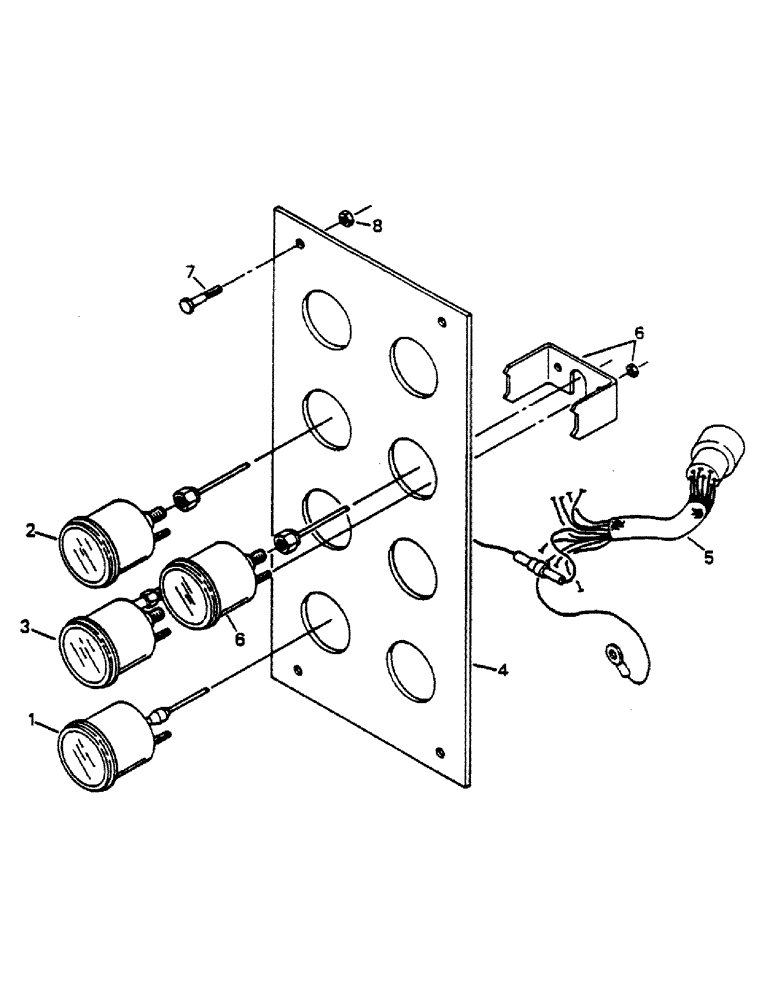

Схема запчастей Case IH 9170 - (02-20) - GAUGE PANEL ASSEMBLY, VEHICLE WARNING SYSTEM (06) - ELECTRICAL
2
1
6
3
5
6
4
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

60-5618T91

PANEL

GAUGE PANEL ASSY, Includes: Ref. 1 - 8

1шт.

1

20-1392T1

GAUGE

HYDRAULIC TEMP GAUGE

1шт.

2

20-1387T1

GAUGE

ENGINE AIR FILTER GAUGE

1шт.

3

20-1388T1

GAUGE

HYDRAULIC FILTER GAUGE

1шт.

4

70-2336T1

ANCHOR

GAUGE MOUNT

1шт.

5

20-1419T1

PANEL

WIRE HARNESS

1шт.

6

20-1389T1

GAUGE

HYDRAULIC PRESS. GAUGE

1шт.

7

9419004

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

CAPSCREW, 1/4 UNC x 3/4 G-5

4шт.

8

19-1081

LOCK NUT

LOCK NUT, 1/4 UNC G-A

4шт.
