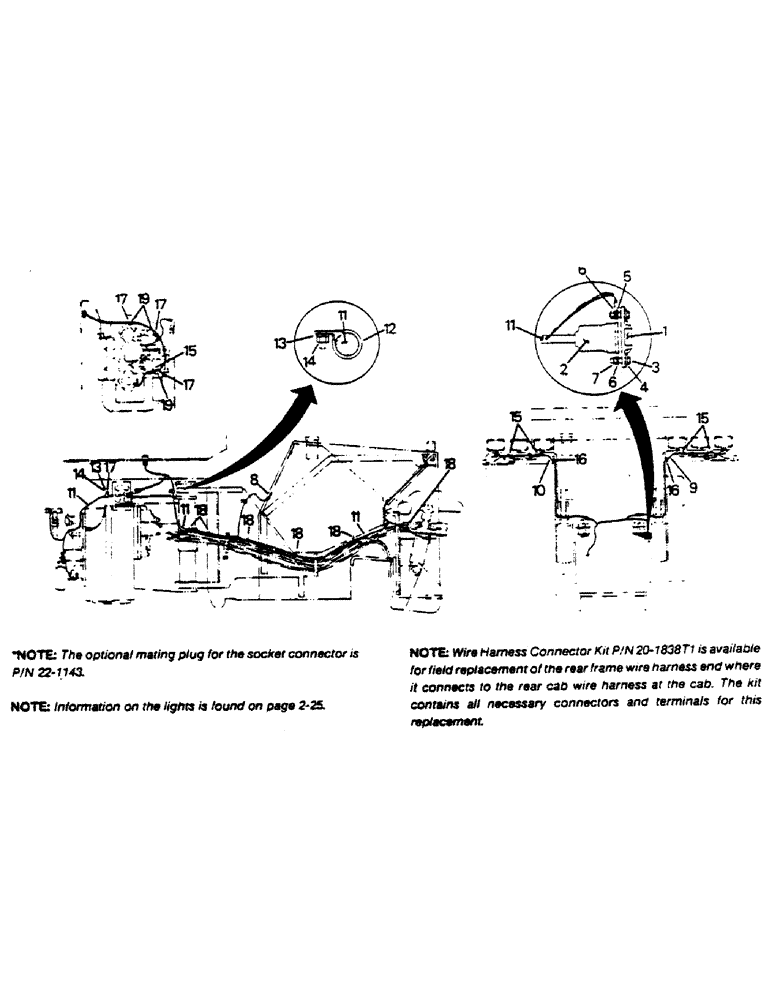

Запчасти Case IH 9170 (02-17) - REAR FRAME ELECTRICAL (06) - ELECTRICAL

1

22-789

SOCKET

CONNECTOR

1шт.

The optional mating plug for the socket connector is P/N 22-1143

1шт.

2

22-790

COVER

BOOT

1шт.

3

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW, 5/16 UNC x 1 G-5

2шт.

4

19-106

WASHER,5/16", SAE

5/16

2шт.

5

19-605

LOCK WASHER,Ext Tooth, 5/16"

5/16

1шт.

6

19-116

LOCK WASHER,5/16"

5/16"

2шт.

7

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

2шт.

8

FUEL GAUGE SENDER ASSY (See Fig. 2-18)

1шт.

9

20-1076T2

HARNESS

LAMP WIRE HARNESS (Right)

1шт.

10

20-1075T2

HARNESS

LAMP WIRE HARNESS (Left)

1шт.

11

20-2378T1

HARNESS

REAR FRAME WIRE HARNESS

1шт.

Wire Harness Connector Kit P/N 20-1838T1 is available for field replacement of the rear frame wire harness end where it connects to the rear cab wire harness at the cab. The kit contains all necessary connectors and terminals for this replacement. Information on the lights is found on Fig. 2-25.

1шт.

12

31-1776

MOUNTING CLIP

CLAMP

1шт.

13

19-115

LOCK WASHER,1/4"

1/4"

2шт.

14

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

2шт.

15

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

5шт.

16

31-2242

GROMMET

2шт.

17

22-1109

CLAMP

4шт.

18

31-2600

STRAP

CLAMP

6шт.

19

EXISTING HARDWARE

1шт.
