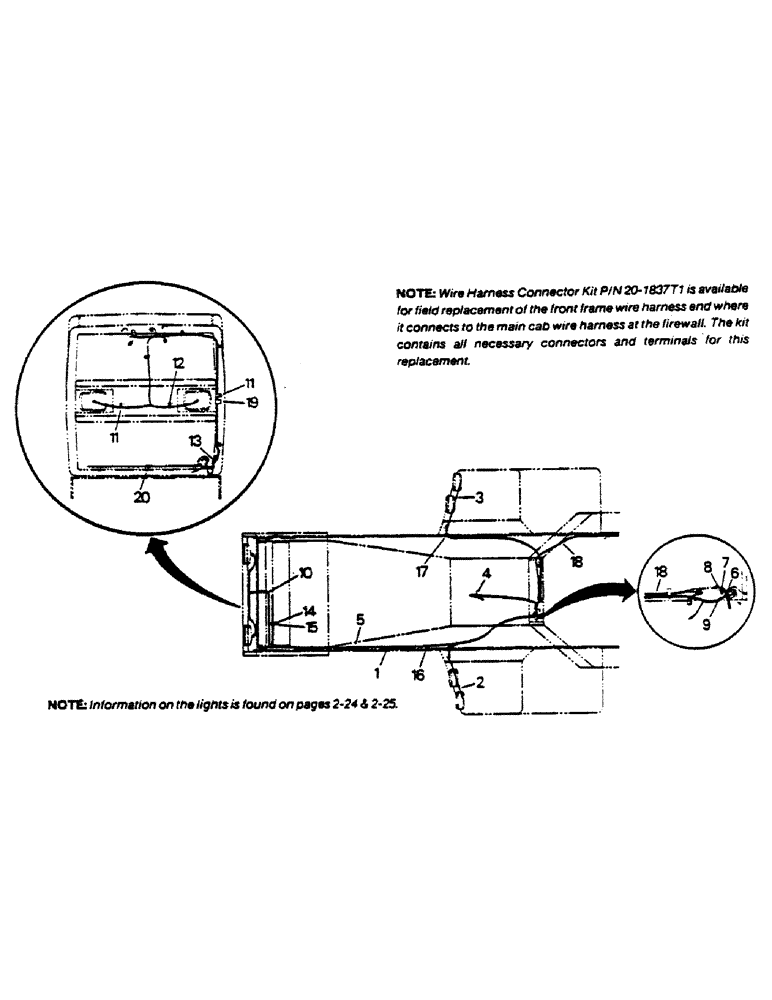

Запчасти Case IH 9170 (02-16) - FRONT FRAME ELECTRICAL (06) - ELECTRICAL

1

20-1898T2

HARNESS

FRONT FRAME WIRE HARNESS

1шт.

Wire Harness Connector Kit P/N 20-1837T1 is available for field replacement of the front frame wire harness end where it connects to the main cab wire harness at the firewall. The kit contains all necessary connectors and terminals for this replacement. Information on the lights is found on Fig. 2-24 & 2-25.

1шт.

2

20-1318T1

HARNESS

LAMP WIRE HARNESS (Left)

1шт.

3

20-1319T1

HARNESS

LAMP WIRE HARNESS (Right)

1шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

5шт.

5

22-633

CLIP

3шт.

6

18-633

COLLAR CLAMP

CLAMP

1шт.

7

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW, 1/4 UNC x 3/4 G-5

1шт.

8

19-115

LOCK WASHER,1/4"

1/4"

1шт.

9

19-76

NUT,1/4"-20, G5

1/4 UNC

1шт.

10

20-1888T1

HARNESS

HEADLAMP & HORN WIRE HARNESS

1шт.

11

22-635

MOUNTING CLIP

CLIP

7шт.

12

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

TAPPING SCREW, 1/4 UNC x 1/2

3шт.

13

20-1742T1

ELECTRICAL WIRE

WIRE

1шт.

14

22-631

CLIP

3шт.

15

19-224

WASHER,3/8", SAE

3/8

4шт.

16

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

2шт.

17

31-2242

GROMMET

2шт.

18

20-1678T1

HARNESS

SWITCH WIRE HARNESS

1шт.

19

31-1346

CLIP

1шт.
