(02-12) - TRANSMISSION ELECTRICAL

Запчасти Case IH 9170 (02-12) - TRANSMISSION ELECTRICAL (06) - ELECTRICAL

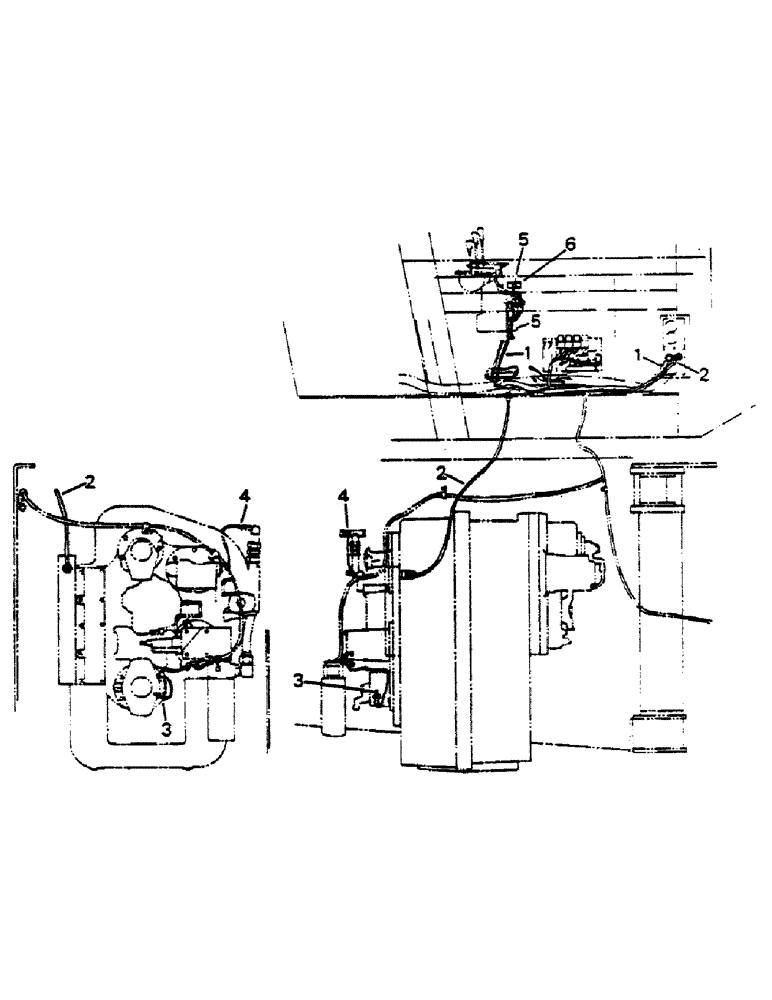

Схема запчастей Case IH 9170 - (02-12) - TRANSMISSION ELECTRICAL (06) - ELECTRICAL
4
1
2
5
5
2
4
6
3
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

20-1832T6

HARNESS

TRANSMISSION CONSOLE HARNESS

1шт.

2

20-2475T1

HARNESS

TRANSMISSION HARNESS (20-1622T3)

1шт.

Old part must not be used. Part is defective or inadequate. Scrap or return old part.

1шт.

3

20-1912T1

MAGNET

IC SENSOR

1шт.

4

47-4181

IGNITION SWITCH

OIL TEMP SWITCH

1шт.

5

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

2шт.

6

22-823

MOUNT

BACKET MOUNT

1шт.
