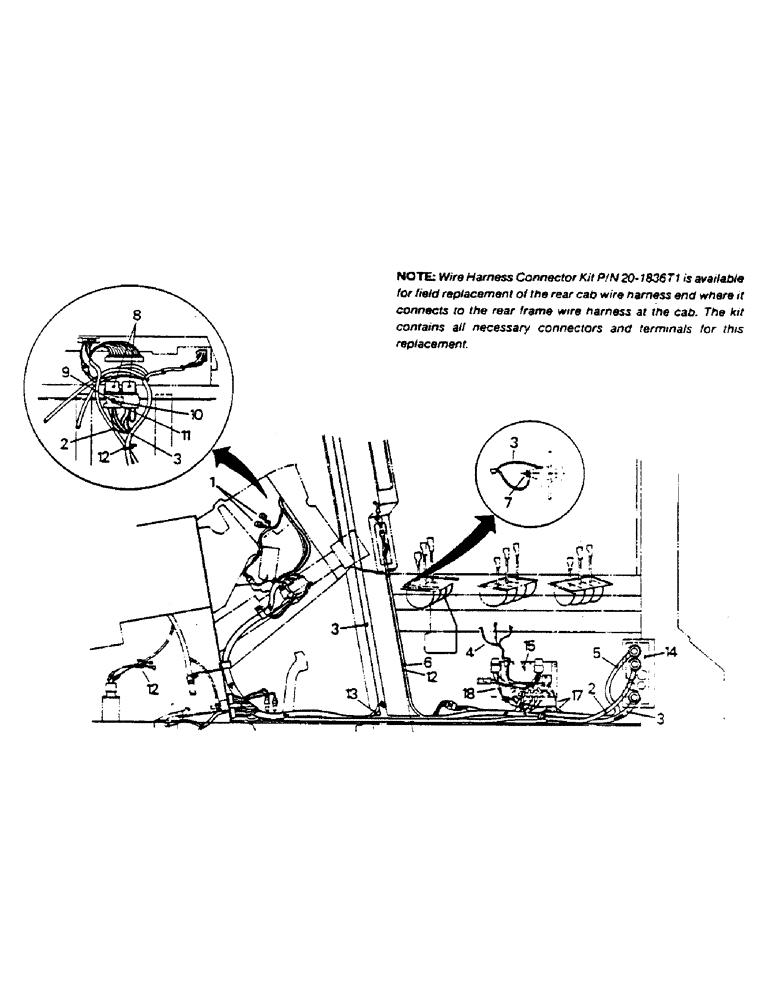

Запчасти Case IH 9170 (02-09) - CAB ELECTRICAL (06) - ELECTRICAL

1

22-738

DIODE

3шт.

2

20-1599T1

HARNESS

DASH DISPLAY WIRE HARNESS

1шт.

3

20-1624T8

HARNESS

MAIN CAB WIRE HARNESS

1шт.

4

20-1584T1

HARNESS

CONSOLE LAMP WIRE HARNESS

1шт.

5

20-2045T2

HARNESS

REAR CAB WIRE HARNESS

1шт.

Wire Harness Connector Kit P/N 20-1836T1 is available for field replacement of the rear cab wire harness end where it connects to the rear frame wire harness at the cab. The kit contains all necessary connectors and terminals for this replacement.

1шт.

6

22-823

MOUNT

BACK MOUNT

2шт.

7

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

KEPS NUT, #8 UNC G-A

1шт.

8

1-7877

RELAY

2шт.

9

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

10

19-297

LOCK WASHER,#10

Washer, Lock, #10

1шт.

11

19-567

NUT,#10-24

#10 UNC G-B

1шт.

12

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, (Not shown) 3/16" x 7 1/4"

9шт.

13

20-1457T1

HARNESS

CAB POWER WIRE HARNESS

1шт.

14

ELECTRONIC CONTROL CENTER ASSY (See Fig. 2-14)

1шт.

15

INSTRUMENT COMPONENT ASSY (See Fig. 2-15)

1шт.

16

20-2264T1

HARNESS

AIR SEAT WIRE HARNESS

1шт.

17

20-226T51

RELAY WIRE HARNESS

1шт.
