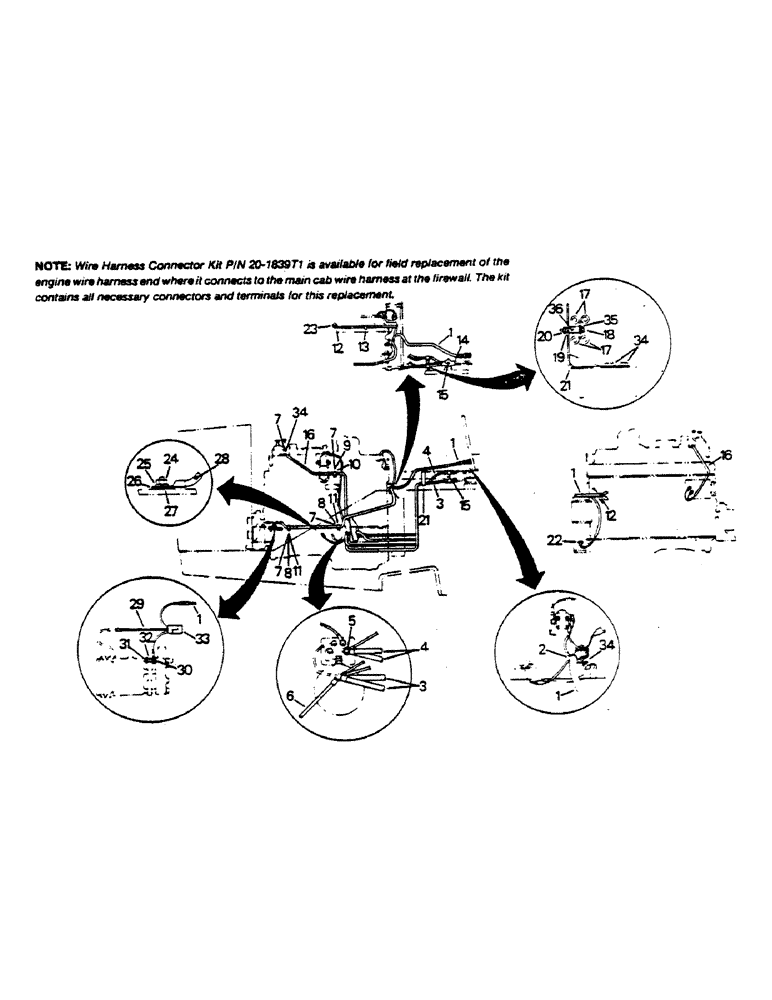

Запчасти Case IH 9170 (02-01) - ENGINE ELECTRICAL, CAT 3406 ENGINE (06) - ELECTRICAL

1

20-2368T1

HARNESS

ENGINE WIRE HARNESS

1шт.

2

22-632

CLIP

1шт.

3

20-2285T2

CABLE

BATTERY CABLE

1шт.

4

20-2284T2

CABLE

BATTERY CABLE

1шт.

5

20-2262T1

NUT

SEAL

1шт.

6

20-2164T1

HARNESS

GROUND WIRE

1шт.

7

22-631

CLIP

4шт.

8

19-876

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

CAPSCREW, 5/16 UNC x 1/2 G-5

2шт.

9

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 UNC x 3/4 G-5

1шт.

10

19-107

WASHER

3/8

1шт.

11

19-106

WASHER,5/16", SAE

5/16

2шт.

12

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

2шт.

13

31-1862

CLAMP

1шт.

14

1-7818

CABLE

TIE

2шт.

15

1-6885

BOOT

TERMINAL BOOT

1шт.

16

20-2365T1

HARNESS

ALT WIRE HARNESS

1шт.

17

32-161

COLLAR CLAMP

CLAMP

4шт.

18

19-720

BOLT,1/4" - 20 x 3/4"

CAPSCREW, 1/4 UNC x 2-1/4 G-5

1шт.

19

19-115

LOCK WASHER,1/4"

1/4"

1шт.

20

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

1шт.

21

90-3717T1

BRACKET

1шт.

22

20-2357T1

SENSOR

MAGNETIC PICKUP

1шт.

23

20-1676T1

SWITCH

WATER TEMP SWITCH & SENDER

1шт.

24

19-81

NUT,1/2"-13, G5

1/2 UNC G-B

1шт.

25

19-119

LOCK WASHER,1/2"

1/2"

1шт.

26

19-711

WASHER,5/8", SAE

5/8

1шт.

27

19-517

LOCK WASHER,Ext Tooth, 5/8"

5/8

1шт.

28

22-33

CABLE

STARTER GROUND CABLE

1шт.

29

20-2415T1

HARNESS

SUPPRESSOR DIODE HARNESS

1шт.

30

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 UNC x 1 G-5

1шт.

31

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

1шт.

32

19-243

LOCK WASHER,Ext Tooth, 3/8"

3/8

1шт.

33

22-738

DIODE

1шт.

34

NAP

EXISTING HARDWARE

1шт.

35

19-105

WASHER,1/4", SAE

1/4

1шт.

36

50-2955T1

SPACER

1шт.
