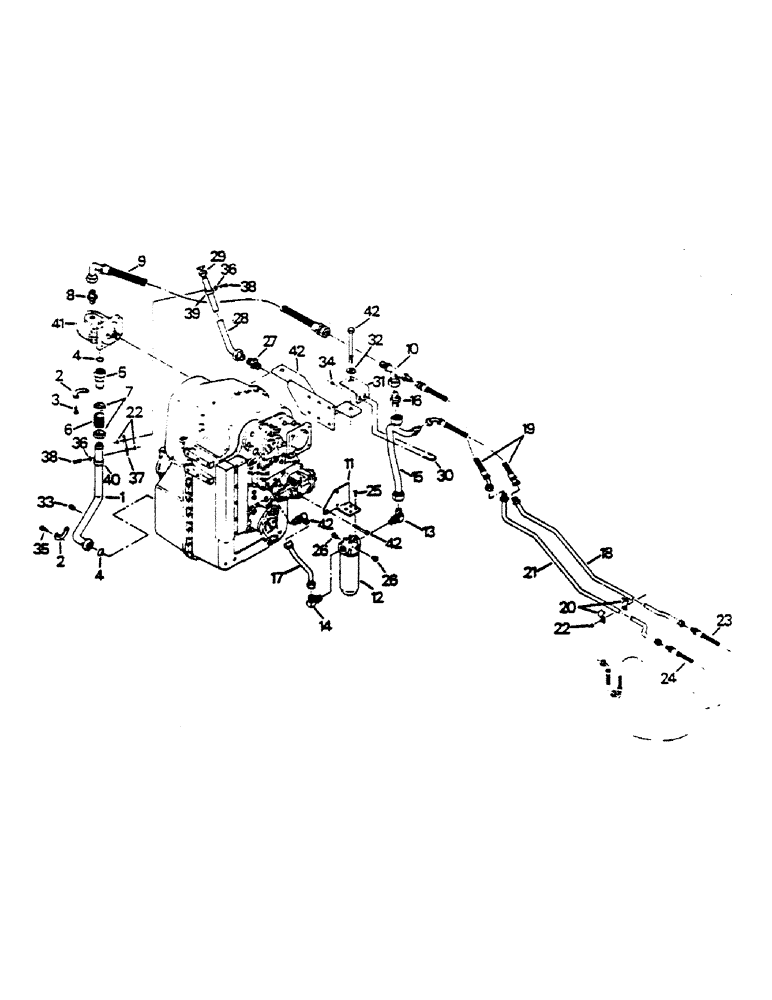

Запчасти Case IH 9170 (04-32) - TRANSMISSION LUBE SYSTEM (04) - Drive Train

1

90-6609T2

TUBE,1.5" OD

1шт.

2

31-1910

COUPLING FLANGE

SPLIT FLANGE, 1-1/4

4шт.

3

19-33

BOLT,7/16" - 14 x 1 1/4", Gr 5

CAPSCREW, 7/16 UNC x 1-1/4 G-5

4шт.

4

31-1925

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

5

31-2640

ADAPTER

1шт.

6

1-4571

HOSE

1шт.

7

31-1283

MOUNTING CLIP

CLAMP

2шт.

8

1-4144

HYD CONNECTOR,1 5/8"-12, 37 Degree x 1 5/16"-12, O-Ring

ADAPTER (16), 1-5/16-12 o-ring boss x 1-5/8-12 JIC 37 degree male

1шт.

9

31-2711

HOSE ASSY.

HOSE ASSY

1шт.

10

90-6581T1

TUBE,1.25" OD x 7.03" L

1шт.

11

90-6523T1

BRACKET

FILTER BRACKET

1шт.

12

90-6524T91

FILTER ASSY

1шт.

90-6602T1

HYDRAULIC OIL FILTER

ELEMENT

1шт.

13

31-2250

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/16"-12, O-Ring

(16), 1-5/16-12 o-ring boss x 1-5/8-12 JIC 37 degree male

1шт.

14

31-479

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

(16), 1-5/16-12 o-ring boss x 1-5/16-12 JIC 37 degree male

1шт.

15

90-6582T1

TUBE,1.25" OD

1шт.

16

90-6578T1

VALVE POPPET

CHECK VALVE

1шт.

17

90-6583T1

TUBE,1" OD

1шт.

18

90-6676T1

TUBE,.75" OD

1шт.

19

31-2635

HOSE ASSY.

HOSE

2шт.

20

2-4088T1

CLAMP

12шт.

21

90-6677T1

TUBE,0.75" OD x 68.75" L

1шт.

22

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

8шт.

23

31-2709

HOSE

1шт.

24

31-2710

HOSE ASSY.

HOSE

1шт.

25

19-5348

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

CAPSCREW, 3/8 UNC x 7/8 G-5

4шт.

26

31-1664

PLUG

(With o-ring) (5), 1/2-20 o-ring boss

2шт.

27

31-401

HYD CONNECTOR,1 5/8"-20, 37 Degree x 1 5/8"-12, O-Ring

FITTING (20), 1-5/8-12 o-ring boss x 1-5/8-12 JIC 37 degree male

1шт.

28

90-6545T1

TUBE,1.25" OD

1шт.

29

90-6546T1

DIPSTICK

1шт.

30

19-153

U-BOLT

5/16 UNC x 1-3/8 x 2-1/2

1шт.

31

90-6703T1

BRACKET

1шт.

32

19-112

WASHER,3/4"

3/4

1шт.

33

9403369

CAP,37 Degree, 7/16"-20

NUT, 7/16-20 JIC 37 degree female

1шт.

34

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

2шт.

35

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

CAPSCREW, 3/8 UNC x 1-1/2 G-5

4шт.

36

19-107

WASHER

3/8

2шт.

37

90-6588T1

SUPPORT

STRAP

1шт.

38

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 UNC x 3/4 G-5

2шт.

39

31-1348

CLAMP

1шт.

40

31-1349

MOUNTING CLIP

CLAMP

1шт.

41

TRANS LUBE PUMP ASSY (See Fig. 4-30)

1шт.

42

EXISTING ITEMS

1шт.
