Запчасти Case IH 9170 (04-31) - TRANSMISSION RANGE SELECTOR VALVE ASSEMBLY (04) - Drive Train

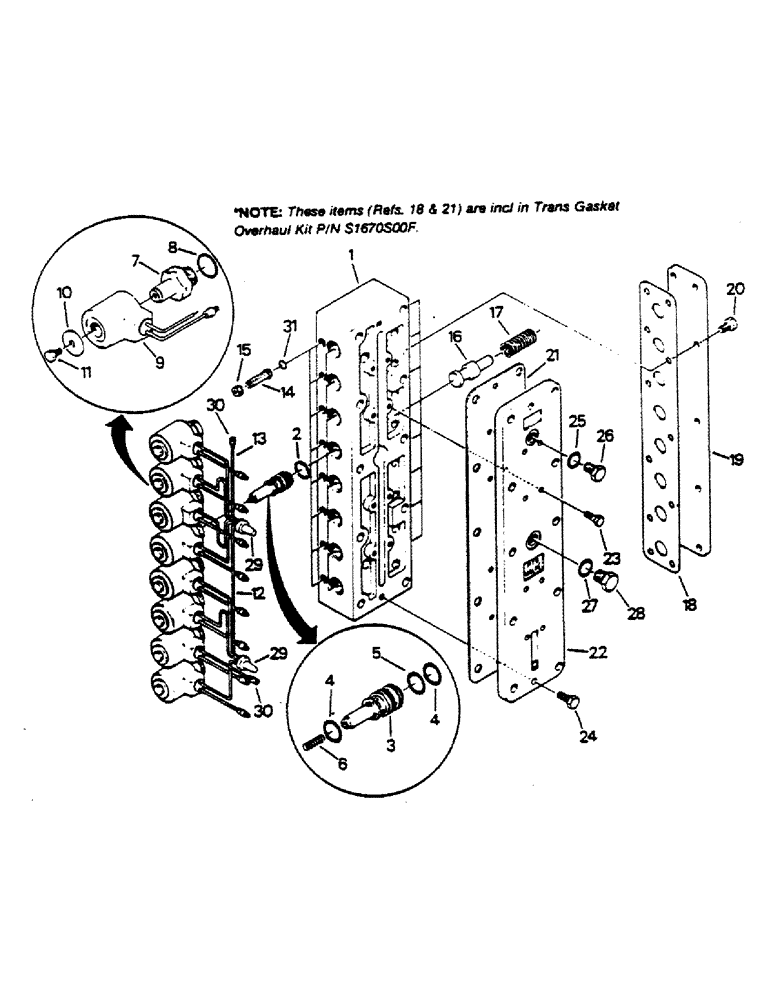

Схема запчастей Case IH 9170 - (04-31) - TRANSMISSION RANGE SELECTOR VALVE ASSEMBLY (04) - Drive Train
18
23
19
8
1
28
30
17
20
12
4
31
8
22
13
14
11
30
2
3
21
26
15
27
10
7
4
29
16
5
9
25
24
29

Артикул

Название

Примечание

Количество

S9000S00F

CHECK VALVE

RANGE SELECTOR VALVE ASSY, Includes: Ref. 1 - 31

1шт.

1

S9050S00F

VALVE BODY

1шт.

2

S9090S00F

RING, SNAP

SNAP RING

8шт.

S9300S00F

SOLENOID

ASSY, Includes: Ref. 3 - 11

8шт.

371737A1R

REMAN-SOLENOID

Reman for New PN S9300S00F

8шт.

371737A1C

CORE-SOLENOID

Return Number

8шт.

3

S9180S00F

VALVE

PILOT VALVE ASSY

8шт.

3

371737A1R

REMAN-SOLENOID

Reman for New PN S9180S00F

8шт.

3

371737A1C

CORE-SOLENOID

Return Number

8шт.

4

S9310S00F

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

16шт.

5

S9320S00F

O-RING

8шт.

6

S9330S00F

SPRING

8шт.

7

S9340S00F

PLUG

SOLENOID PLUG

8шт.

8

S9350S00F

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

8шт.

9

S9070S00F

SOLENOID

& WIRE ASSY

8шт.

9

371737A1R

REMAN-SOLENOID

Reman for New PN S9070S00F

8шт.

9

371737A1C

CORE-SOLENOID

Return Number

8шт.

10

S9360S00F

WASHER

8шт.

11

S9370S00F

BOLT

8шт.

12

S9130S00F

ELECTRICAL WIRE

WIRE

1шт.

13

S9120S00F

ELECTRICAL WIRE

WIRE W/TERMINAL

1шт.

14

S9060S00F

SCREEN

FILTER SCREEN

8шт.

15

S9080S00F

PLUG

8шт.

16

S9040S00F

VALVE

SELECTOR VALVE

8шт.

17

S9010S00F

SPRING

8шт.

18

S9030S00F

GASKET

1шт.

These refs. (Refs. 18 & 21) are included in Trans Gasket Overhaul Kit P/N S1670S00F.

1шт.

19

S9020S00F

PLATE

VALVE SIDE PLATE

1шт.

20

SM8180820

CAPSCREW

11шт.

21

S9110S00F

GASKET

1шт.

These refs. (Refs. 18 & 21) are included in Trans Gasket Overhaul Kit P/N S1670S00F.

1шт.

22

S9100S00F

COVER

VALVE COVER

1шт.

23

SM8120620

CAPSCREW

8шт.

24

SM8120825

BOLT

CAPSCREW

2шт.

25

S1040S00F

O-RING

1шт.

26

S1030S00F

PLUG

(Includes ref. 25)

1шт.

27

S1320S00F

O-RING

1шт.

28

S1390S00F

PLUG

(Includes ref. 27)

1шт.

29

S9140S00F

TERMINAL CONNECTOR

TERMINAL

2шт.

30

S9160S00F

TERMINAL CONNECTOR

TERMINAL

2шт.

31

S9170S00F

O-RING

8шт.
