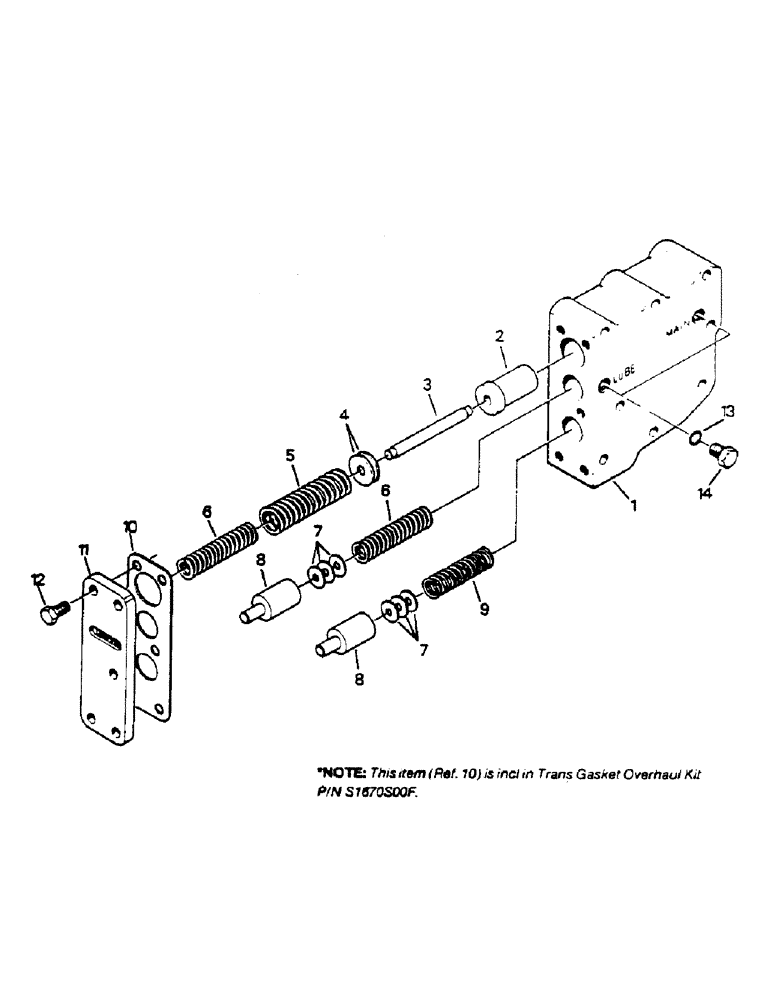

Запчасти Case IH 9170 (04-29) - TRANSMISSION REGULATOR VALVE ASSEMBLY (04) - Drive Train

S7000S00F

VALVE

REGULATOR VALVE ASSY, Includes: Ref. 1 - 14

1шт.

1

S7040S00F

VALVE BODY

REGULATOR VALVE BODY

1шт.

2

S703SS00F

REGULATOR VALVE

1шт.

3

S7020S00F

STEM

PRESSURE ROD

1шт.

4

S7010S00F

SHIM,.039" Thk

1шт.

5

S7120S00F

SPRING

1шт.

6

S7050S00F

SPRING

2шт.

7

S7080S00F

SHIM,.031" Thk

1шт.

8

S7060S00F

VALVE

LUBE VALVE

2шт.

9

S7070S00F

SPRING

1шт.

10

S7090S00F

GASKET

1шт.

This ref. (Ref. 10) is included in Trans Gasket Overhaul Kit P/N S1670S00F.

1шт.

11

S7110S00F

COVER

VALVE BODY COVER

1шт.

12

SM8120820

BOLT

CAPSCREW

5шт.

13

S1040S00F

O-RING

2шт.

14

S1030S00F

PLUG

(Includes ref. 13)

2шт.
