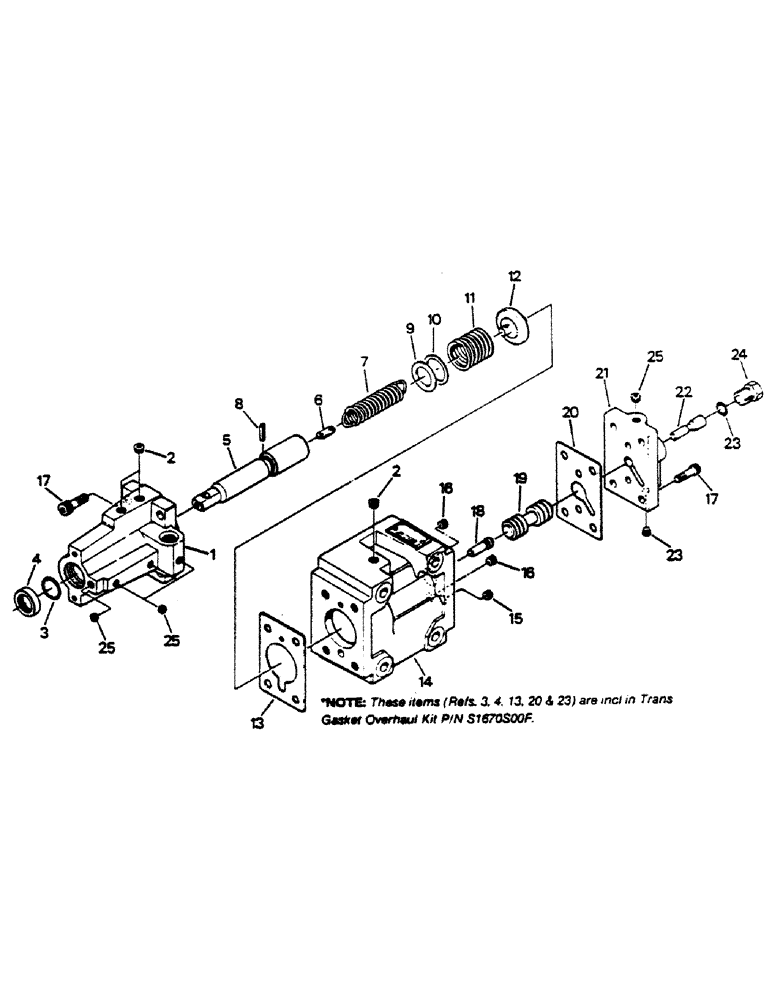

Запчасти Case IH 9170 (04-28) - TRANSMISSION CLUTCH CONTROL VALVE ASSEMBLY (04) - Drive Train

S6000S00F

VALVE

CLUTCH CONTROL VALVE ASSY, Includes: Ref. 1 - 25

1шт.

1

S6090S00F

HOUSING

CONTROL STEM COVER

1шт.

2

STX99700F

PLUG

3шт.

3

S6120S00F

O-RING

1шт.

These refs. (Refs. 3, 4, 13, 20 & 23) are included in Trans Gasket Overhaul Kit P/N S1670S00F.

1шт.

4

S6110S00F

OIL SEAL

1шт.

These refs. (Refs. 3, 4, 13, 20 & 23) are included in Trans Gasket Overhaul Kit P/N S1670S00F.

1шт.

5

S6100S00F

HOUSING

CONTROL STEM

1шт.

6

S6080S00F

LINK, CONNECTING

LINK

1шт.

7

S6210S00F

SPRING

1шт.

8

S6130S00F

PIN, ROLL

ROLL PIN

1шт.

9

S6200S00F

SPACER

1шт.

10

S6140S00F

SHIM,1.0mm Thk

(30 mm) 1.0mm Thk

1шт.

11

S6150S00F

SPRING

1шт.

12

S6060S00F

SPRING SEAT

1шт.

13

S6070S00F

GASKET

1шт.

These refs. (Refs. 3, 4, 13, 20 & 23) are included in Trans Gasket Overhaul Kit P/N S1670S00F.

1шт.

14

S6050S00F

HOUSING

MODULATOR BODY

1шт.

15

S6240S00F

ORIFICE

1шт.

16

S6260S00F

SCREW

ORIFICE

2шт.

17

S6260S00F

SCREW

CAPSCREW

8шт.

18

S6160S00F

PIN

1шт.

19

S6040S00F

SPOOL

MODULATOR SPOOL

1шт.

20

S6030S00F

GASKET

1шт.

These refs. (Refs. 3, 4, 13, 20 & 23) are included in Trans Gasket Overhaul Kit P/N S1670S00F.

1шт.

21

S6020S00F

COVER

VALVE COVER

1шт.

22

S6010S00F

SPOOL

REDUCING SPOOL

1шт.

23

S6180S00F

O-RING

1шт.

These refs. (Refs. 3, 4, 13, 20 & 23) are included in Trans Gasket Overhaul Kit P/N S1670S00F.

1шт.

24

S6170S00F

PLUG

ASSY

1шт.

25

S6220S00F

PLUG

6шт.
