Запчасти Case IH 9170 (04-23) - 7 INCH CLUTCH PACK ASSEMBLY, INPUT (04) - Drive Train

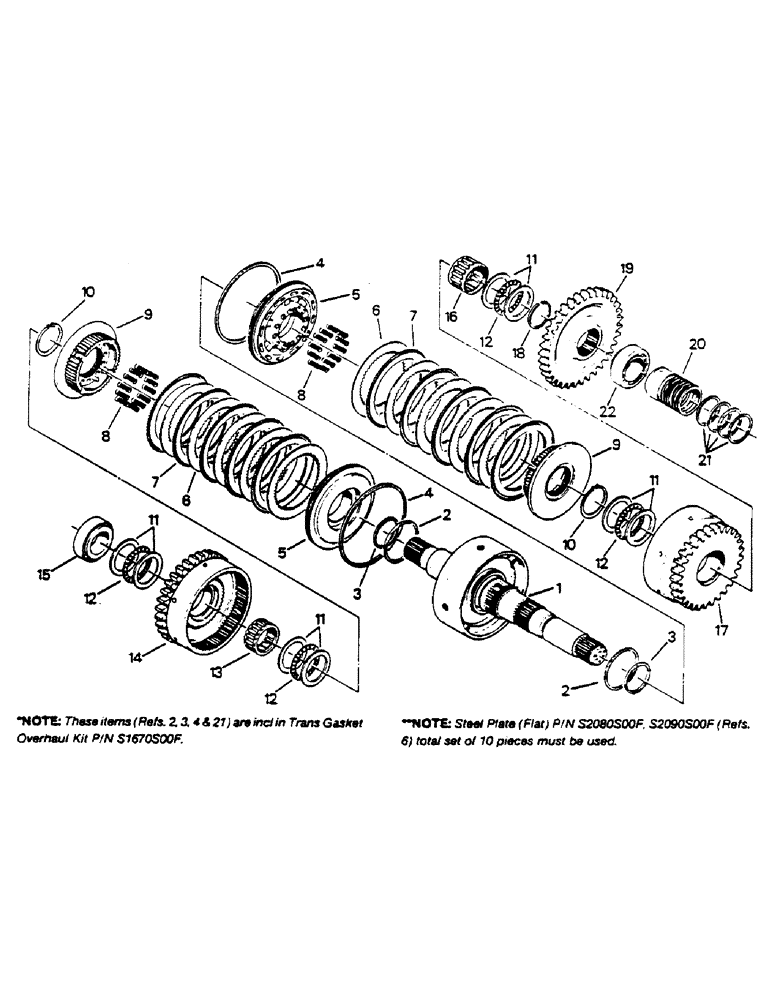

Схема запчастей Case IH 9170 - (04-23) - 7 INCH CLUTCH PACK ASSEMBLY, INPUT (04) - Drive Train
20
5
5
10
3
16
4
21
10
8
9
2
14
6
7
11
12
2
8
18
15
7
8
12
11
4
12
17
13
11
3
9
12
1
22
19

Артикул

Название

Примечание

Количество

S2000S00A

CLUTCH HOUSING

7" CLUTCH PACK ASSY (Input), Includes: Ref. 1 - 21

1шт.

P/N S2000S00A - THIS PACK ASSEMBLE HAS A SPUR CUT (DRUM) SHAFT ASSEMBLE. IT WAS USED IN EARLY STEIGER SERIES TRACTORS. WE CHANGED TO A HELICAL CUT (DRUM) SHAFT ASSEMBLE AND MATING GEARS ON LATER TRACTORS. P/N FOR HELICAL CUT PACK ASSEMBLE IS S2000S01A. REFER TO SERVICE BULLETIN NTR SB 027 91 FOR MORE INFO.

1шт.

1

S2900S00F

SHAFT ASSY.

DRUM SHAFT ASSY

1шт.

2

S2620S00F

RING

PISTON RING

2шт.

These refs. (Refs. 2, 3, 4 & 21) are included in Trans Gasket Overhaul Kit P/N S1670S00F.

1шт.

3

S2610S00F

RING

PISTON RING

2шт.

These refs. (Refs. 2, 3, 4 & 21) are included in Trans Gasket Overhaul Kit P/N S1670S00F.

1шт.

4

S2630S00F

RING

SEALING RING

2шт.

These refs. (Refs. 2, 3, 4 & 21) are included in Trans Gasket Overhaul Kit P/N S1670S00F.

1шт.

5

S2180S00F

PISTON

CLUTCH PISTON

2шт.

6

S2080S00F

CLUTCH DISC,2.4mm Thk

STEEL PLATE (Flat 2.4 MM)

1шт.

Steel Plate (Flat) P/N S2080S00F, S2090S00F (Refs. 6) total set of 10 pieces must be used.

1шт.

S2090S00F

CLUTCH DISC,2.1mm Thk

STEEL PLATE (Flat 2.1 MM)

1шт.

Steel Plate (Flat) P/N S2080S00F, S2090S00F (Refs. 6) total set of 10 pieces must be used.

1шт.

7

S2050S00F

LARGE PLATE

FACED PLATE

10шт.

8

S2640S00F

SPRING

RETURN SPRING

24шт.

9

S2850S00F

HUB

CLUTCH HUB

2шт.

10

S2100S00F

RING, SNAP

SNAP RING

2шт.

11

S2200S00F

BEARING WASHER

THRUST WASHER

8шт.

12

S2230S00F

BEARING

THRUST BEARING

4шт.

13

S2030S00F

BEARING, ROLLER

ROLLER BEARING

1шт.

14

S2040S00F

PINION

DRIVE GEAR

1шт.

15

1-3296

BEARING CUP,3.7402" OD x 0.9252"

1шт.

1-3297

ROLLER BEARING,2.1654" ID x 1.1417"

BEARING CONE

1шт.

16

S2210S00F

BEARING, ROLLER

NEEDLE BEARING

1шт.

17

S2280S00F

PINION

DRIVE GEAR

1шт.

18

S2240S00F

RING, SNAP

RETAINING RING

1шт.

19

S2270S00F

PINION

INPUT GEAR

1шт.

20

S2410S00F

CARRIER FLANGE SEAL

PISTON RING CARRIER

1шт.

21

S2250S00F

SEALING RING

SEALING RING

4шт.

These refs. (Refs. 2, 3, 4 & 21) are included in Trans Gasket Overhaul Kit P/N S1670S00F.

1шт.

22

S0080S00A

BEARING

1шт.

Ref. #22 Replaced by P/N 1-3296(cup) & 1-3297(cone) which subs to 529208R1 & 529207R1.

1шт.
