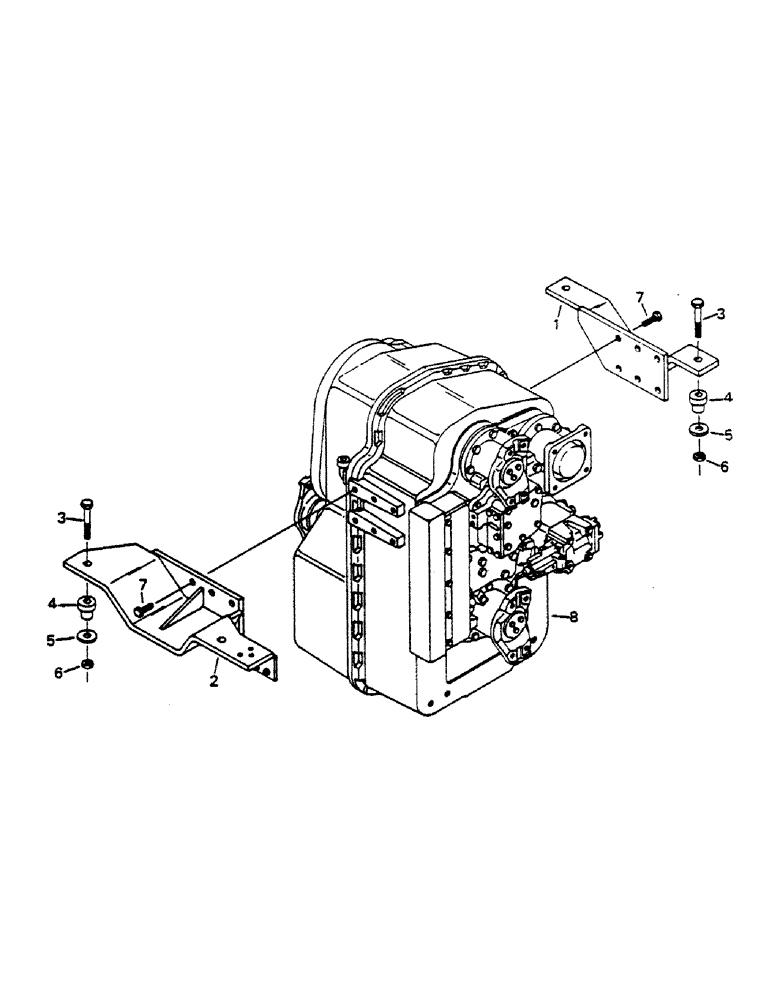

Запчасти Case IH 9170 (04-17) - TRANSMISSION MOUNTING (04) - Drive Train

1

90-6652T1

MOUNTING PARTS

TRANS MOUNT (Left)

1шт.

2

90-6653T1

MOUNTING PARTS

TRANS MOUNT (Right)

1шт.

3

19-677

BOLT,Hex, 3/4" - 10 x 3 3/4", Gr 5

CAPSCREW, 3/4 UNC x 3-3/4 G-5

4шт.

4

47-4172

SHOCK ABSORBER

RUBBER MOUNT

4шт.

5

19-5781

WASHER

3/4 x 2-3/4 x 3/16 thk

4шт.

6

19-85

LOCK NUT

LOCK NUT, 3/4 UNC G-B

4шт.

7

19-59

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

CAPSCREW, 5/8 UNC x 1-1/2 G-5

12шт.

8

90-6563T91

TRANSMISSION

TRANS ASSY (See Fig., Serial Range: 4-18-4-21)

1шт.
