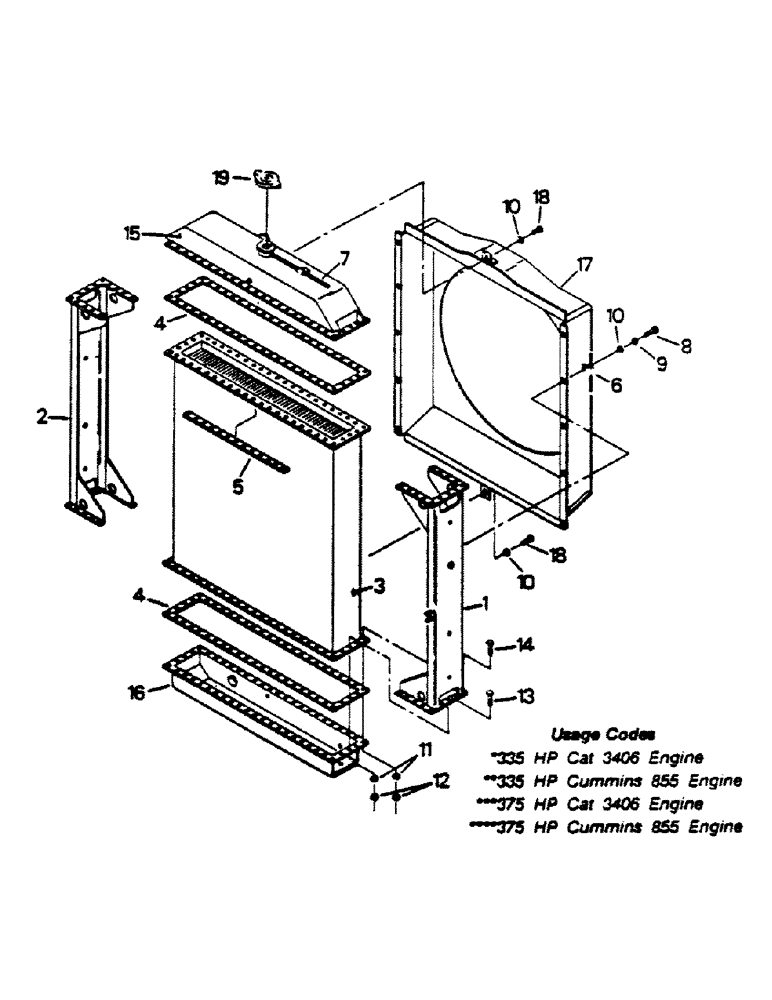

Запчасти Case IH 9170 (04-16) - RADIATOR ASSEMBLY (04) - Drive Train

90-1713T92

RADIATOR

ASSY, Includes: Ref. 1 - 20

1шт.

335 HP Cat 3406 Engine

1шт.

90-3516T92

RADIATOR

ASSY, Includes: Ref. 3 and P/N 90-3514T2

1шт.

335 HP Cummins 855 Engine

1шт.

90-1054T92

RADIATOR

ASSY, Includes: Ref. 1 - 20

1шт.

375 HP Cat 3406 Engine

1шт.

90-3517T92

RADIATOR

ASSY, Includes: Ref. 1 - 20

1шт.

375 HP Cummins 855 Engine

1шт.

1

90-1518T2

FRAME

RADIATOR FRAME (Left)

1шт.

2

90-1517T2

FRAME

RADIATOR FRAME (Right)

1шт.

3

90-2359T1

CORE

(3" thick)

1шт.

335 HP Cat 3406 Engine

1шт.

335 HP Cummins 855 Engine

1шт.

90-1534T1

CORE

(4-1/2 thick)

1шт.

375 HP Cat 3406 Engine

1шт.

375 HP Cummins 855 Engine

1шт.

4

90-1529T1

GASKET

HEADER GASKET

2шт.

5

90-1530T1

BAR

HEADER BAR

4шт.

6

31-2173

CLIP

CLAMP

2шт.

7

31-1260

HOSE,0.25" ID x 57.00"

1шт.

8

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

TAPPING SCREW, 1/4 UNC x 3/4

10шт.

9

19-115

LOCK WASHER,1/4"

1/4"

10шт.

10

19-223

WASHER,1/4"

1/4

12шт.

11

19-116

LOCK WASHER,5/16"

5/16"

108шт.

12

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

108шт.

13

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW, 5/16 UNC x 1 G-5

100шт.

14

19-234

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

CAPSCREW, 5/16 UNC x 1-1/4 G-5

8шт.

15

90-1531T2

TANK

TOP TANK

1шт.

16

90-1532T1

TANK

BOTTOM TANK

1шт.

17

90-1522T2

SHROUD

(34")

1шт.

335 HP Cat 3406 Engine

1шт.

375 HP Cat 3406 Engine

1шт.

90-3514T2

SHROUD

(32")

1шт.

335 HP Cummins 855 Engine

1шт.

375 HP Cummins 855 Engine

1шт.

18

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

CAPSCREW, 1/4 UNC x 5/8 G-5

2шт.

19

10-21

CAP

RADIATOR CAP

1шт.

20

1-1055

SEALANT

RTV SEALANT (Not shown)

1шт.
