Запчасти Case IH 9170 (04-15) - RADIATOR AND HOSES, CUMMINS 855 ENGINE (04) - Drive Train

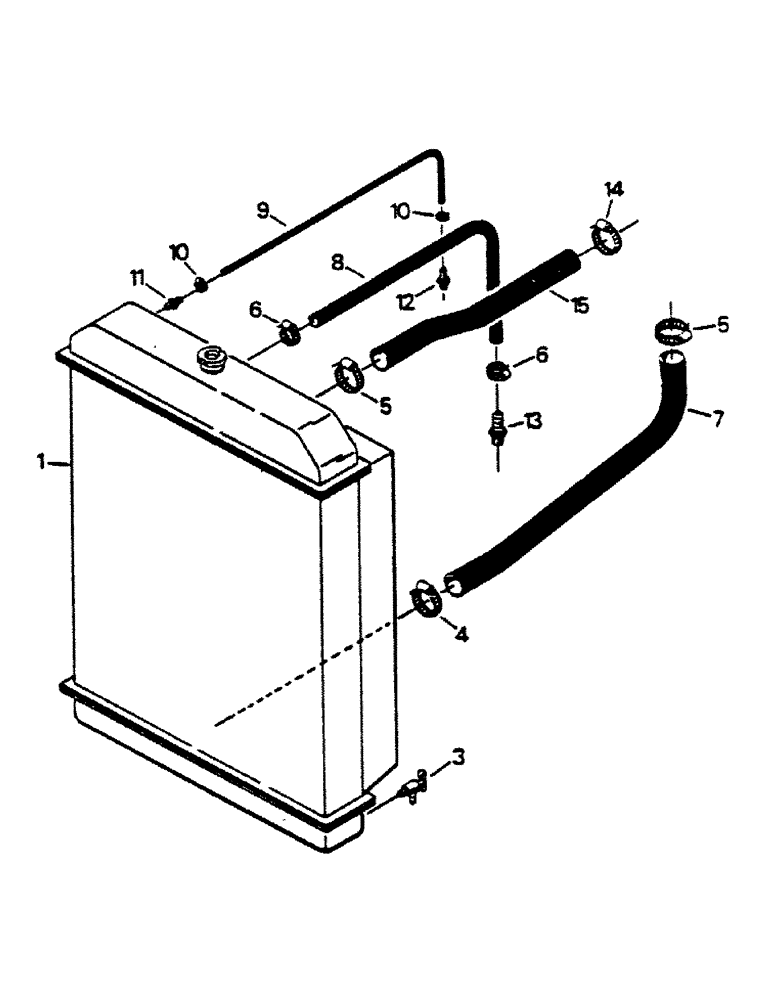

Схема запчастей Case IH 9170 - (04-15) - RADIATOR AND HOSES, CUMMINS 855 ENGINE (04) - Drive Train
14
10
12
15
3
11
8
5
13
4
5
6
10
6
4
1
9

Артикул

Название

Примечание

Количество

1

RADIATOR ASSY (See Fig. 4-16)

1шт.

3

31-159

COCK, DRAIN

DRAIN COCK, 1/4 NPT

1шт.

4

32-22

HOSE CLAMP,#52, 2.81/3.75 Type F Worm

CLAMP

1шт.

5

32-24

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP

2шт.

6

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP

2шт.

7

31-1510T1

RADIATOR HOSE,2.500" ID, 3.00" ID x 28.31", SAE 20R4

2.500" ID, 3.00" ID x 28.31", SAE 20R4

1шт.

8

31-1503

HOSE,1.00" ID x 28.00"

1шт.

9

31-1184

HOSE,6.4 mm ID x 914.40 mm

1шт.

10

32-29

HOSE CLAMP

CLAMP

2шт.

11

31-1186

FITTING

BARBED FITTING

1шт.

12

31-615

ROD, CONNECTING

BARBED FITTING

1шт.

13

31-248

FITTING

KING NIPPLE

1шт.

14

32-25

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP

1шт.

15

31-1511

RADIATOR HOSE,2.25" ID x 22.06", SAE 20R4 CLASS D2

2.25" ID x 22.06", SAE 20R4 CLASS D2

1шт.

Выбрано товаров: 14
