Запчасти Case IH 9170 (04-14) - RADIATOR AND HOSES, CAT 3406 ENGINE (04) - Drive Train

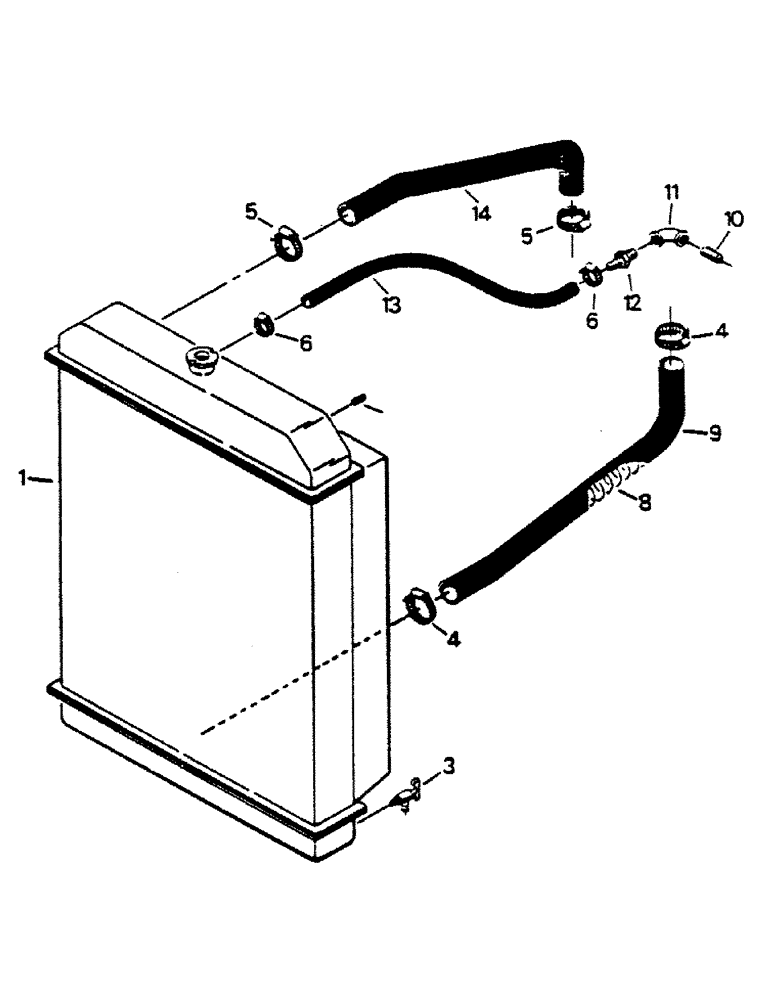

Схема запчастей Case IH 9170 - (04-14) - RADIATOR AND HOSES, CAT 3406 ENGINE (04) - Drive Train
8
9
6
4
5
3
14
13
10
1
4
11
5
12
6

Артикул

Название

Примечание

Количество

1

RADIATOR ASSY (See Fig. 4-16)

1шт.

2

19-135

CABLE TIE

(Not shown)

1шт.

3

31-159

COCK, DRAIN

DRAIN COCK, 1/4 NPT

1шт.

4

32-22

HOSE CLAMP,#52, 2.81/3.75 Type F Worm

CLAMP

2шт.

5

32-24

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP

2шт.

6

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP

2шт.

7

31-37

PLUG

PIPE PLUG, 1/4 NPT

1шт.

8

90-2289T1

SPRING

HOSE SPRING

1шт.

9

90-1516T1

RADIATOR HOSE,3.00" ID x 23.34", SAE 20R4

3.00" ID x 23.34", SAE 20R4

1шт.

10

31-275

LUBE NIPPLE

PIPE NIPPLE, 3/4 NPT

1шт.

11

31-44

ELBOW

3/4 NPT female x 3/4 NPT female

1шт.

12

31-318

HOSE

BARBED FITTING, 3/4 NPT male x 1 hose

1шт.

13

31-2360

HOSE,1.00" ID x 44.00"

1шт.

14

90-2275T1

RADIATOR HOSE,2.50" ID x 22.75", SAE 20R4

2.50" ID x 22.75", SAE 20R4

1шт.

Выбрано товаров: 14
